ENGINE 273 MPFI
145
ENGINE
•

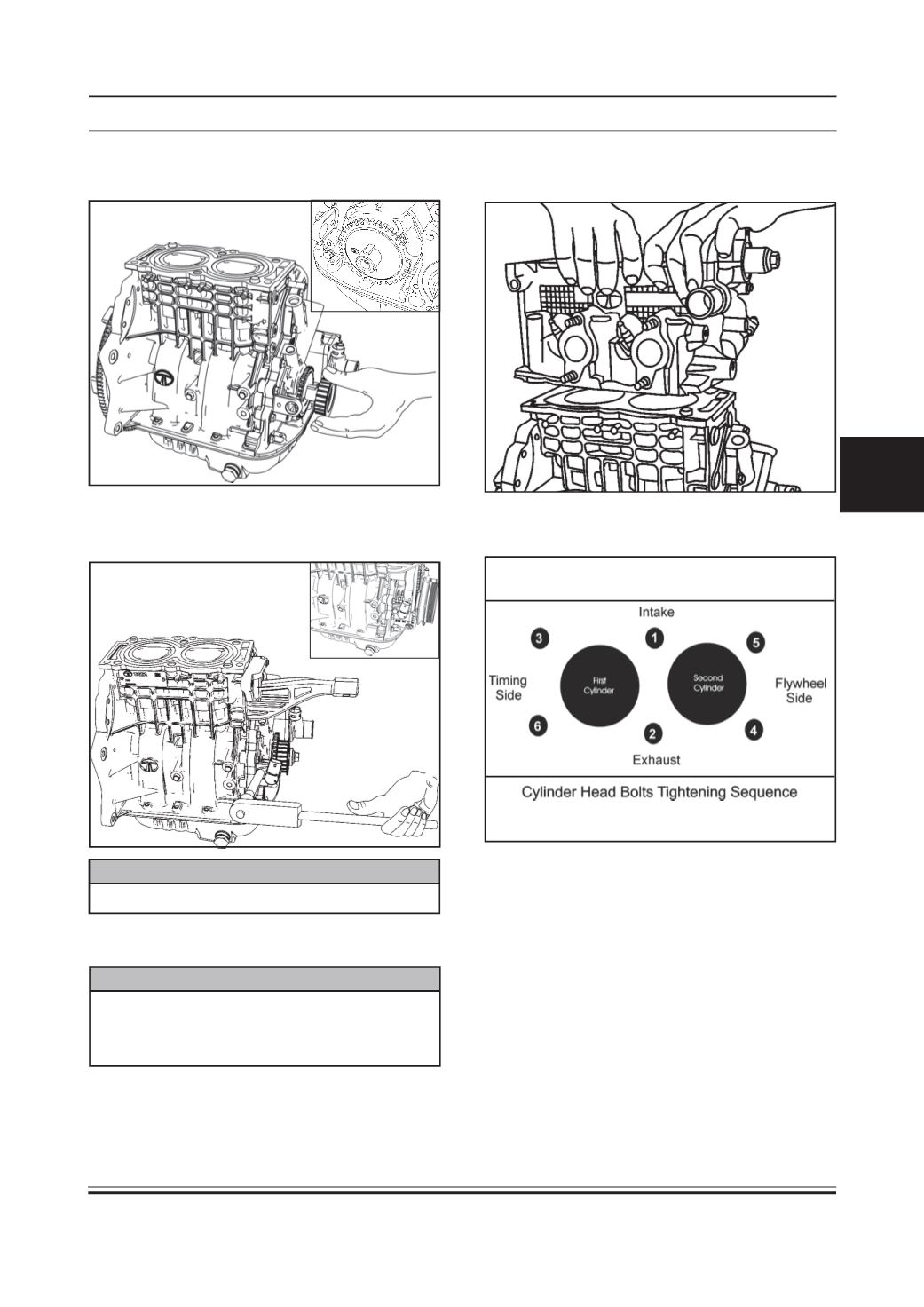

Fit the timing gear properly by locating the key on
shaft.
•
Fit the TDC sensor & measure the gap between
TDC sensor and the sensor wheel. This should be
within specified limit.
CAUTION
RPM sensor & sensor wheel gap : 1.00 ± 0.05 mm
•
Tighten the damper pulley mounting bolt to the
specified torque.
NOTE
Damper pulley :
1. Single ‘V’ for engine without AC/HVAC,
2. Double ‘V’ for engine with AC/HVAC.
•
Place the cylinder head gasket.
•
Place the cylinder head on the block.
•
Tighten the mounting bolts of the cylinder head to
the specified torque and sequence.
