BODY

793

BODY

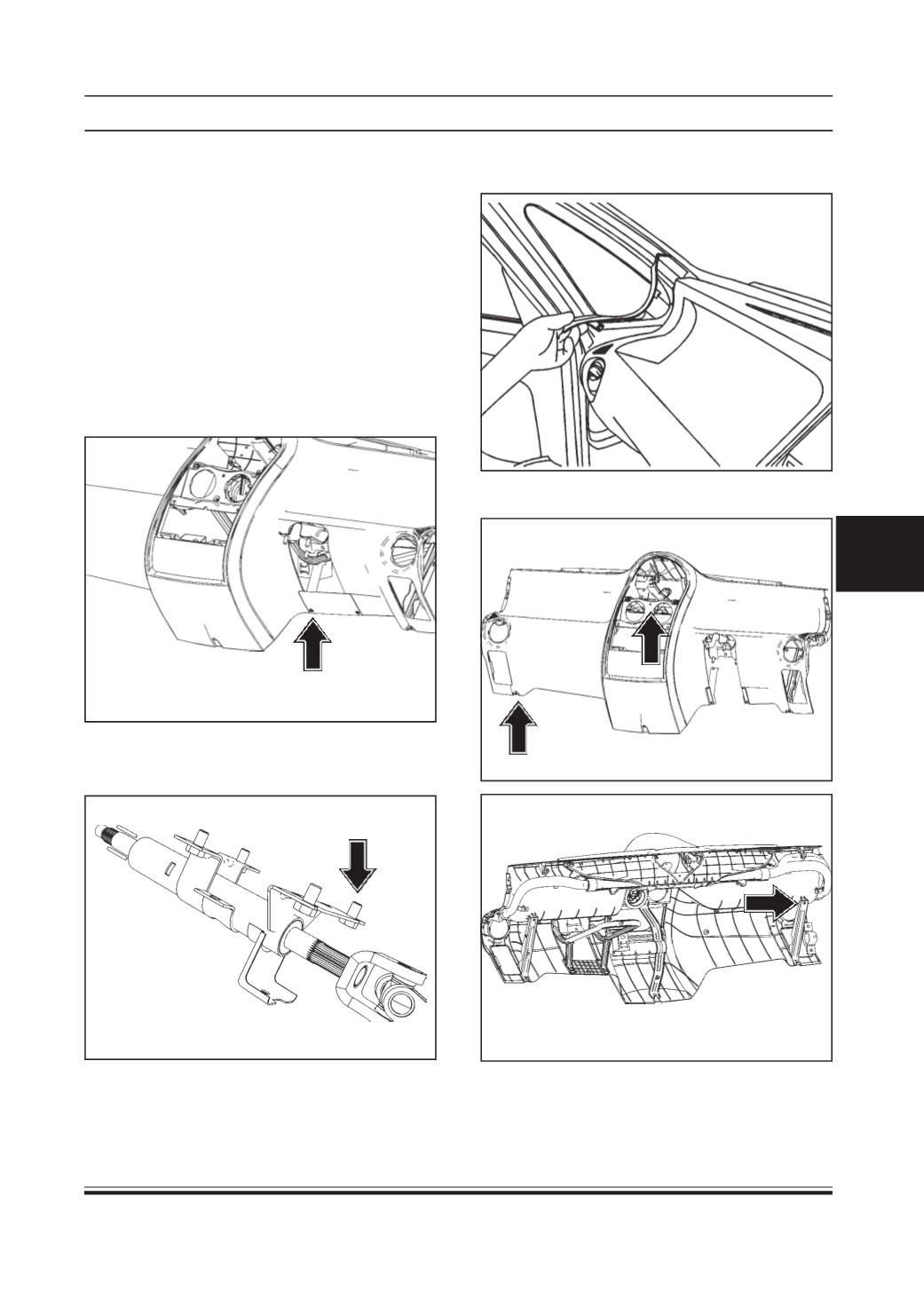

Removal

1. Disconnect battery. (Refer battery removal

procedure/Body Electrical group)

2. Remove steering wheel (Refer Steering wheel

removal procedure/Steering group)

3. Remove combi switch assembly (Refer Combi

Switch removal procedure/Body Electrical group)

4. Remove Instrument Cluster (Refer Instrument

Cluster removal procedure/Body Electrical group)

5. Remove HVAC control assembly (Refer HVAC

Control assembly removal procedure/HVAC group)

6. Remove two screws of bottom cover nacelle.

7. Remove four bolts securing steering column

assembly to the mounting bracket and carefully

rest the steering column on the floor.

8. Remove two side covers attached to the

dashboard.

9. Remove all screws securing dashboard to the body.
