NANO

790

BODY

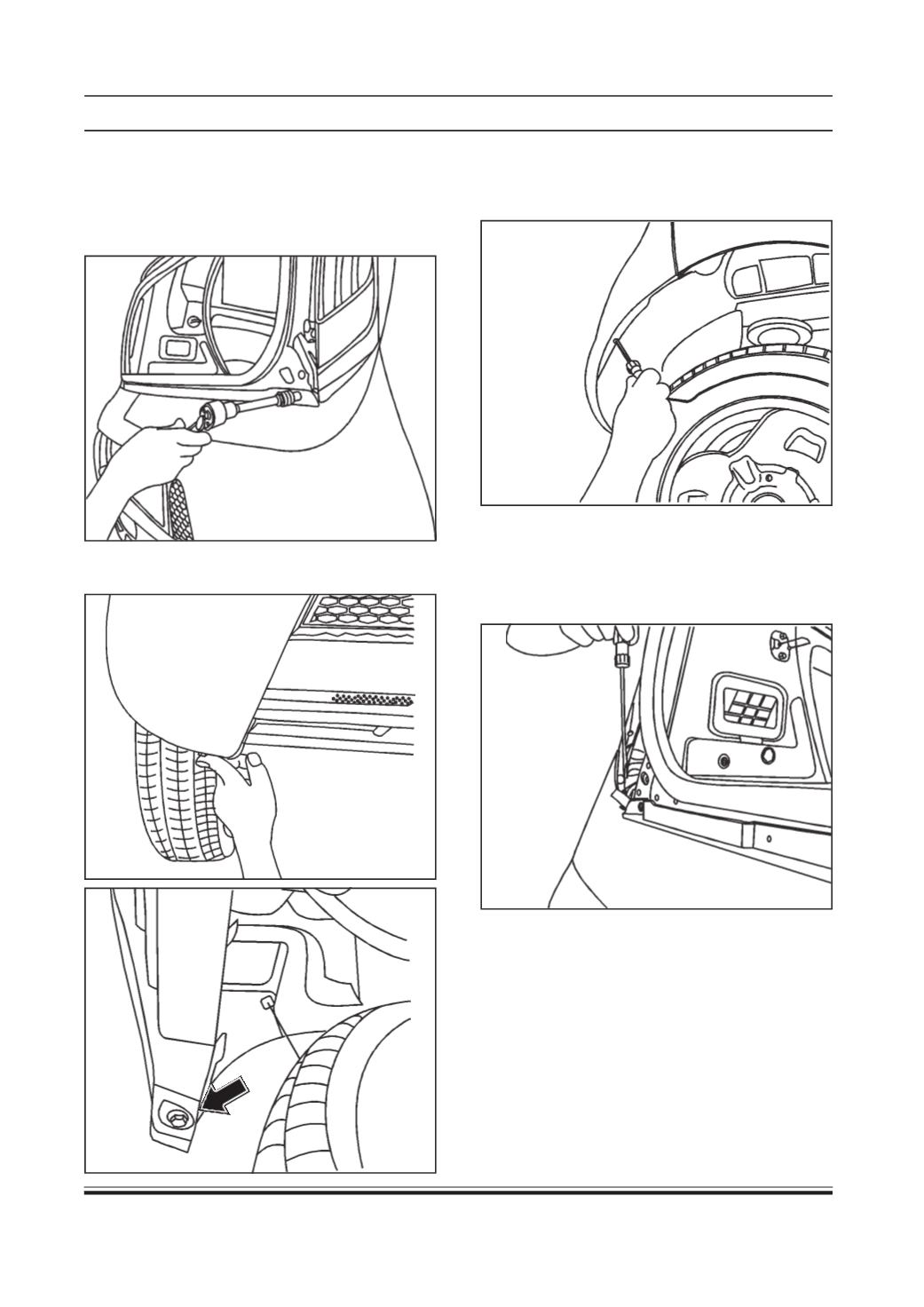

4. Remove

Rear wheel arch

as follows :

(a) Remove four screws securing wheel arch to the

body (Repeat same procedure for other side)

REAR BUMPER

Removal

1. Remove tailgate. (Refer Tailgate removal procedure)

2. Remove the bolts of rear bumper.

3. Remove the bolt located at bottom side of the

bumper (repeat same procedure for other side)

5. Remove both

Tail Lamp assemblies

(Refer Tail

lamp removal procedure/Body Electrical Group)

6. Pull out the bumper slightly and remove one bolt

located just below the tail light assembly. (Fig. 82

and 83) (Repeat same procedure for other side)
