BRAKE SYSTEM

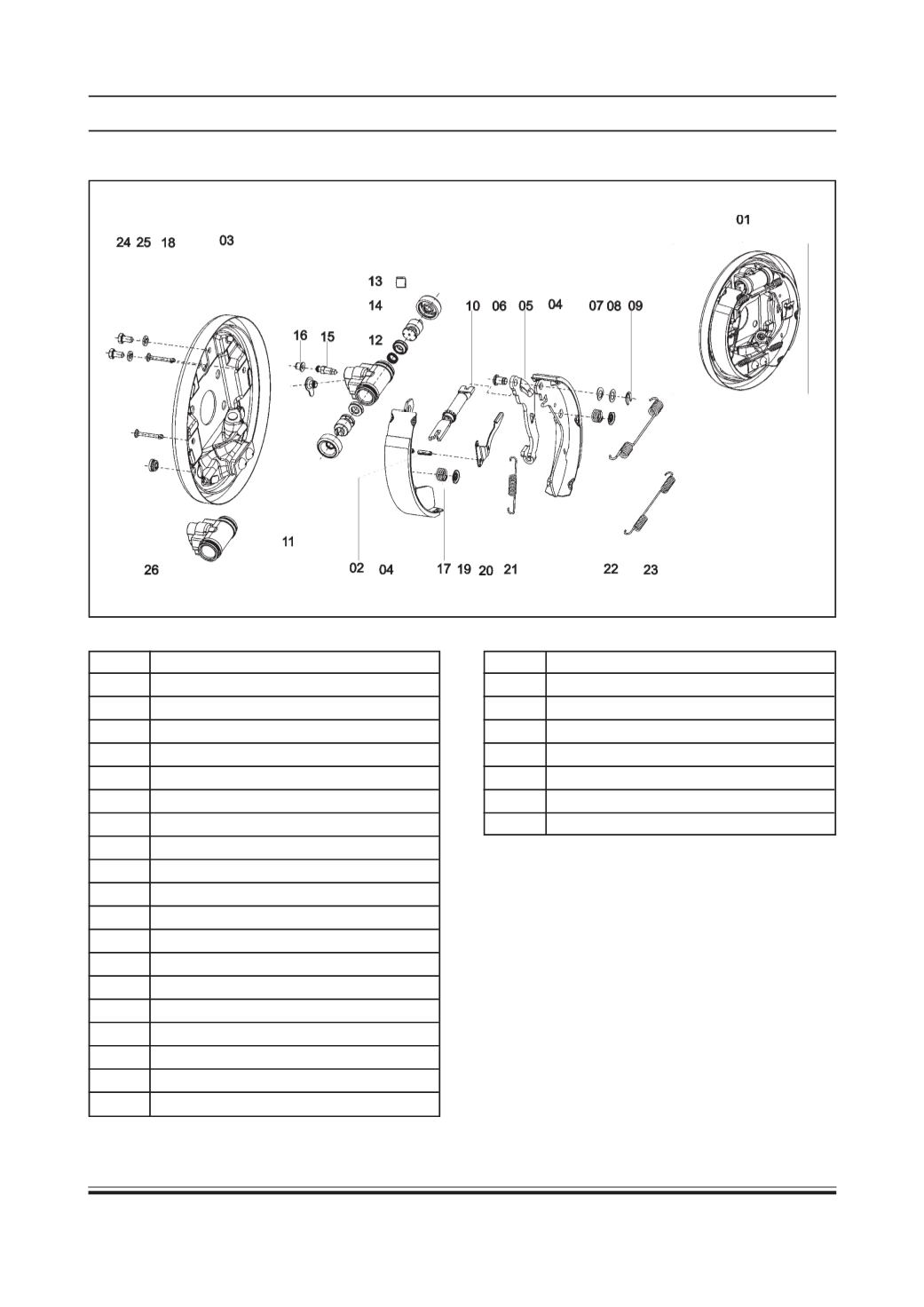

REAR BRAKE COMPONENTS
Sr. No. Description
01 Assembly Rear brake
02 Pin (spring dowel)
03 Back plate assembly
04 Lined shoe assembly
05 Hand brake lever
06 Pin-hand brake lever
07 Spring plate lever
08 Washer
09 Circlip
10 Adjuster assembly
11 Wheel cylinder assembly
12 Seal
13 Grease sachet (lithium soap)
14 Dust cover
15 Bleed screw
16 Dust cap
17 Spring-shoe hold down
18 Pin-shoe hold down
19 Washer-shoe hold down
Sr. No. Description
20 Lever pawl
21 Spring, adjuster
22 Spring wheel cylinder end
23 Spring abutment
24 Screw lining inspection
25 Washer, spring
26 Grommet lining inspection
