BRAKE SYSTEM

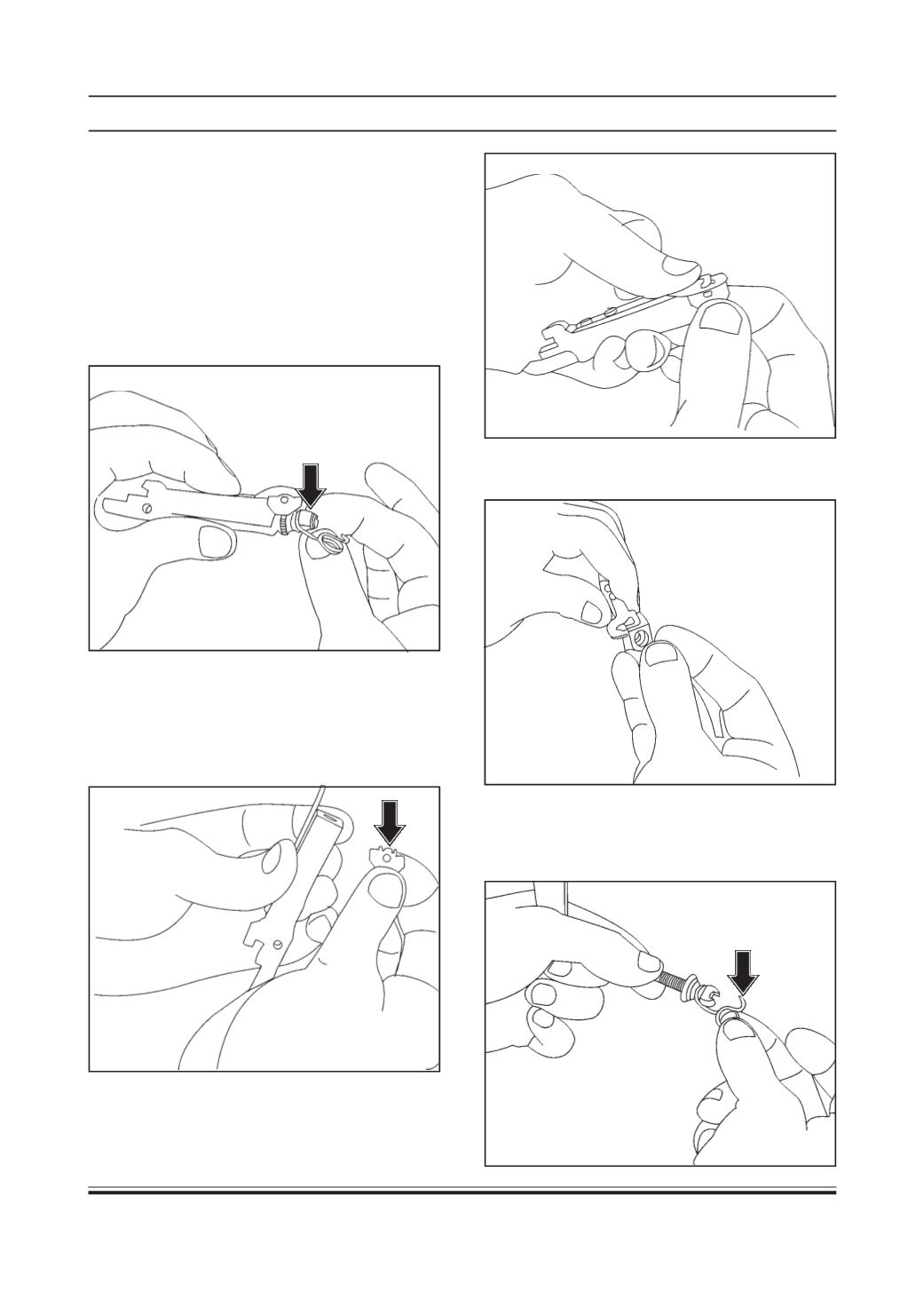

3. Mount the strut spring (shown by arrow) on the

adjuster screw and adjustment ratchet in such a

manner that, adjuster ratchet is 3-4 threads away

from the head.

Assembly

1. Press leaf spring and insert pawl in angular

direction to fit properly in the slot on the leaf spring.

2. Lift the leaf spring alongwith pawl, and insert elbow

lever gently.

OVERHAULING OF AUTO ADJUSTER

ASSEMBLY

NOTE:

Refer brake auto adjuster kit from electronic parts

catalogue (Bosch and BIL) while overhauling process

and replace the parts accordingly.

Disassembly

1. Pullout gently adjuster screw (shown by arrow) from

strut assembly.

2. Dismantle pawl (shown by arrow) by pulling slightly

from strut assembly.

NOTE:

While pulling; twist the pawl to get unlocked from

seating.
