ELECTRICAL

13

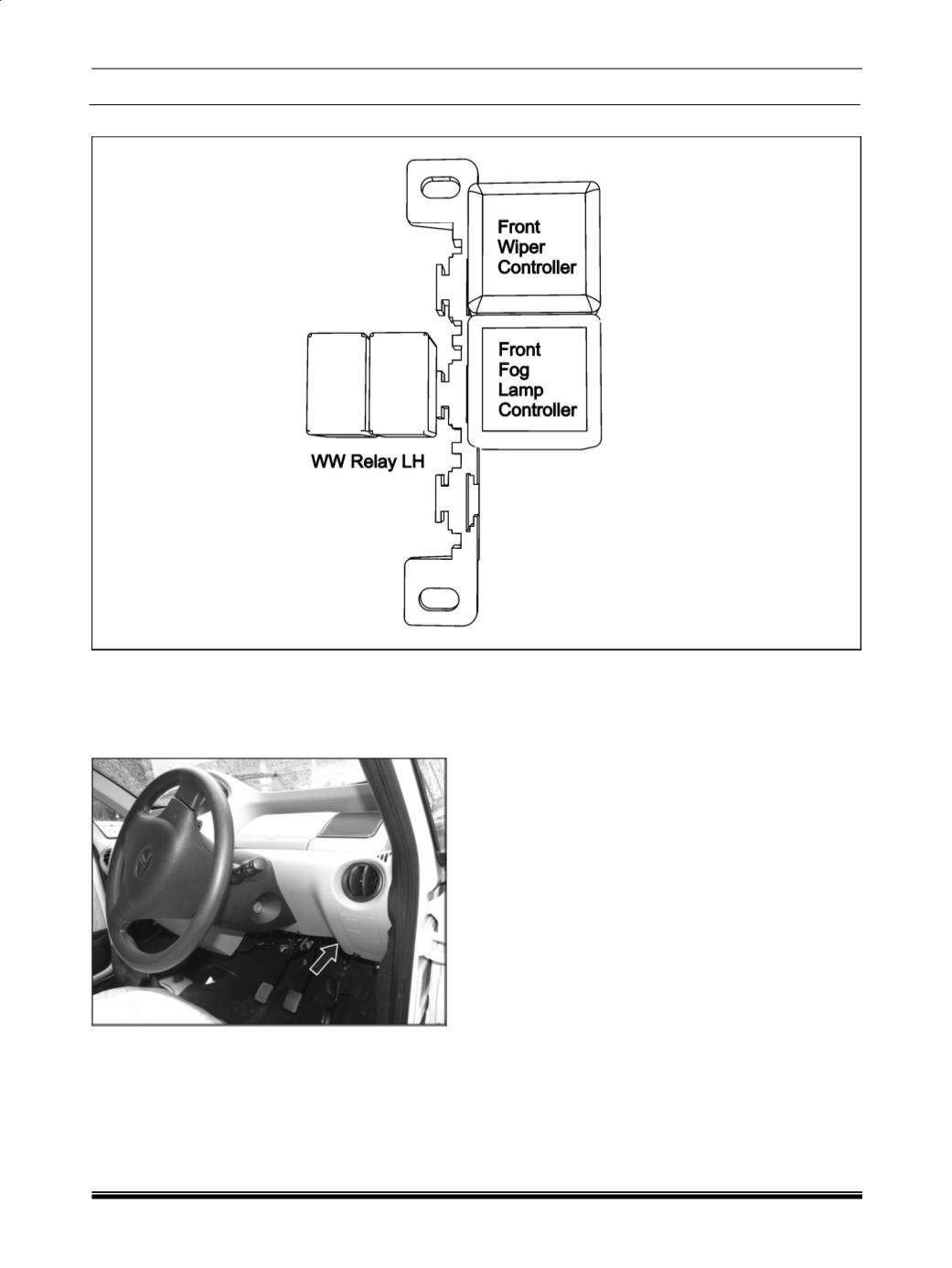

2.4.4. RELAY BOX DETAILS (FOR NANO CNG AND MY13)

2.4.5. DIAGNOSTIC CONNECTOR LOCATION

The diagnostic connector is located below the

dashboard at the RH side of the steering wheel as

shown in the below image.
