3. INSTRUMENT CLUSTER:

Function:

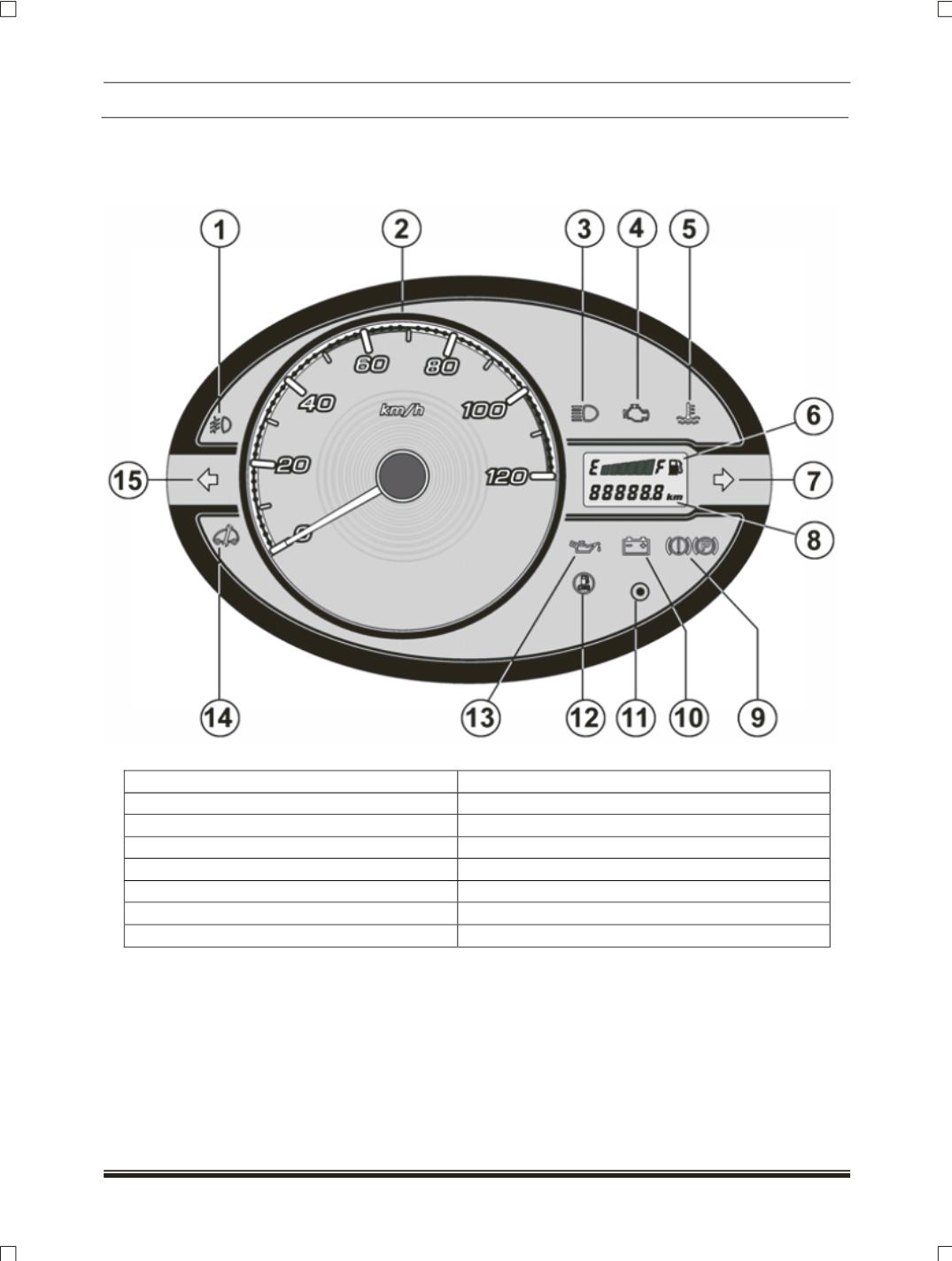

The Instrument cluster consists of Fuel gauge, Speedo meter, tell-tale indicators and LCD display. The location

of above gauges & displays are shown in the below image.

1. Front fog lamp indicator

9. Parking brake / Brake fluid check indicator

2. Speedometer

10. Battery charging indicator

3. High beam indicator

11. Trip / Rest knob

4. MIL indicator

12. CNG indicator

5.Engine coolant high temperature indicator

13. Low engine oil pressure indicator

6.Fuel level indicator

14. Service indicator

7. Turn indicator (Right)

15. Turn indicator (Left)

8. Odometer

CNG LAMP:

This lamp glows when you select the CNG fuel mode. This lamp will not glow when you select petrol fuel mode.
