NANO

ELECTRICALS

1.3 AMT TCU UNIT CONNECTOR’S

REMOVAL AND RE-FIMENT ON VEHICLE:-

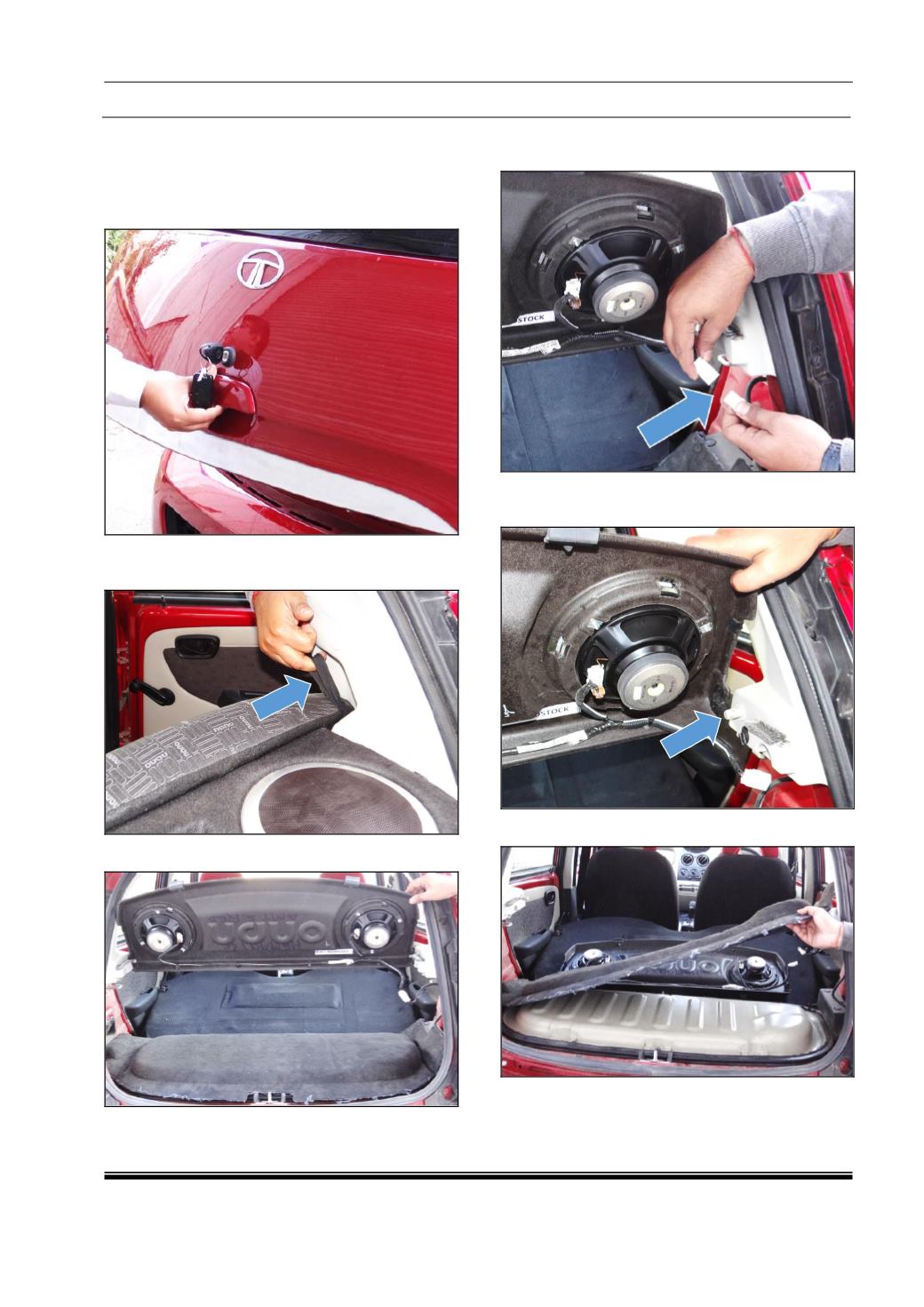

Removal:

1. Open the tail gate by key.

2. Pull the both side strip simultaneously (located

behind the rear seat) to fold the seat.

3. Open the parcel tray.

4. Disconnect the speaker wiring harness

connector.

5. Pull out the parcel tray from both sides of

guide bush simultaneously.

6. Remove the floor mat.
