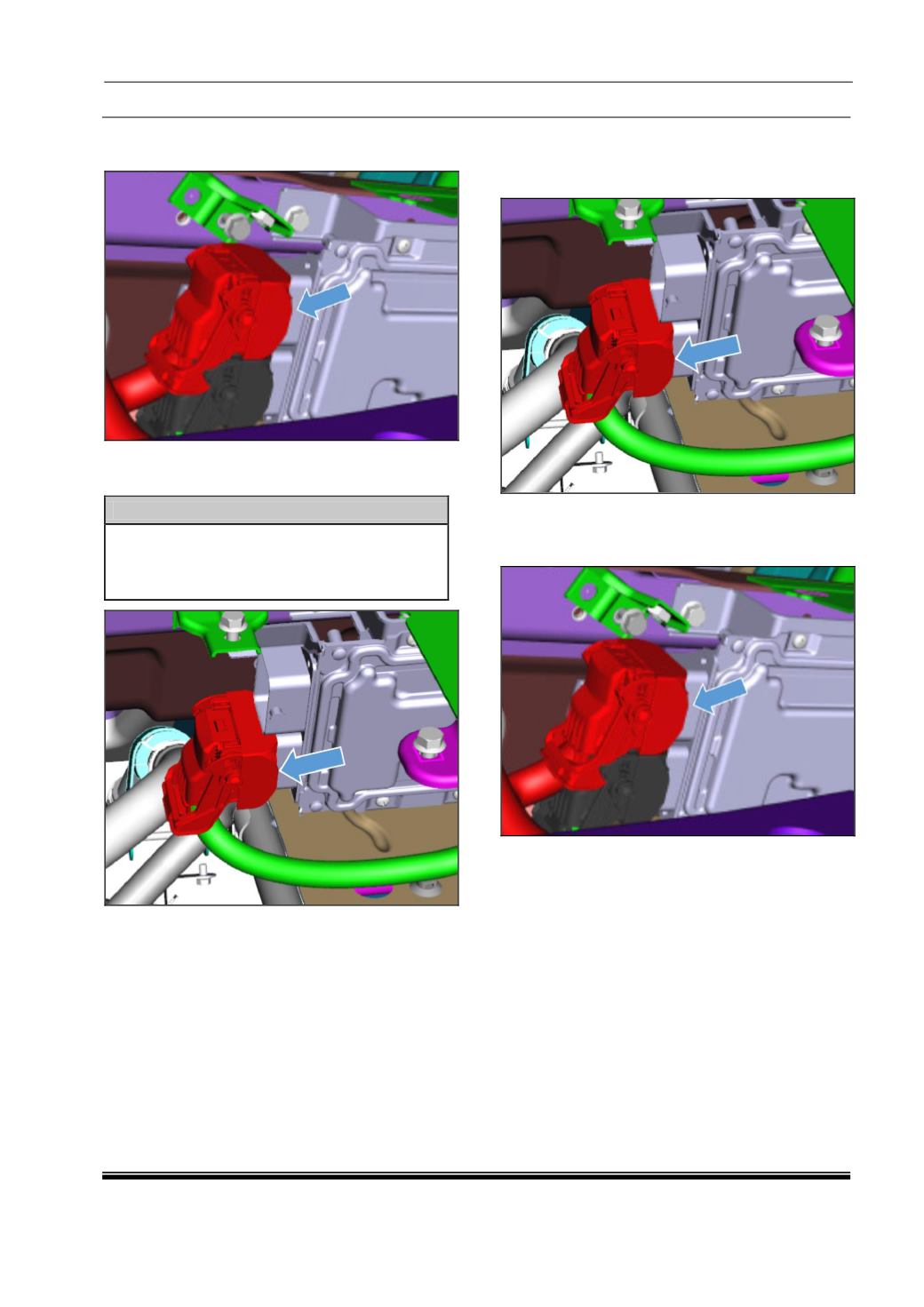

11. Remove the upper side connector (Engine

connector) by rotating its lever to upside.

12. Remove the downside connector (vehicle

connector) by rotating its lever to upside.

NOTE

1. We cannot remove the vehicle connector

before removing the 'Engine Connector'.

2. It is Poka-yoke that these connector cannot

be fitted into their interchanged locations.

Intallations:

1. Fit the downside connector (vehicle connector)

and lock it by rotating lever to downside.

2. Fit the upper side connector (Engine

connector) and lock it by rotating lever to

downside.
