ELECTRICAL
86

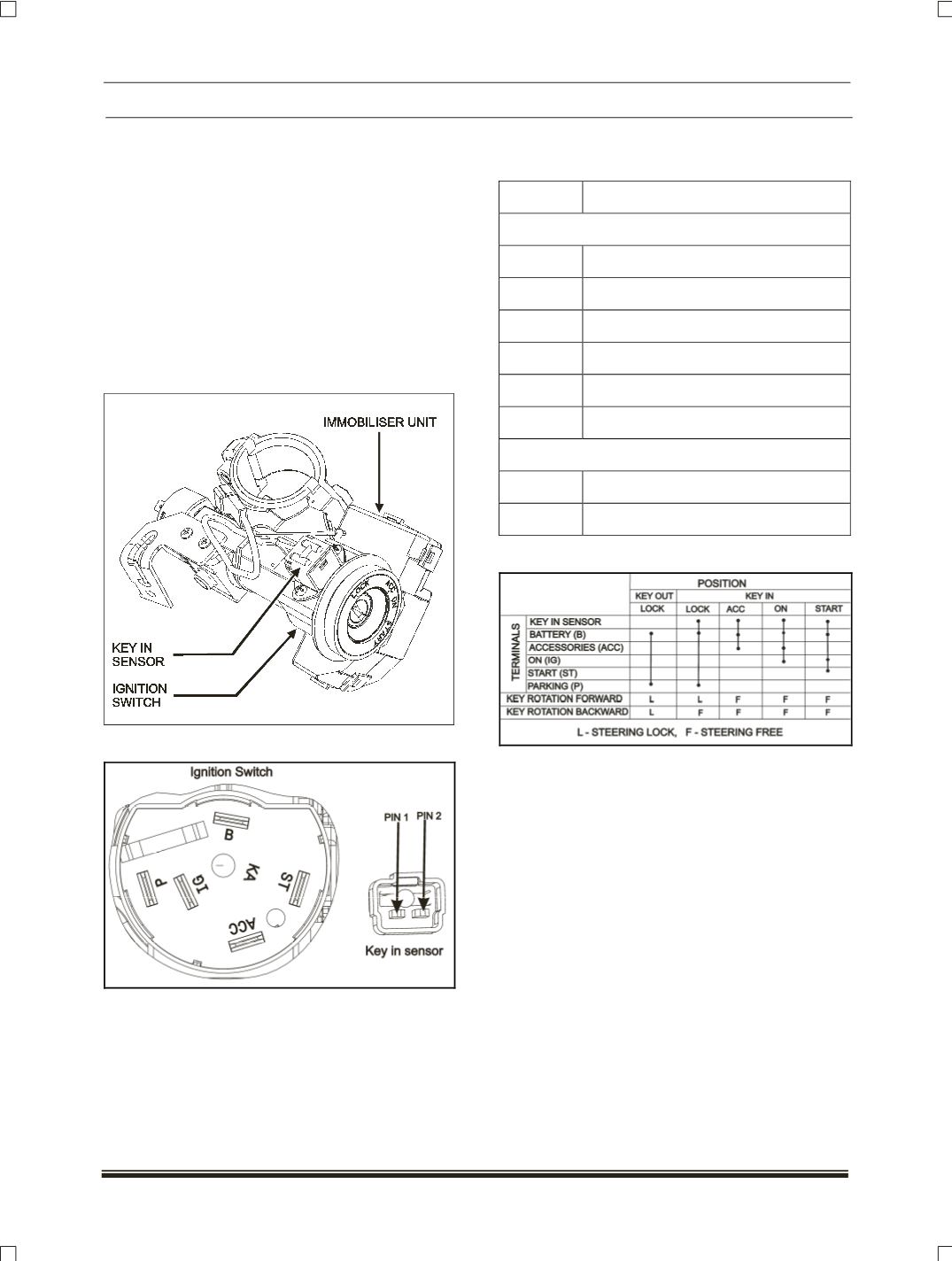

8.10.2 IGNITION SWITCH WITH IMMOBILIZER CAN VERSION PLUS KEY RING ILLUMINATION
SWITCH FUNCTION:
It has four Functions.
•
LOCK - Steering Locked
•
ACC - Accessories ‘ON’.
•
ON – IGNITION ON, RUN STATE
•
START - Engine Crank
IMMOBILIZER FUNCTION:
(
For Details refer
Immobilizer section
)
KEY IN SENSOR:
Give signal regarding the Key
Status.
CONNECTOR DETAILS:
PINOUT DETAILS:
PIN NO
DESCRIPTION
Ignition Switch
KA
Key in Sensor
B
Battery
ACC
Accessories
IG
Ignition ON
ST
Start
P
Parking
Key In SENSOR
PIN 1
Supply
Pin 2
Signal
CONNECTION DETAILS:
