ELECTRICAL
85
ELECTRICAL

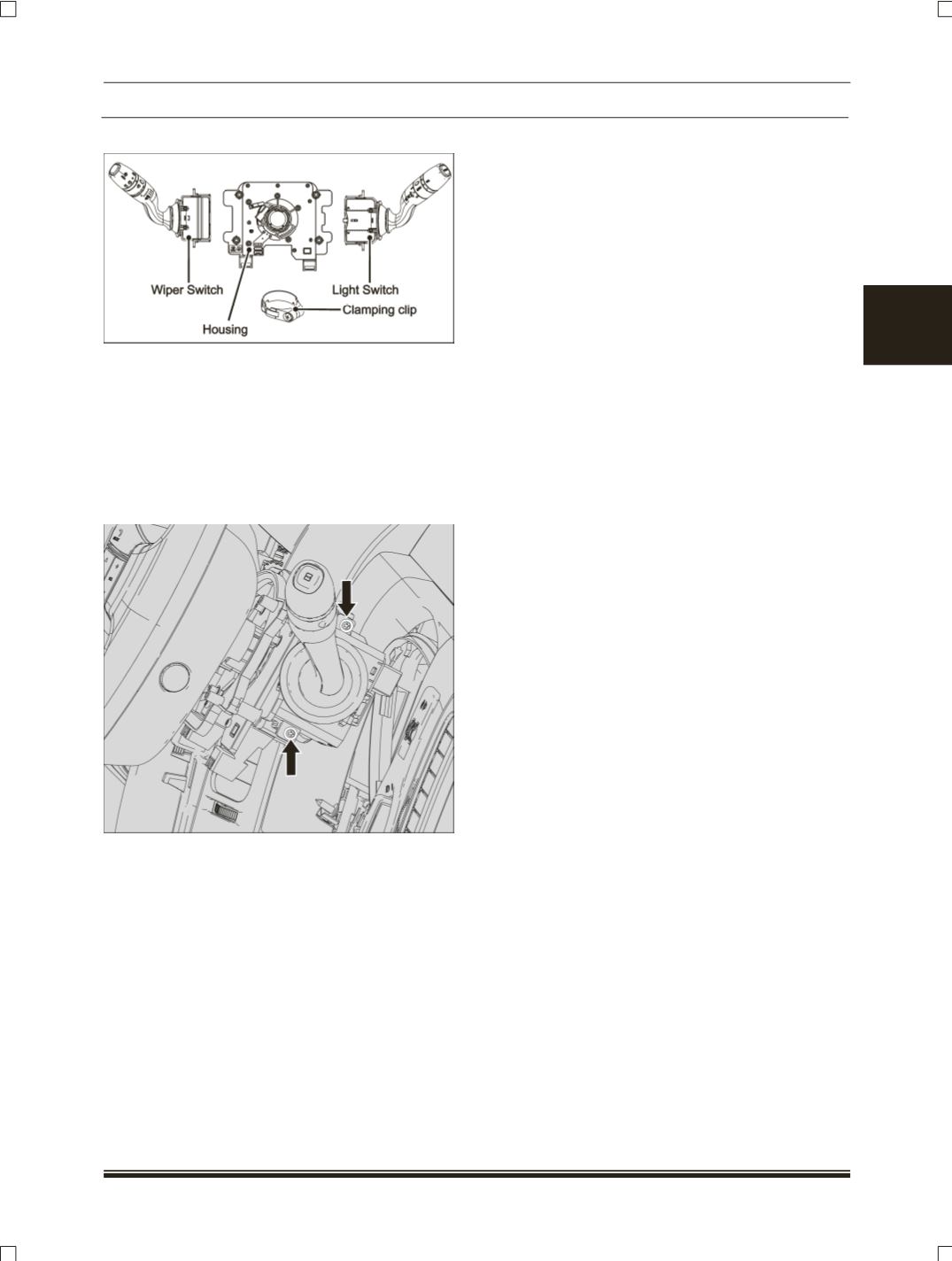

COMBI SWITCH CHILD PARTS:
STALK REPLACEMENT:
REMOVAL:
1.Remove the both assy nacelle upper and lower.
2.Disconnect the wiring harness connector from
the combi-switch stalk.
3.Remove two mounting screws of the lever as
shown in below given figure.
4.Take out the defective stalk.
REFITMENT:
1.Align the new stalk in the combi-switch housing.
2.Fit the two mounting screws.
Tightening torque for screws – 0.06 Kgm.
3.Connect the electrical connection to the switch.
4.Snap fit the assy lower nacelle and assy upper
nacelle, and tighten the three mounting screws in
the assy nacelle lower.
