ANTI LOCK BRAKING SYSTEM (ABS)
8

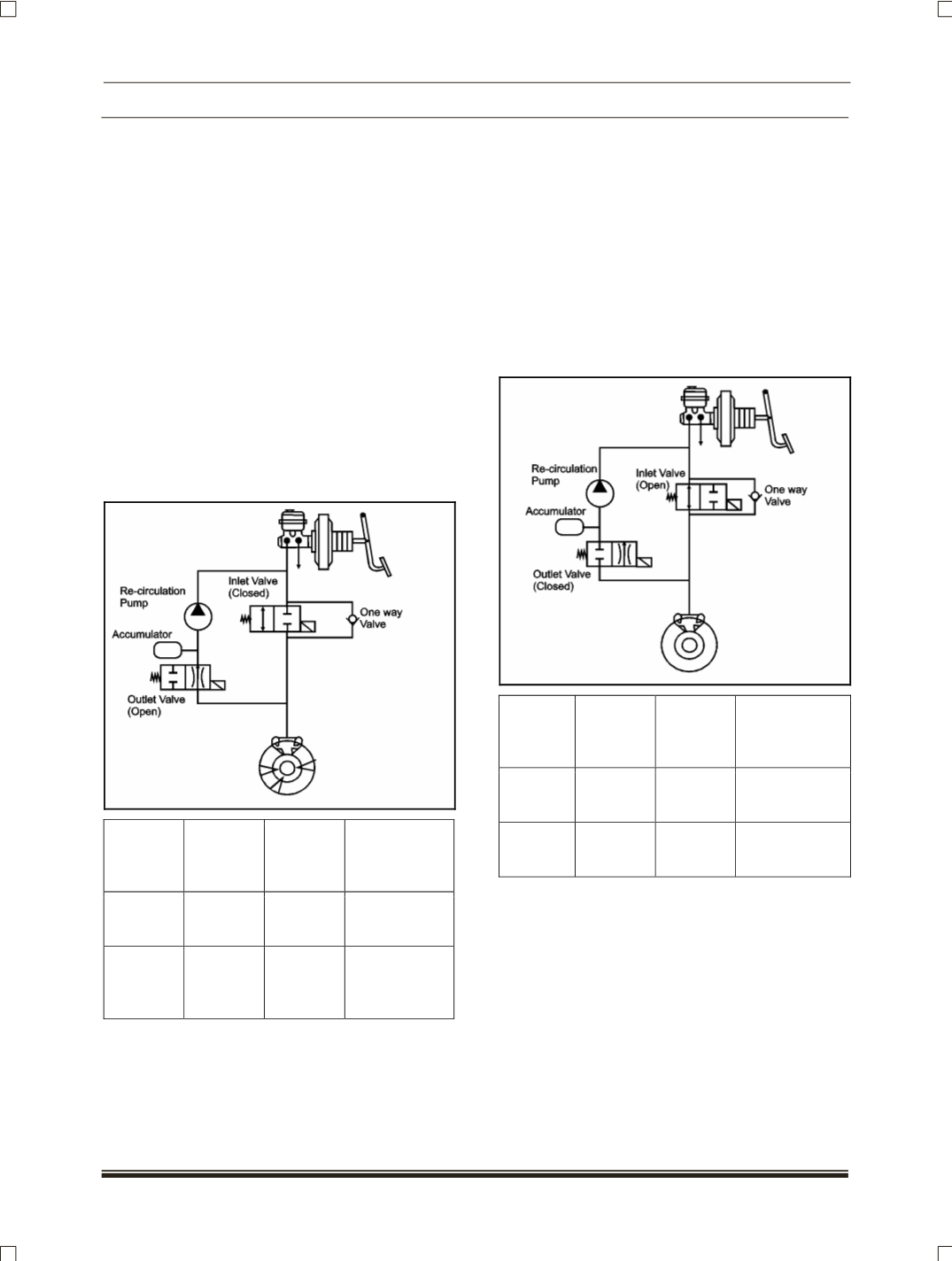

2. PRESSURE REDUCTION PHASE
If the ECU detects that the % Slip relative to the
other wheels and vehicle reference speed is still
increasing during the pressure hold phase and the
wheel is tending further towards lock, it will start the
pressure reduction phase, as the existing brake
pressure in the wheel brake is too high. It will
activate the relevant outlet valve within the hydraulic
modulator, switching it from its normally closed
position to open. This will allow fluid to pass from the
wheel brake into the accumulator chamber within the
modulator. At the same time the ECU will activate
the return pump integrated into the modulator to
draw fluid from the accumulator and wheel brake and
return it to the TMC. This fluid being returned to the
TMC is what is felt as the pulsations at the pedal,
and the amplitude of the pulsations is relative to the
amount of fluid that needs to be reduced. Pressure
reduction will continue until the controlled wheel
speed returns to the vehicle reference speed.
Solenoid
valve
Electricity
status
Valve
open-
close
Open-close
channel
INLET
ON
CLOSE Master cylinder
-Wheel cylinder
OUTLET
ON
OPEN
Wheel
cylinder -
reservoir
3. PRESSURE INCREASE PHASE
As the ECU detects that the speed of the controlled
wheel has increased to the vehicle reference speed
and hence the % slip reduced. It will sequentially
deactivate the outlet and inlet valves switching them
to their normal positions. With the outlet valve closed
further pressure reduction is prevented and the inlet
valve can be opened to allow brake fluid from the
TMC to enter the wheel brake increasing the brake
pressure once again. If the driver releases the brake
at any time during ABS control the inlet valves will be
deactivated and fluid can return to the TMC via the
inlet valve and the one way valve.
Solenoid
valve
Electricity
status
Valve
open-
close
Open-close
channel
INLET
OFF
OPEN Master cylinder
-Wheel cylinder
OUTLET OFF
CLOSE Wheel cylinder -
reservoir
