BODY
68

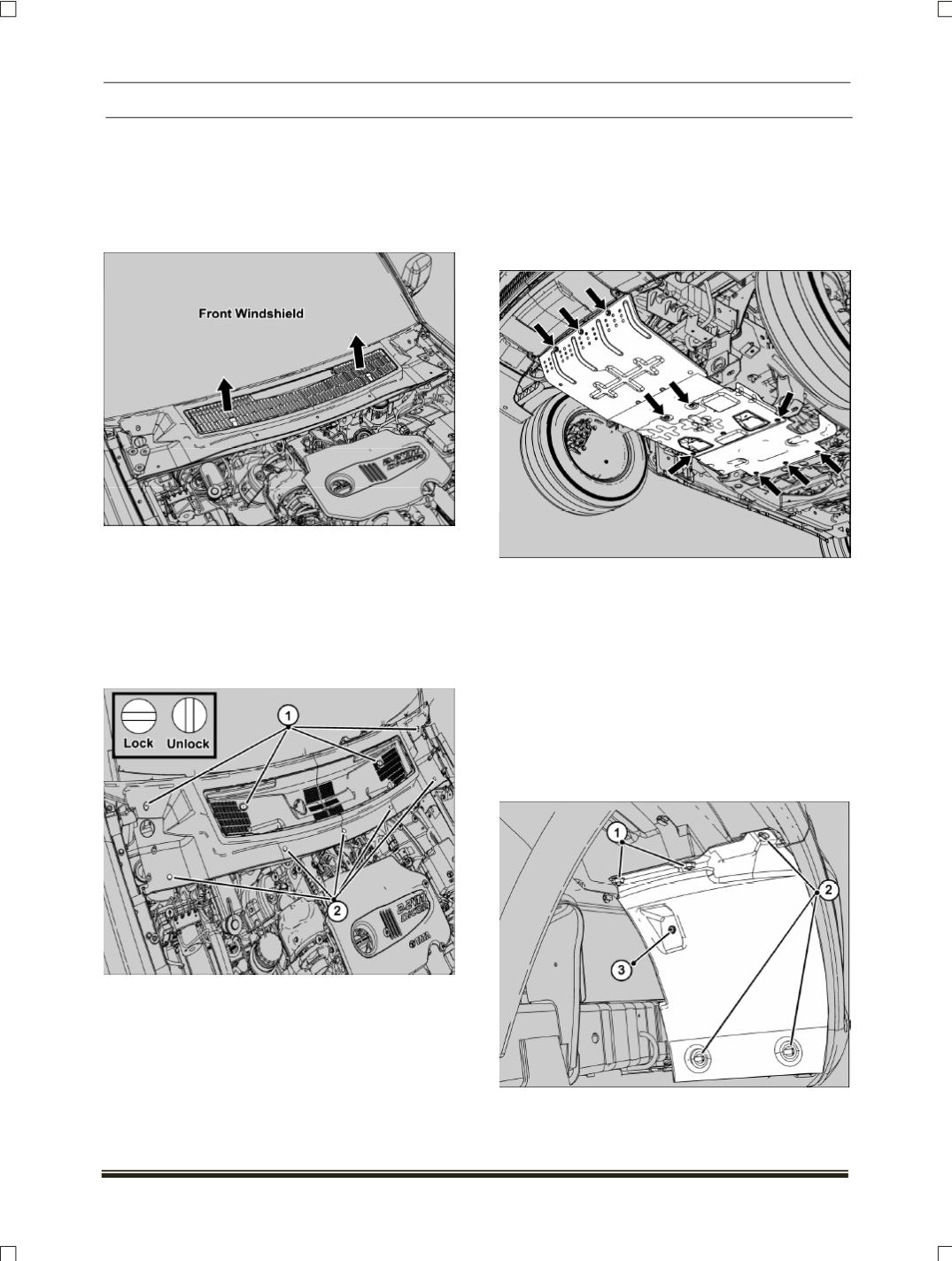

9.2.35 PLENUM COVER ASSEMBLY
REMOVAL
1. Disconnect the negative terminal of battery.
2. Pry out the plenum center grill and disconnect
the washer pipe at grill end
3. Remove both side wiper arm and blade
assembly. (R
efer wiper arm and blade
assembly removal process in Electrical section)
4. Remove bonnet seal.
5. Loosen and remove four mounting screws (1)
and carefully remove five twist locks (2)as
shown below.
6. Take out the plenum assembly.
FITMENT
For fitment follow the reverse procedure of
removal.
9.2.36 STONE GUARD
REMOVAL
1. Apply the handbrake and chocks on the wheels.
2. Loosen and remove all the mounting bolts and
remove the stone guard from the bottom side of
the vehicle.
FITMENT
For fitment follow the reverse procedure of
removal.
9.2.37 FRONT WHEEL ARCH LINER
REMOVAL
1. Tilt the front wheel or remove the front wheel for
better access to the inner wheel arc.
2. Remove the plastic nut (1)(2 Nos.) clips (2)(4
Nos) and one mounting screw(3) then take out
the front mud guard
