SAFARI STORME

SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

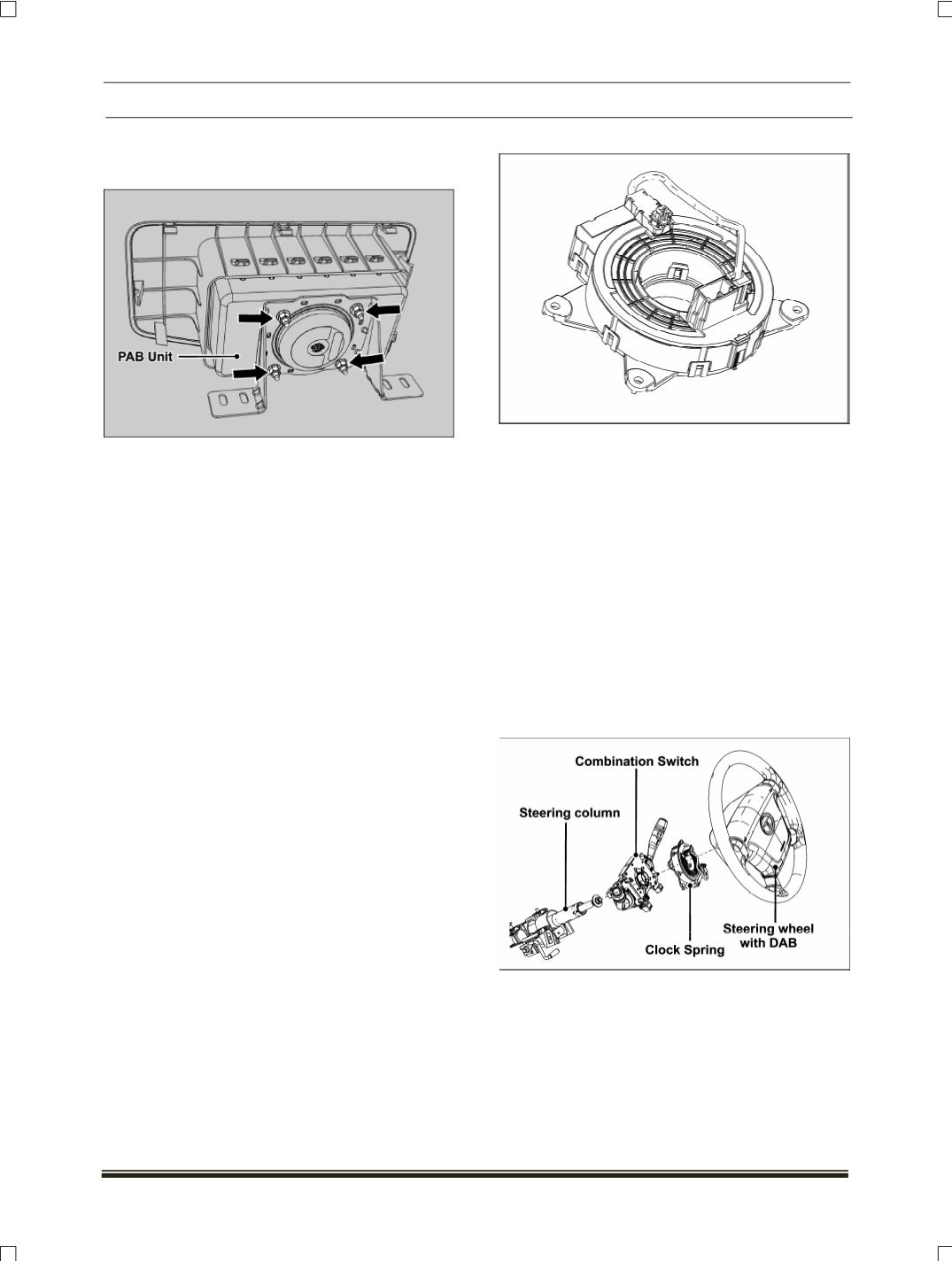

7. Loosen and remove four mounting nuts from the

rear side which holds the air bag bracket with the

PAB module.

8. Carefully separate the holding bracket from the

PAB unit.

FITMENT

For fitment follow the reverse procedure of removal

NOTE

Connect the diagnostic tool and clear fault codes, if

any

11.1.6.2.4 CLOCK SPRING

Clock spring is a spirally wound wire coil (not a slip

ring) mounted on steering column. This single-wire

type contact reel (clock spring) design ensures most

reliable contact possible between air bag module

assembly and crash sensor. It also provides the

electrical continuity for airbag and horn

The clock spring only needs to be replaced when the

connectors that attach to the driver airbag is melted

and fused directly to the DAB module. During a de-

ployment the gas conversion creates a heat ex-

change inside the DAB module and that causes

connectors to melt.

LOCATION

Clock spring is mounted on the steering column

along with the Combi-switch.
