SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
17
SRS
4. Disconnect the DAB connector from clock spring
and disconnect the horn pad connection and
separate the DAB assembly from the vehicle.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
After fitment connect the diagnostic tool and clear all
fault codes if any.
B. PASSENGER AIRBAG (PAB)
The passenger airbag module is located below the
dashboard; above the glove box and its functioning
is controlled by the SRS ECU. A bag within the mod-
ule inflates to protect the passenger in the event of a
collision severe enough to deploy the system.
Within the passenger airbag module is a squib
which, when given the correct current by the SRS
ECU, inflates the airbag by initiating a chemical reac-
tion. In deployment, the airbag inflates within a frac-
tion of a second and then deflates at a controlled
rate as the passenger body regions; typically head
and chest interact with airbag. Vents in the airbag
control its deflation.
The SRS ECU regularly applies a test current to the
passenger airbag squib to confirm continuity of the
ignition circuitry.
ON VEHICLE REPAIR
!! WARNING
The system has back-up power for about 30 seconds
after the battery is disconnected. Wait for at least
ONE minute after disconnecting the battery before
servicing the vehicle to prevent accidental deploy-
ment and personal injury.
REMOVAL
1. Disconnect the battery connections.
2. Remove the hush panel.
(For procedure refer
hush panel removal procedure in body section.)
3. Remove glove box (
For procedure refer glove box
removal procedure in body section
)

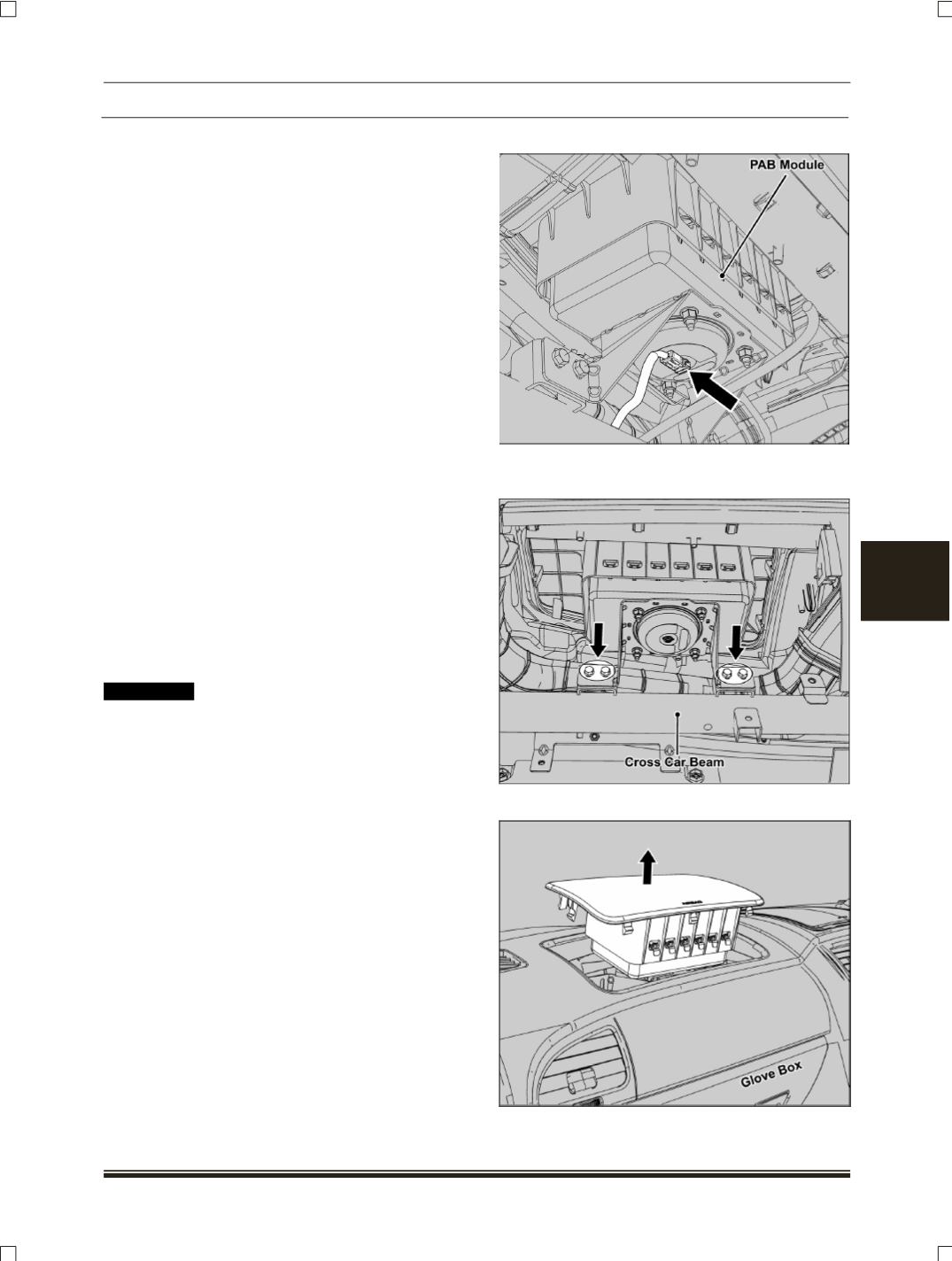

4. Disconnect the electrical connector of PAB.
5. Remove the four mounting bolts which hold the
air bag assembly with the cross car beam.
6. Carefully pry out the PAB unit form dashboard.
