SAFARI STORME

ELECTRICAL

204

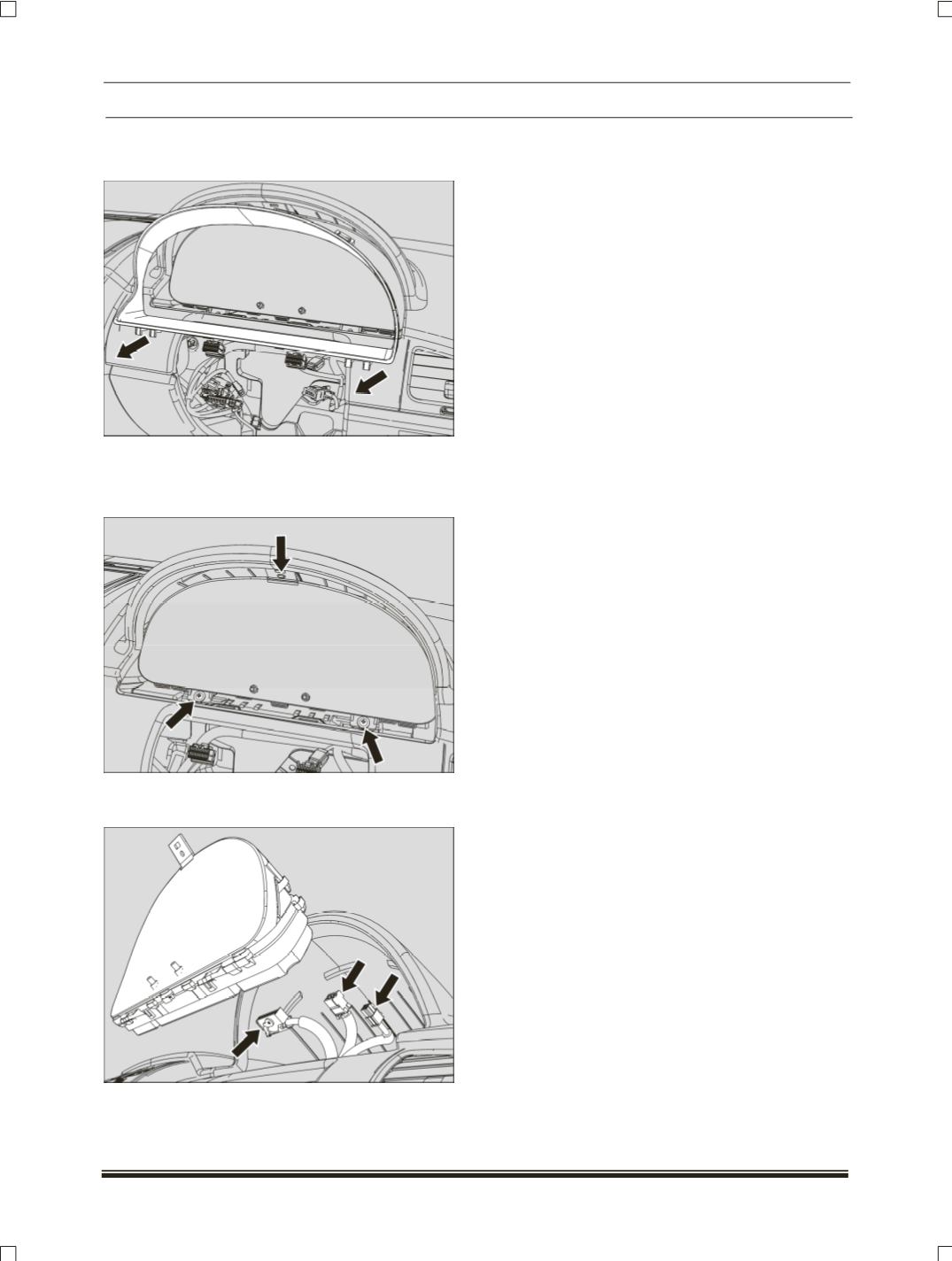

8.14 17. REMOVAL

1. Carefully pry out the instrument cluster finisher.

2. Remove three mounting screws of Instrument

cluster.

3. Disconnect the electrical connection of

Instrument cluster.

4. Take out the cluster.

REFITMENT:

1.Connect the electrical connection of instrument

cluster.

2.Fit the instrument cluster.

3.Tighten the three mounting screws of

instrument cluster.

Tightening torque of screws – 0.30 Kgm

4.Fit the instrument cluster finisher

(Snap fitted)
