STEERING
10

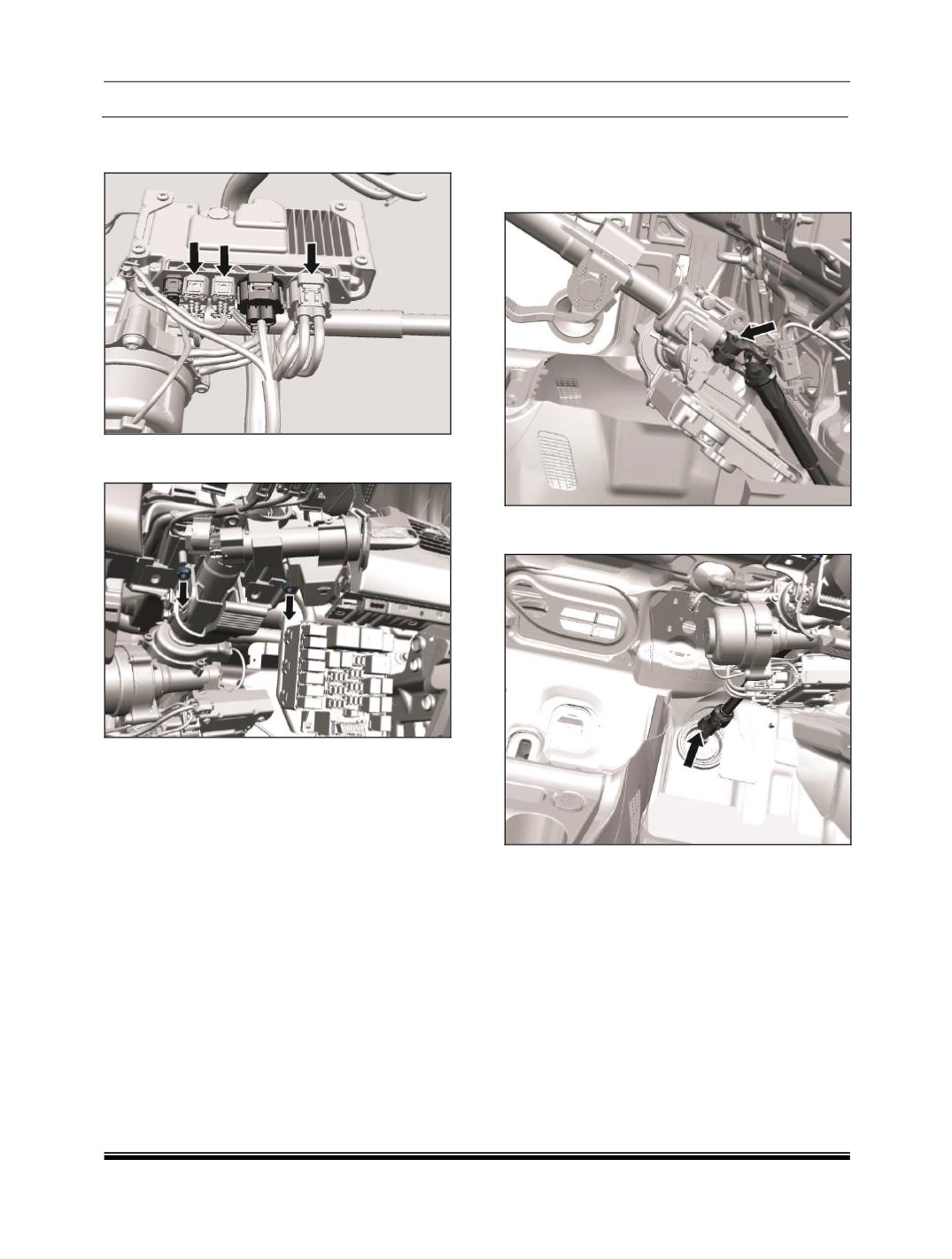

8. Disconnect the electrical connector’s from the
ECU.
9. Remove the steering column mounting bolts (4
no.).
10.Disengage the column assembly from
intermediate shaft and take out the column.
REFITMENT:
For assembly follow reverse procedure of
removal.
8.2.3.3 INTERMEADIATE SHAFT REMOVAL
1. Loosen the universal joint bolt between
steering column & intermediate shaft.
2. Remove the universal joint bolt between
intermediate shaft and rack & pinion assembly.
3. Disengage the intermediate shaft from rack &
pinion assembly and take out the intermediate
shaft.
REFITMENT:
For assembly follow reverse procedure of
removal.
