STEERING
14
8.3. OVERHAULING

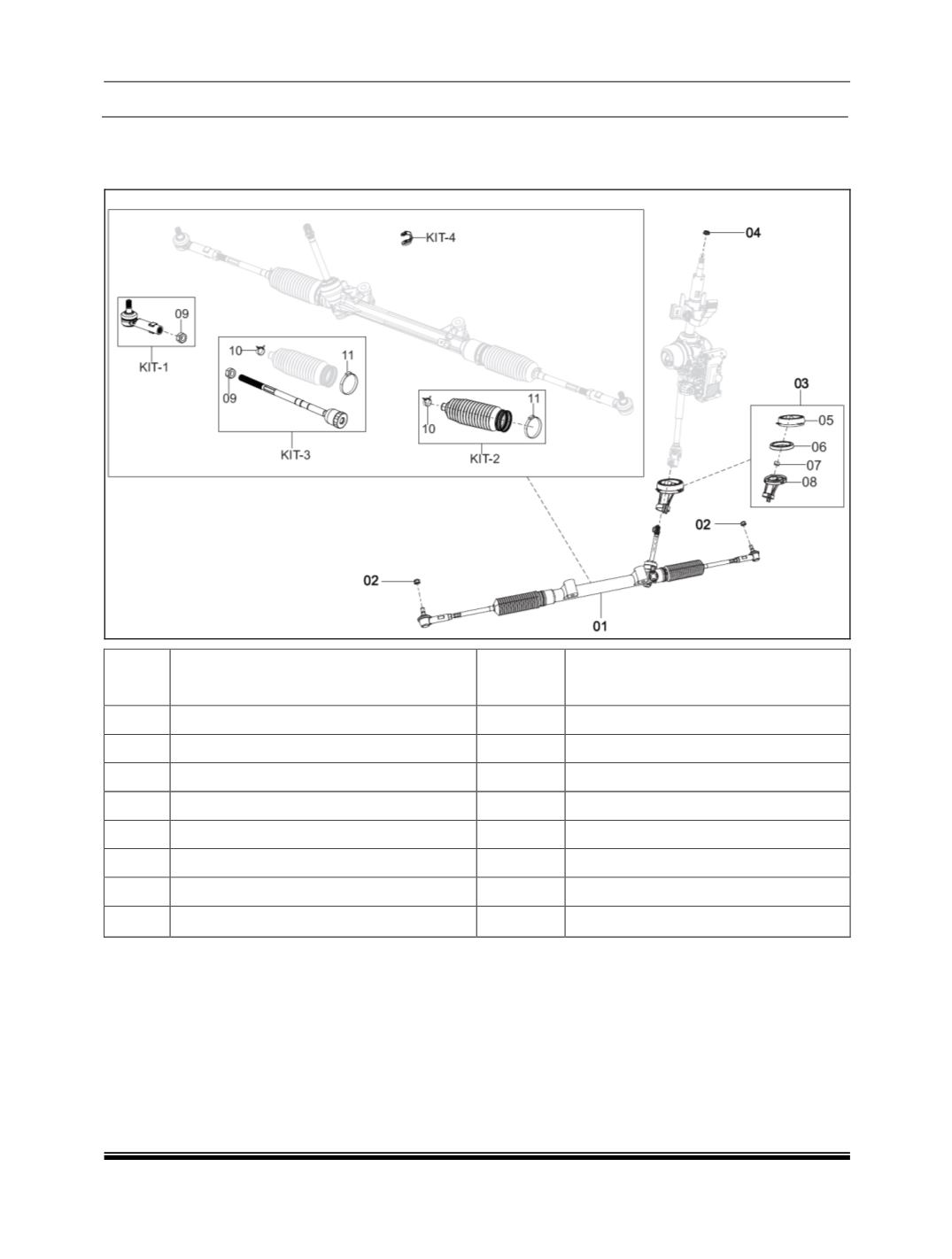

8.3.1. OVERHAULING OF STEERING RACK AND PINION ASSEMBLY
Sr.
No.
Description
Sr. No.
Description
01
Assy Rack And Pinion.
09
Nut
02
Nyloc Nut
10
Clamp Bellow
03
Assy Dust Seal
11
Circlip
04
Steering Column Assy
KIT 1
Kit-Obj EPAS
05
Packing Rubber
KIT 2
Kit-Bellow
06
Dust Seal Foam
KIT 3
Kit-Ibj EPAS
07
Dust Seal Sleeve
KIT 4
Plastic Poka-yoke Flag
08
Cap Of Dust Seal
NOTE:
1. RPS assembly already removed from
vehicle. (Refer RPS assembly removal
procedure)
2. Refer exploded view of Steering Rack and
Pinion Assembly while overhauling
procedure.
