STEERING
1
8.1 GENERAL INFORMATION
8.1.1 SPECIFICATIONS
TYPE
Column mounted Electrical power assisted steering system with,
mechanical Rack and Pinion steering gear with collapsible and till
type steering column.
STEERING WHEEL
4 Spoke & 360 mm Dia
.
STEERING WHEEL TURN
3.07
STEERING RATIO
15.89 : 1

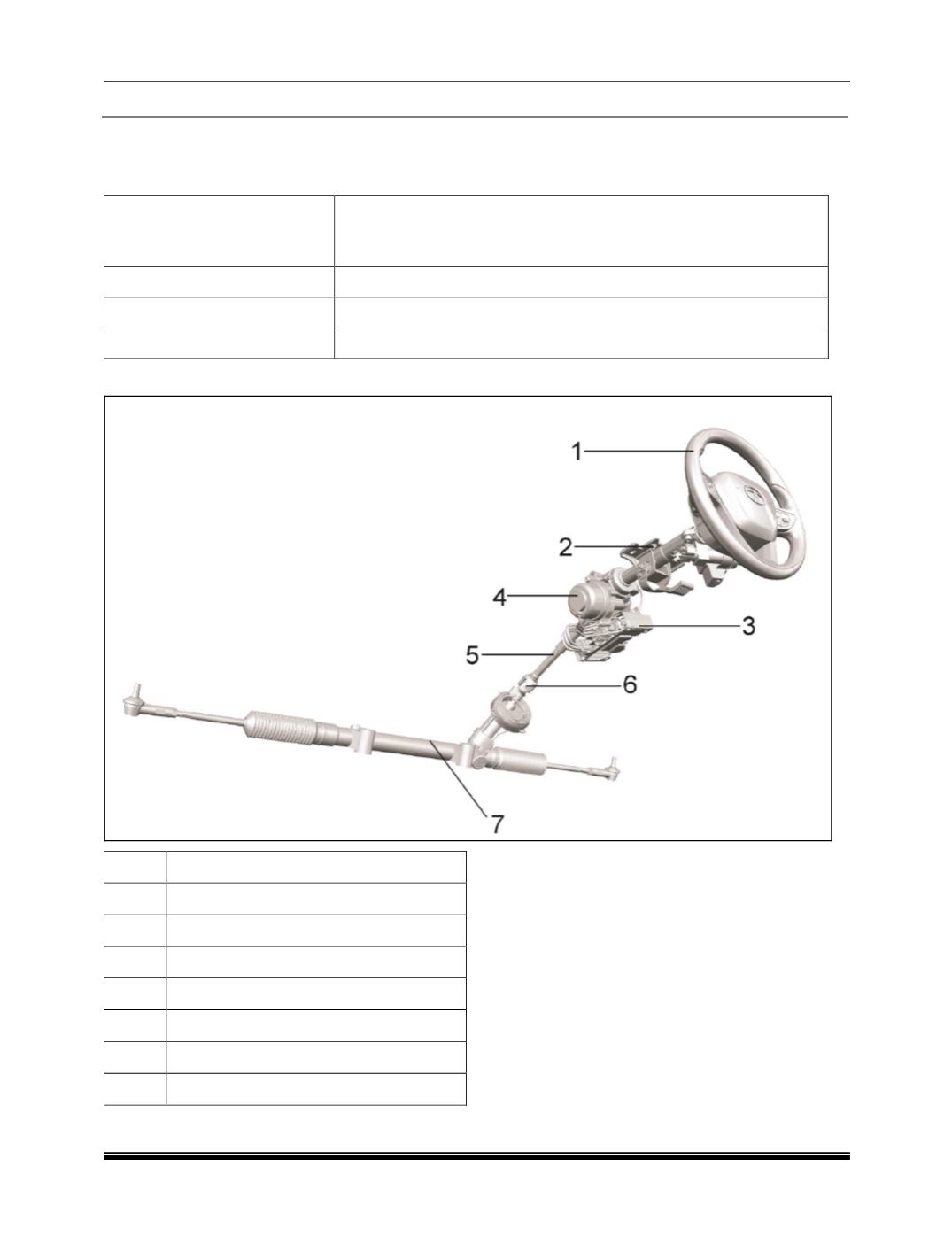

8.1.2 SYSTEM LAYOUT
Sr.No.
DESCRIPTION
1
Steering wheel
2
Steering column
3
ECU
4
Motor Unit
5
Intermediate shaft
6
Universal Joint
7
Mechanical Rack and pinion assembly.
