BRAKES
64

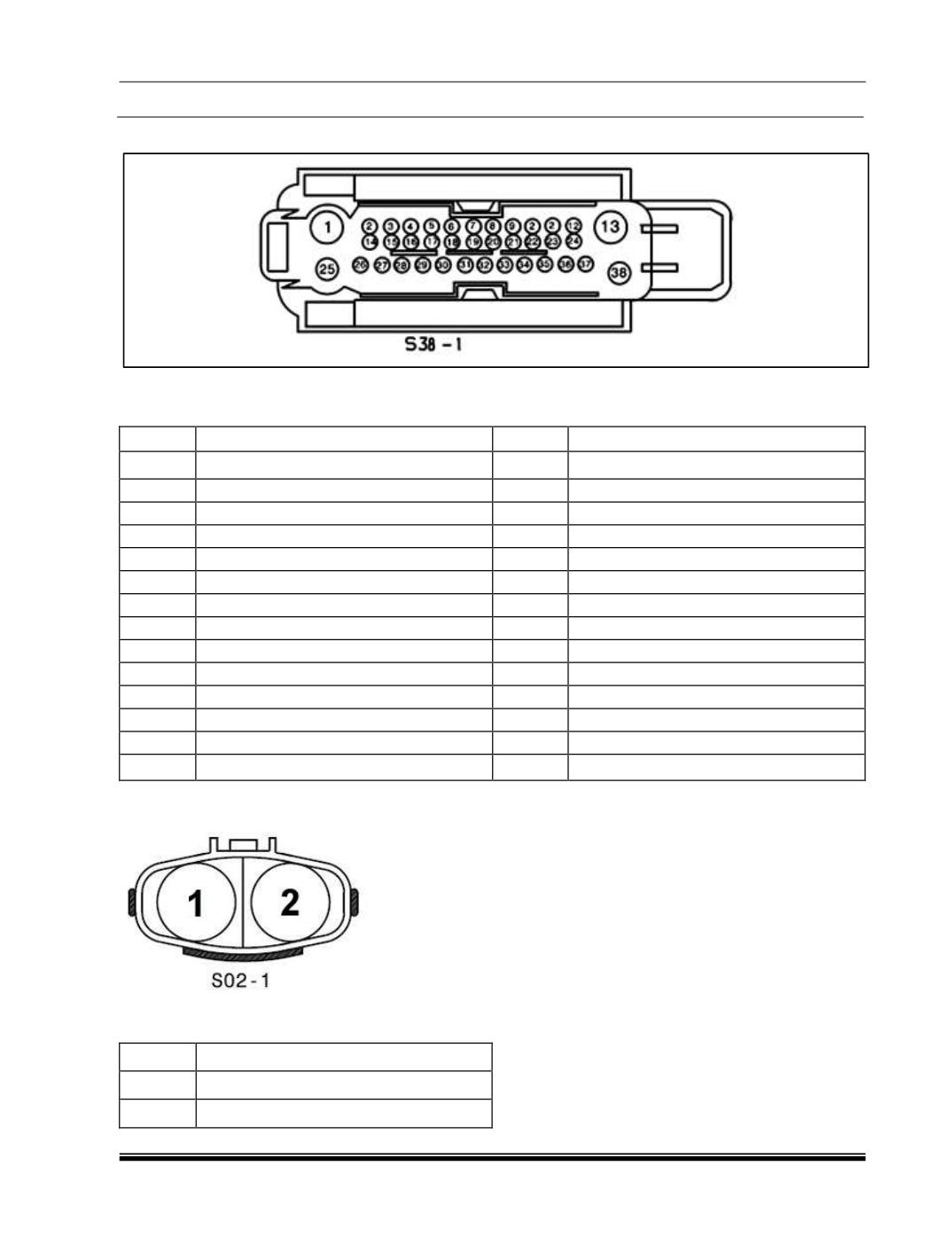

ABS ECU CONNECTOR (K2):
ECU pin details:
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
Battery positive
21
Not Used
2-3
Not Used
22
Front Left Wheel Speed Sensor Signal
4
ABS Warning Lamp
23-24
Not Used
5
Not Used
25
Battery Positive
6
Front Right Wheel Speed Sensor Signal
26
CAN H
7-12
Not Used
27-29
Not Used
13
Ground
30
Brake Light Switch
14
CAN L
31
Rear Right Wheel Speed Sensor Signal
15
Not Used
32
Ignition
16
EBD Warning Lamp
33
Rear Left Wheel Speed Sensor Power
17
K-Line
34
Front Left Wheel Speed Sensor Power
18
Front Right Wheel Speed Sensor Power
35-37
Not Used
19
Rear Right Wheel Speed Sensor Power
38
Ground
20
Rear Left Wheel Speed Sensor Signal
WHEEL SPEED SENSOR CONNECTOR:
Pin Details:
PIN NO.
DESCRIPTION
1
Wheel Speed Sensor Signal
2
Wheel Speed Sensor Power
