BRAKES
54
7.10.5

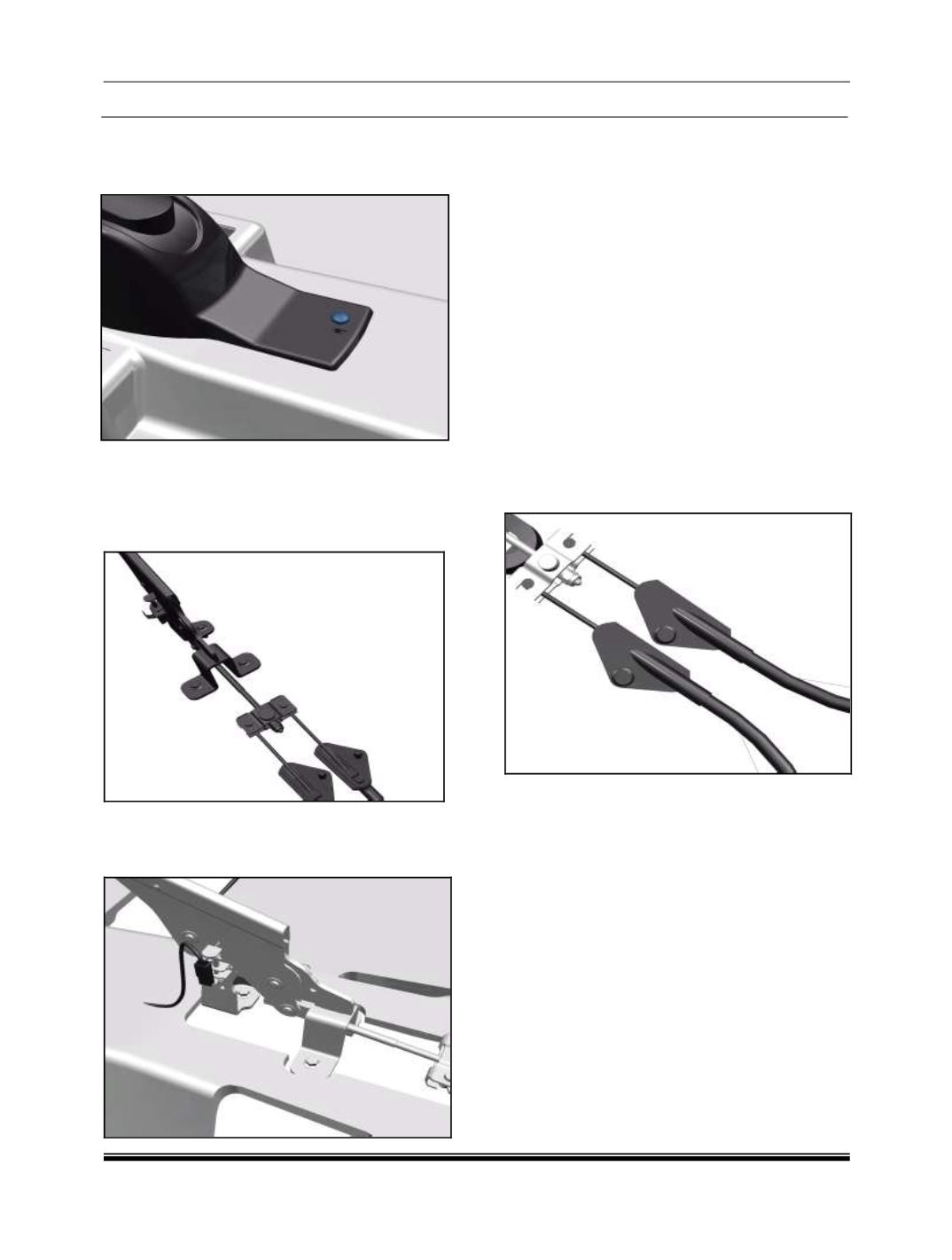

REMOVAL
OF
PARKING
BRAKE
LEVER
1. Position the car in the two postlift.
2. Remove the parking brake cover / centre
console plate located in the cabin.
3. Remove the parking brake adjustment nut and
the spacer and remove the equalizer and the
central locator from the parking brake lever.
4. Disconnect the electrical connection to parking
brake lever and unscrew mounting bolts of
brake lever and take out the lever.
5. After disconnecting lift the car.
7.10.6 REMOVAL AND INSTALLATION OF
PARKING BRAKE CABLE
1. Remove the brake drum - refer Removal brake
drum.
2. Remove the parking brake clip from the rear
brake assembly.
3. Disconnect the parking brake cable from the
shoe lever - refer Brake shoe removal.
4. Remove the cable from the rear brake
assembly.
5. Loosen the parking brake slackness
adjustment nut and disconnect the parking
brake cable from the equalizer.
6. Remove the parking brake cable that is snap fit
from the cable-mounting bracket located inside
the cabin.
7. Remove the cable holdings from the shell after
unscrewing the bolts from beneath.
8. Now disconnect all the parking brake cable
clamps from the body mountings.
