ELECTRICAL
77

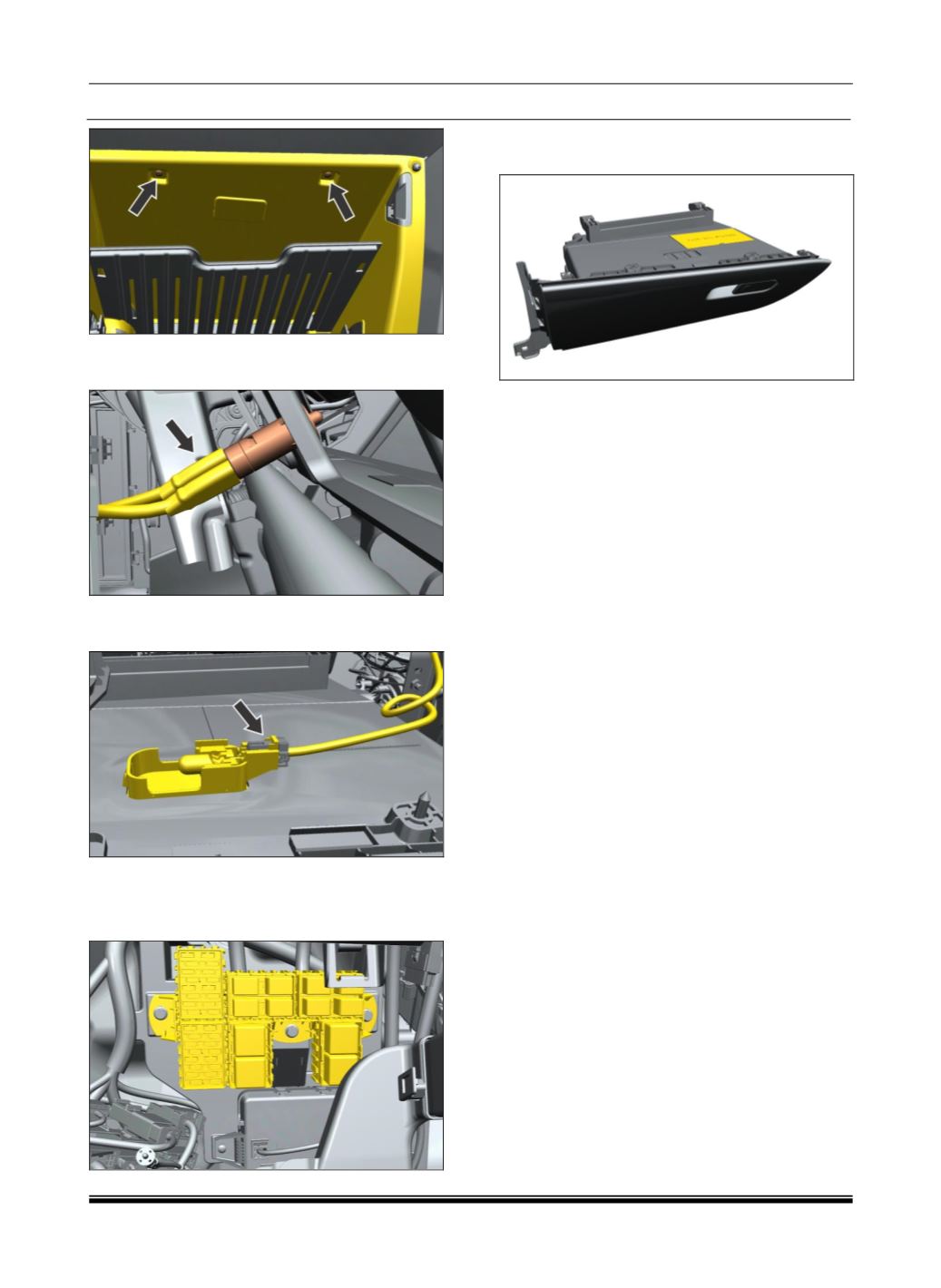

4. Disconnect the electrical connection of switch,
glove box lamp.
5. Disconnect the electrical connection of glove
box lamp.
6. Take out the glow box.
7. Pull out the fuse from fuse box modules from
available cutout as shown below
8. Check the fuse of required function with help
of fuse box sticker present at shown location
9. If fuse is blown, replace with same rating fuse
from spare fuses provided in engine
compartment fuse box
10. Fit back the glove box by following reverse
procedure.
REPLACEMENT PROCEDURE FOR RELAYS
1. Turn the ignition key to lock position.
2. Check each relay, if faulty replace with same
rating relay.
3. If replaced relay of same rating is not working
properly, there is probably a serious electrical
problem.
REPLACEMENT PROCEDURE FOR FUSES
1. Turn the ignition key to lock position.
2. Check each fuse and look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with one of the spare fuses of same
rating.
3. If replaced fuse of same rating burns out
then, there is probably a serious electrical
problem.
Note: Use designated fuses only
.
CIRCUIT SCHMATICS
Refer Book 3
DTCs
Refer Book 2
