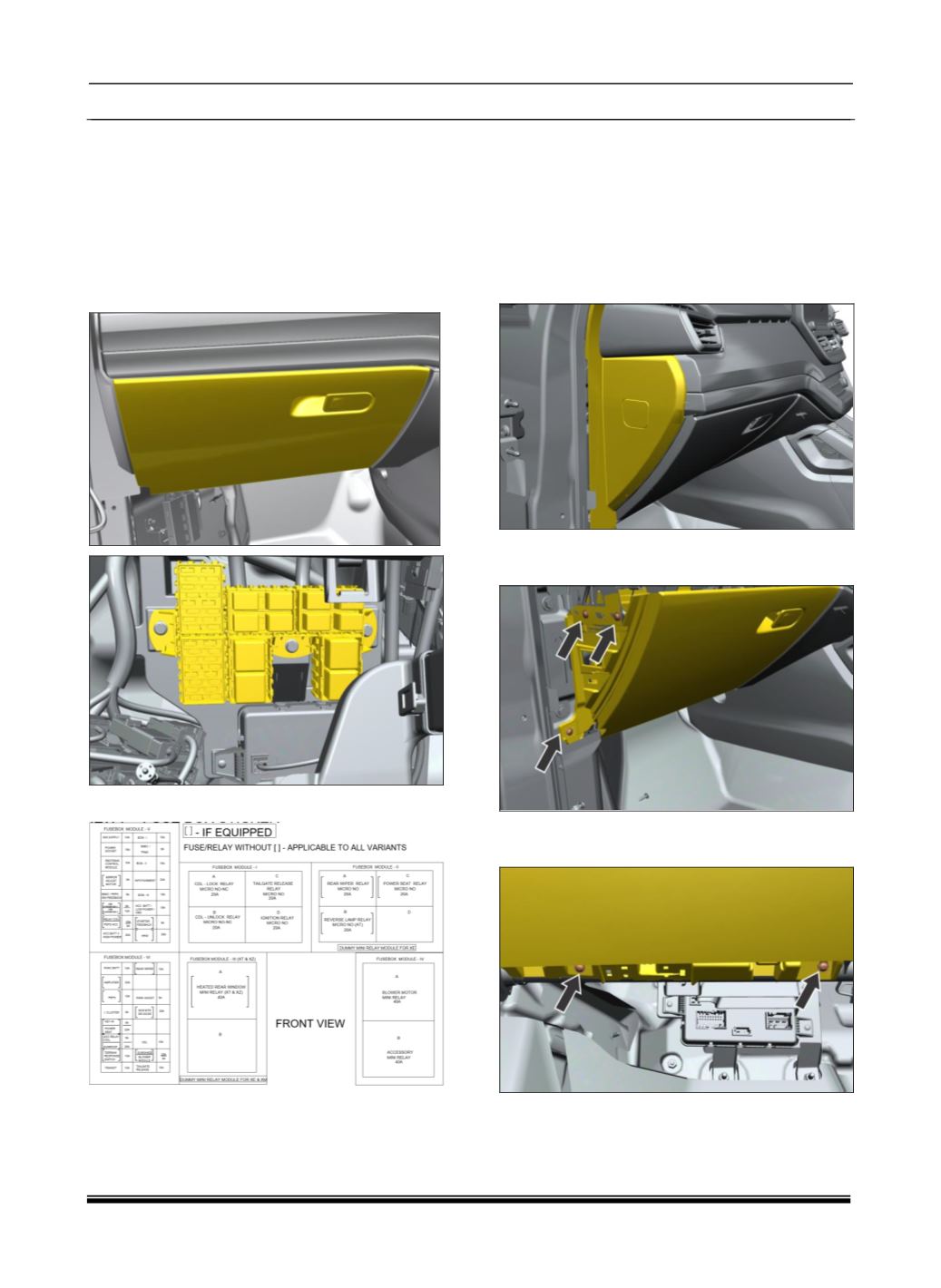

14.6 CABIN FUSE AND RELAY BOX
This fuse box is part of Cabin wiring harness. For
details refer the below fuse box sticker fitted on
dashboard inside the Glove box.. For other pin out
details of fuse box refer the power distribution II
circuit schematics.
LOCATION
Behind Glove Box.
CABIN FUSE AND RELAY BOX DETAILS
NOTE : For latest details refer Owner manual.
FUSE AND RELAY REPLACEMENT
Removal
Fuse box is located behind the glove box. To
access the fuse box, Glove box needs to be
removed first.
Remove
1. Remove snap fitted end-cover first.
2. Remove mounting screws at glow box
location
3. Remove screw at bottom and upper side glow
box and pay out glow box.
