BODY

10

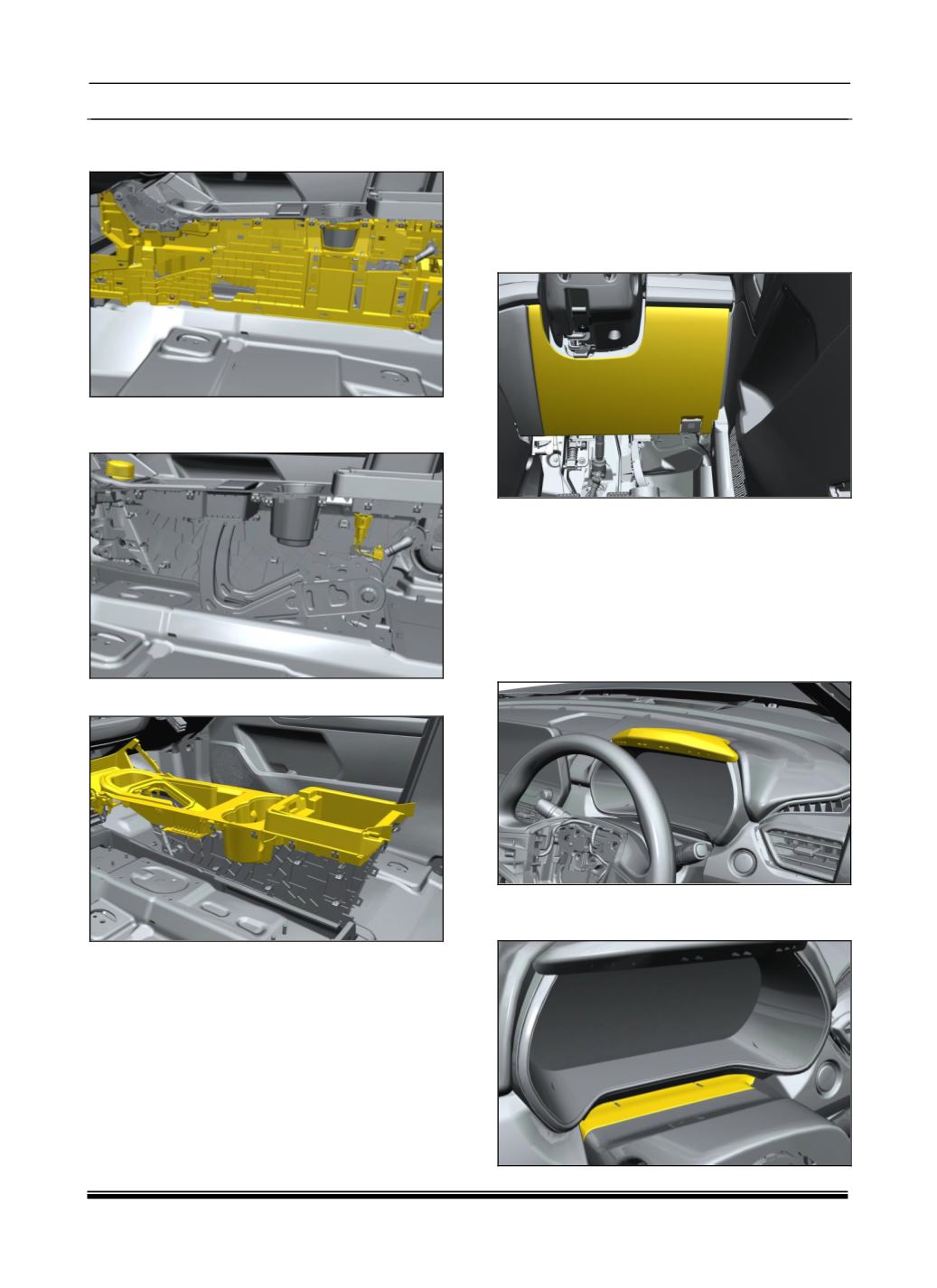

7. Remove the console structure assy mounting

screw both side.

8. Disconnect one electrical connections behind

the floor console assembly.

9. Pull out the upper console panel and take out.

1.4.4 DASHBOARD SKIN

REMOVAL

1. Remove steering wheel with Driver air bag (if

applicable) (For procedure refer steering wheel

removal process in steering section.)

2. Pull out Driver lower panel.

3. Remove nacelle Assembly. (For removal refer

steering column removal process in steering

section.)

4. Remove combination switch assembly and

ignition switch assembly (For procedure refers

combination switch and ignition switch removal

process in Electrical section.)

5. Pull out instrument cluster hood.

6. Pull out gap hider fitted on the dashboard sub

assembly.
