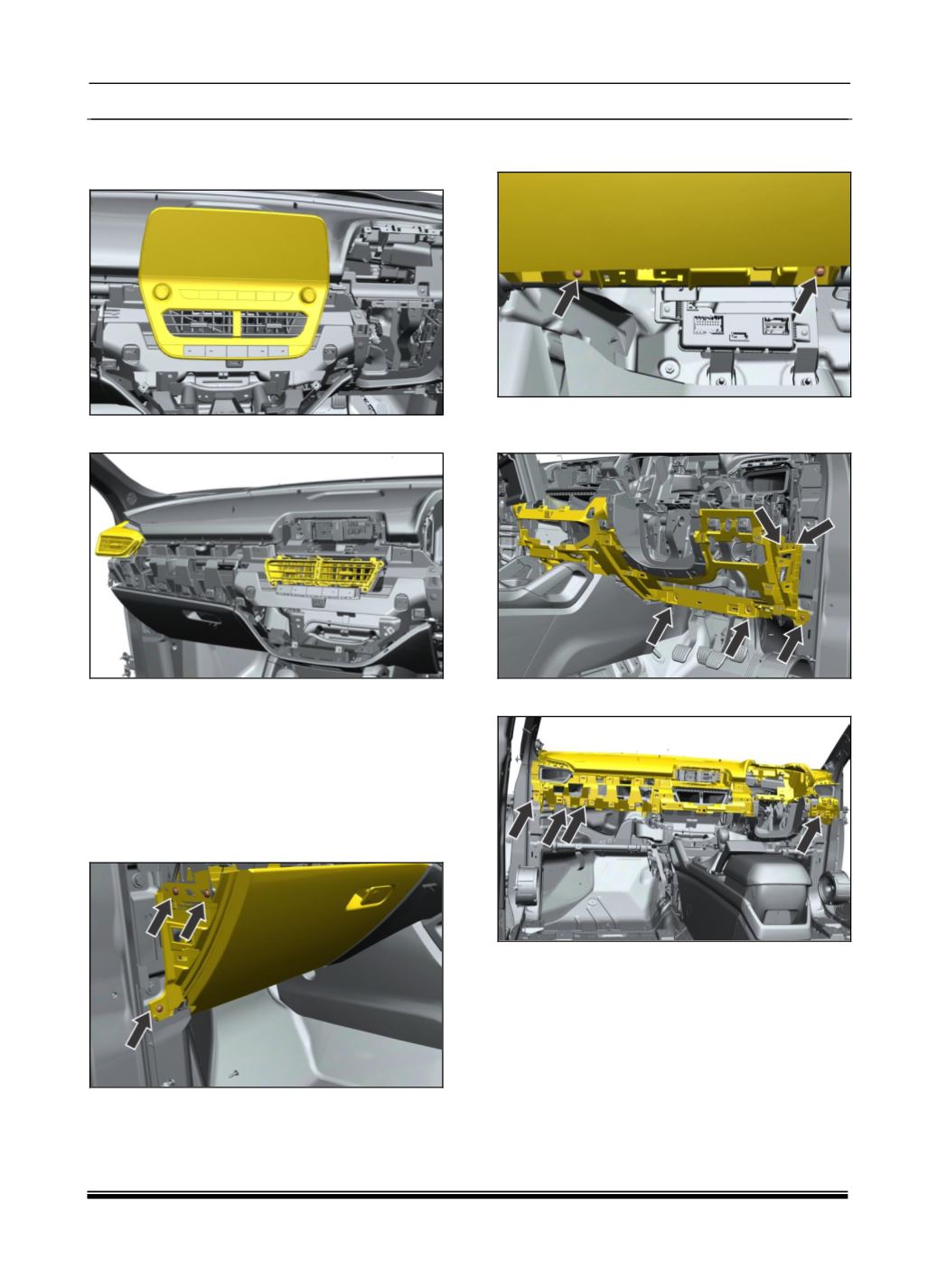

19. Remove music system (If applicable). (For
procedure refer music system removal
process in Electrical section)
20. Pull out the air vent
21. Remove floor console assembly. (For
procedure refer floor console removal
process).
22. Remove PAB Assembly (If applicable). (For
procedure refer PAB removal process in SRS
section).
23. Remove mounting screws at glow box
location.
24. Remove screw at bottom side glow box and
pay out glow box
25. Loosen remove the screw and pay out the
instrument panel, lower
26. Remove mounting bolts of dashboard
27. Disconnect two connections behind the
control panel assembly.
28. Remove A pillar Lower trim. (For procedure
refer A pillar trim removal process.)
