6. Remove the 2 mounting snaps and separate
the condenser assembly from vehicle.
CAUTION
Close the open ports with suitable cap.
FITMENT
For fitment follow reverse procedure of removal

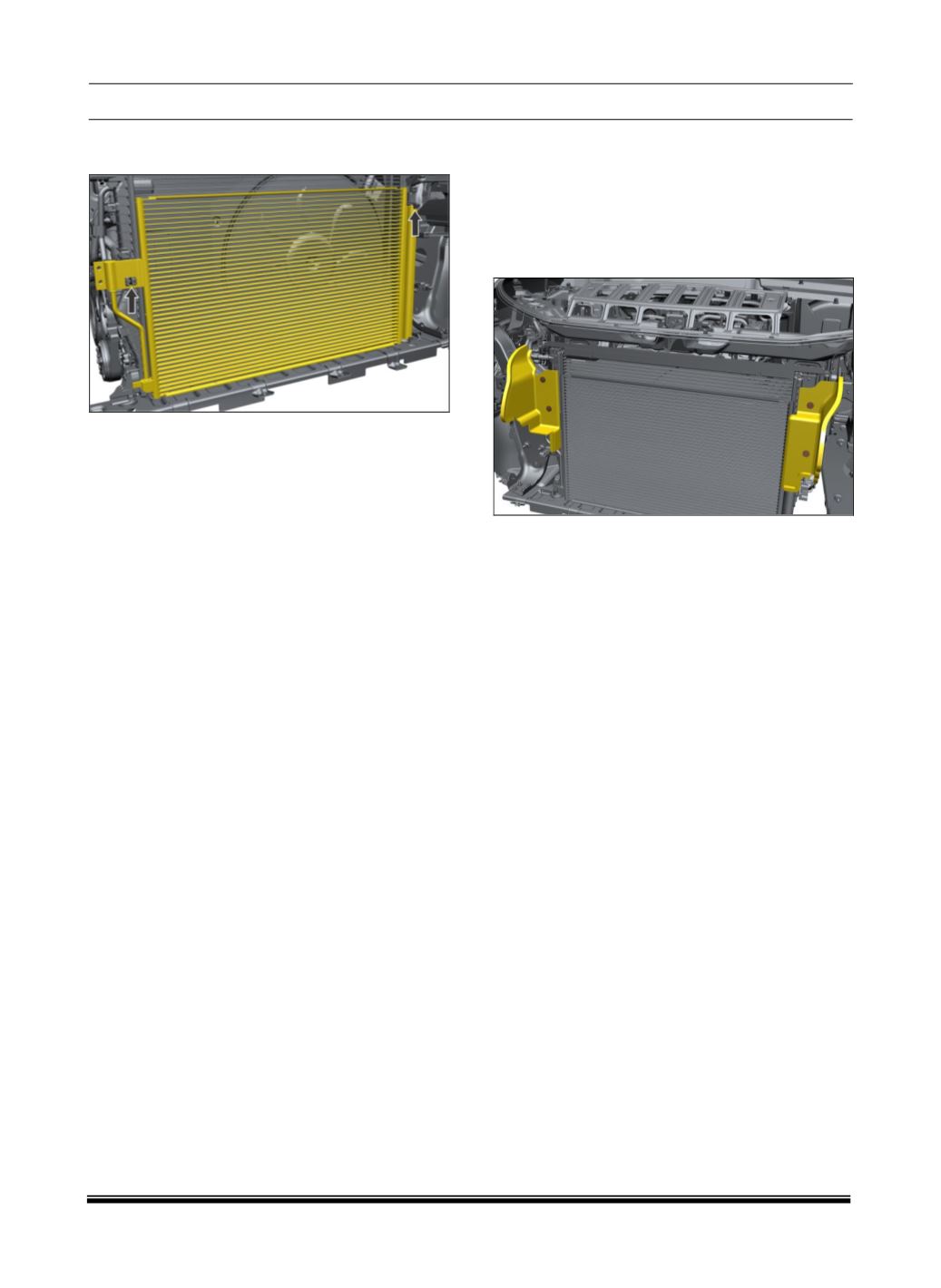

J. CONDENSER SEALING DUCT REMOVAL
1. Open the bonnet.
2.
Remove front bumper
(For procedure refer front
bumper removal procedure in body section)
3. Loosen and remove mounting screws and then
take out the air guide assembly.
4. Repeat same procedure for other side air guide
FITMENT
For fitment follow the reverse procedure of removal.
