FATC
55

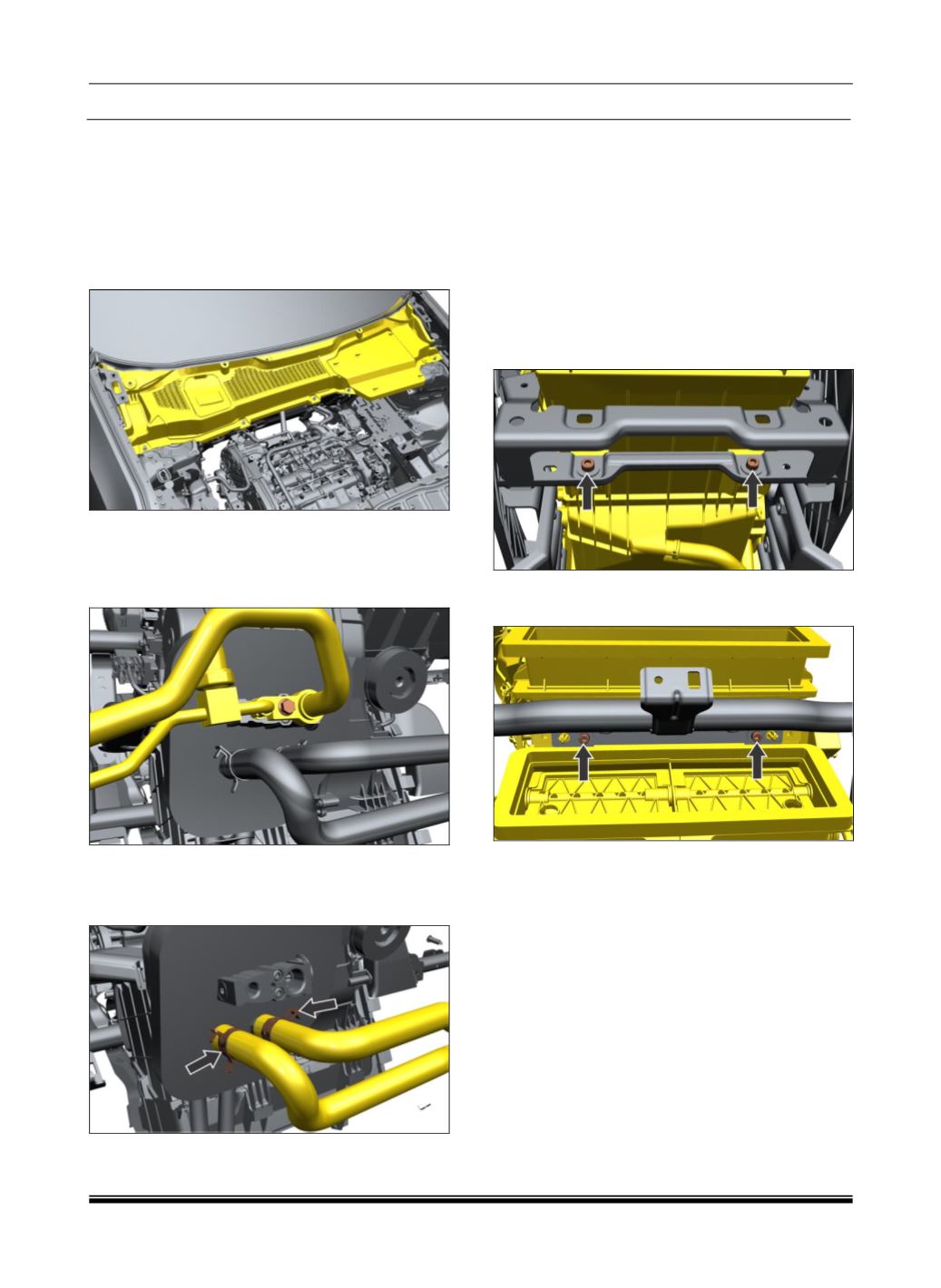

D. FRONT HVAC UNIT REMOVAL
1. Recover the refrigerant using standard recovering
equipment.
2. Remove dashboard assembly.
(For procedure
refer dashboard removal procedure in Body sec-
tion.)
3. Remove Plenum Assembly.
4. Disconnect all electrical connections.
5. Loosen and remove bolts and disconnect the inlet
and outlet lines i.e. high pressure line and low
pressure line and plug the ports.
6. Drain the coolant.
7. Disconnect the Heater inlet and heater coil outlet
pipes.
WARNING
The heater pipes contain hot coolant which may spill
out when disconnected, even if the coolant is
drained, so be careful while disconnecting them.
Keep a suitable container below to collect the cool-
ant that will flow out.
8. Loosen and remove the mounting bolts of support
tube on both side of HVAC unit and take out the
tubes.
9. Loosen and remove mounting cap screws on
HVAC lower mounting bracket as shown in figure
below
10.Loosen and remove mounting cap screws on
cross member assembly as shown in figure below
FITMENT
For fitment follow the reverse procedure of removal.
