HVAC
51

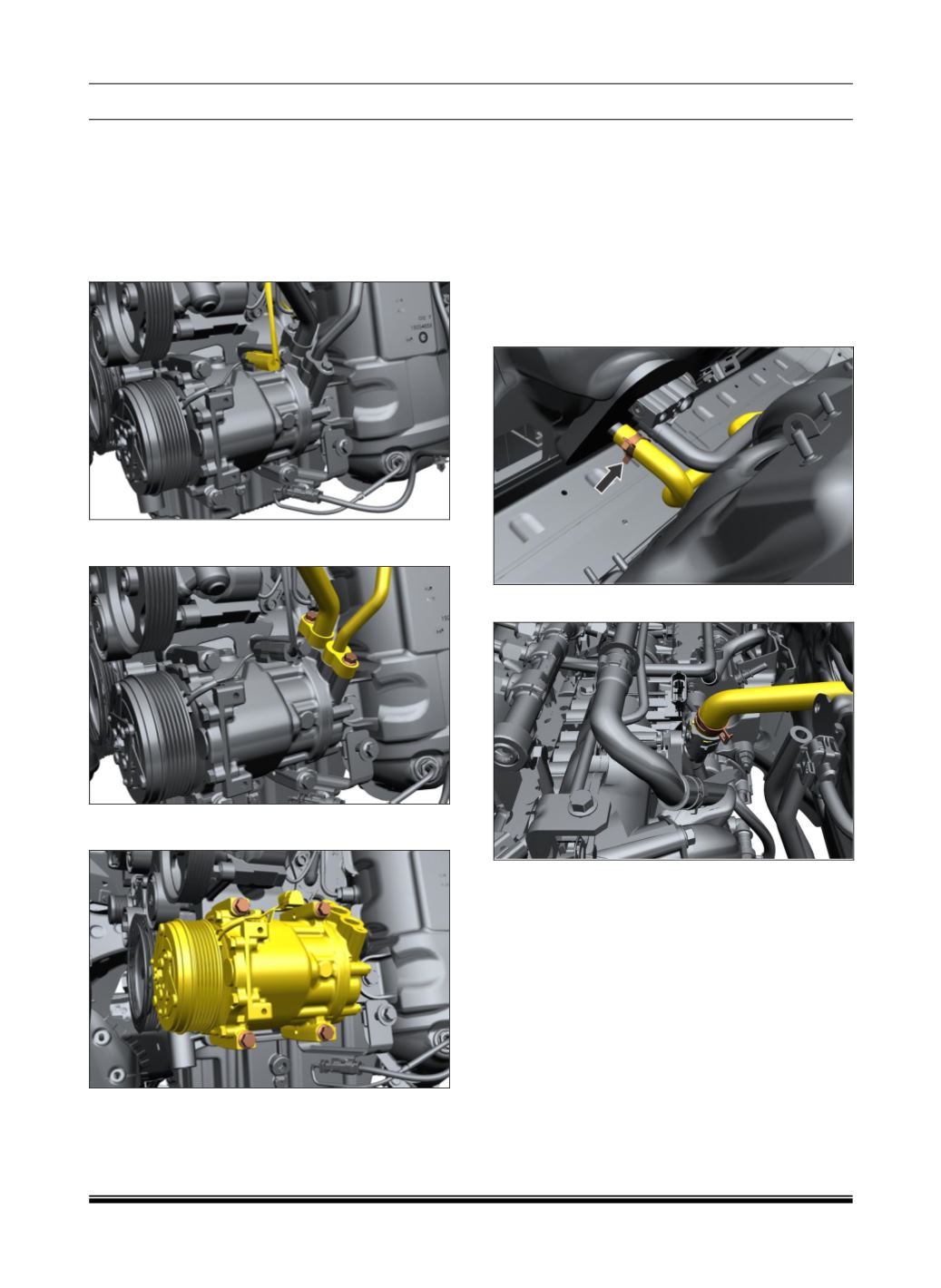

F. COMPRESSOR REMOVAL
1. Discharge the refrigerant using standard recover-
ing equipment. (
Refer maintenance section.)
2.
Remove the AC Compressor belt; (
refer AC
Compressor belt removal procedure in Engine
section.)
3. Remove Electrical Connection to compressor.
4. Disconnect the Suction line and the discharge
line.
5. Loosen and remove four mounting bolts and re-
move Compressor.
FITMENT
For fitment follow the reverse order of removal.
Tighten the following fasteners to the recommended
torque.
i) Compressor mounting.
ii)
Refrigerant lines on compressor.
G. HEATER HOSE REMOVAL
a) HEATER OUTLET HOSE REMOVAL
1. Remove clamp spring band from firewall side.
2. Remove clamp spring band from engine side.
3. Remove heater hose HVAC out.
FITMENT
For fitment follow the reverse procedure of removal.
