HVAC
46

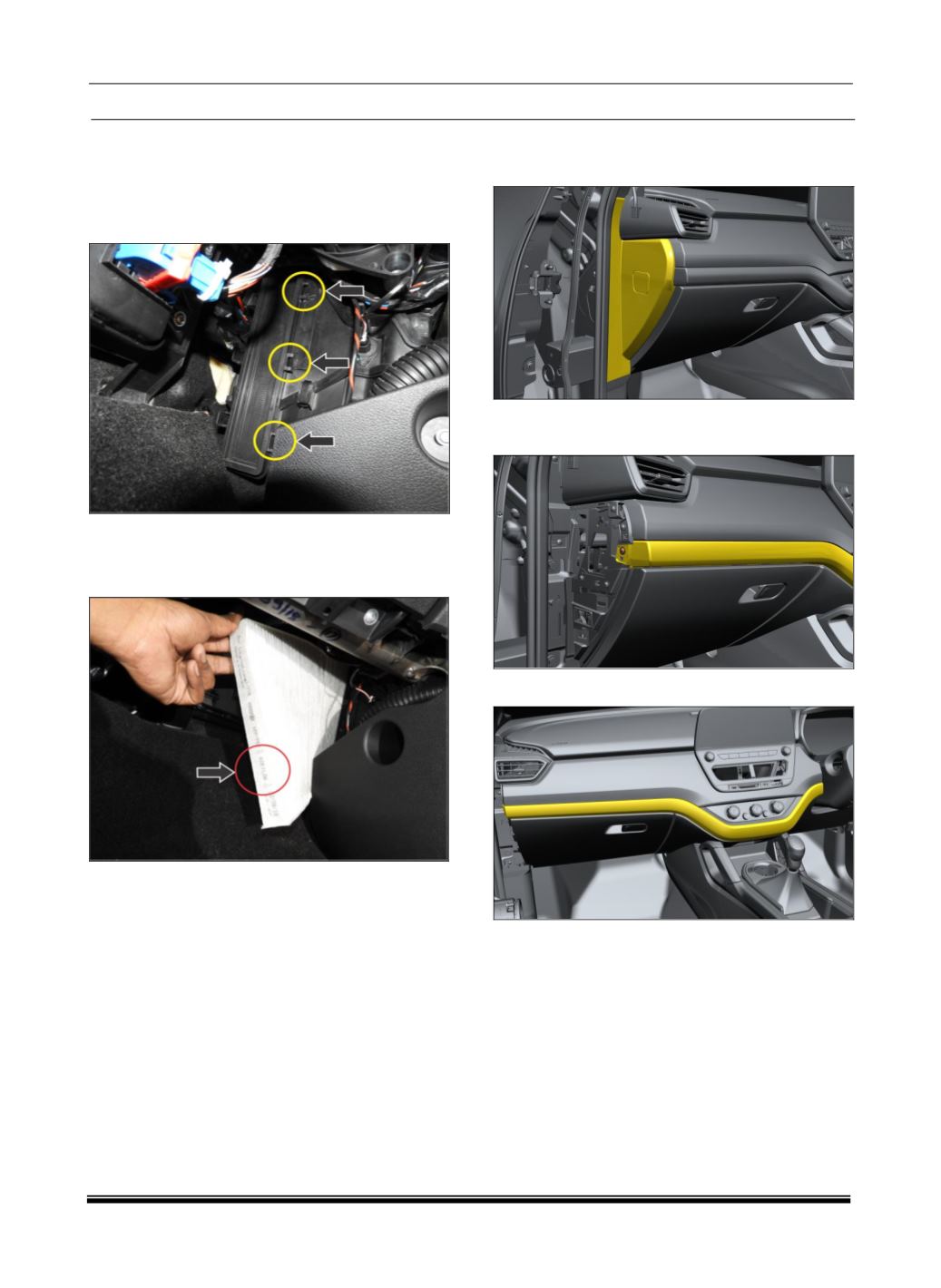

16. ON VEHICLE REPAIRS
A. AC FILTER REMOVAL
1. Remove three snap on Air Filter cover.
2. Take out AC Filter cover.
3. Take out AC Filter.
CAUTION:
Always Position Arrows on AC Filter to-
wards Engine Fire wall.
FITMENT
For fitment follow the reverse procedure of removal.
B. CONTROL PANEL REMOVAL
1. Pull out end cover.
2. Remove one mounting screw on co-driver side
armature.
3. Remove the co-driver side armature.
