BRAKES
41

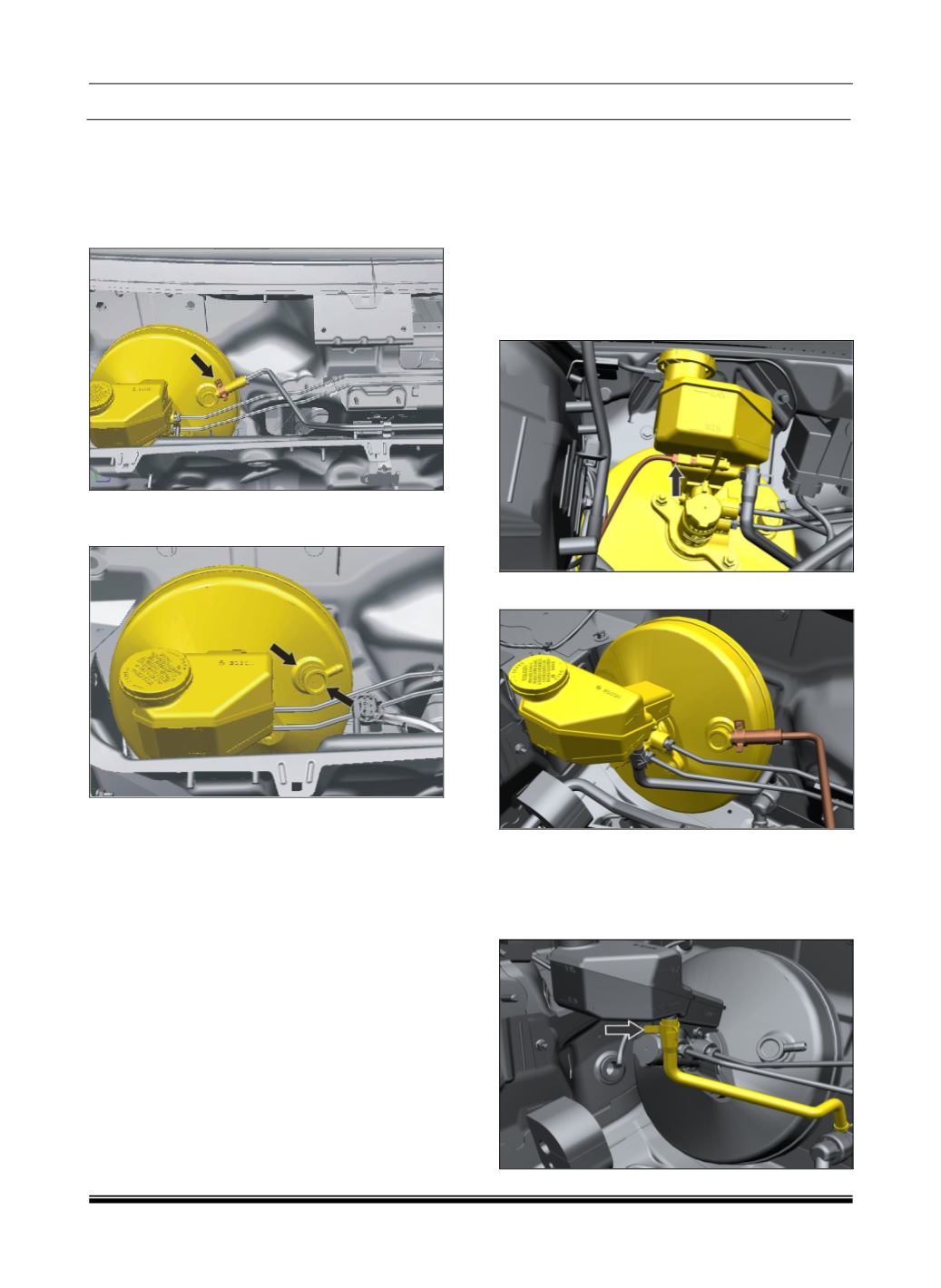

BOOSTER NRV
REMOVAL
1. Disconnect the spring band clamp and remove
the vacuum line connected to the non-return
valve.
2. Loosen and remove the NRV from the booster
by rotating it in anticlockwise direction.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
Vacuum pipeline routine/ vacuum hose orientation
to be ensured after fitment.
BOOSTER ASSEMBLY.
REMOVAL
1. Position vehicle on two post lift and
disconnect battery.
2. Drain the brake fluid from the brake circuit.
(For procedure refer brake fluid draining in
this section.)
3. Disconnect the electrical connector of brake
fluid level switch.
4. Disconnect vacuum hose from brake booster.
5. Remove the spring band clamp at the Clutch
port and hold the CMC to reservoir connecting
hose in vertically upward position to avoid any
further loss of fluid and plug the openings with
suitable cap.
