SUSPENSION
27

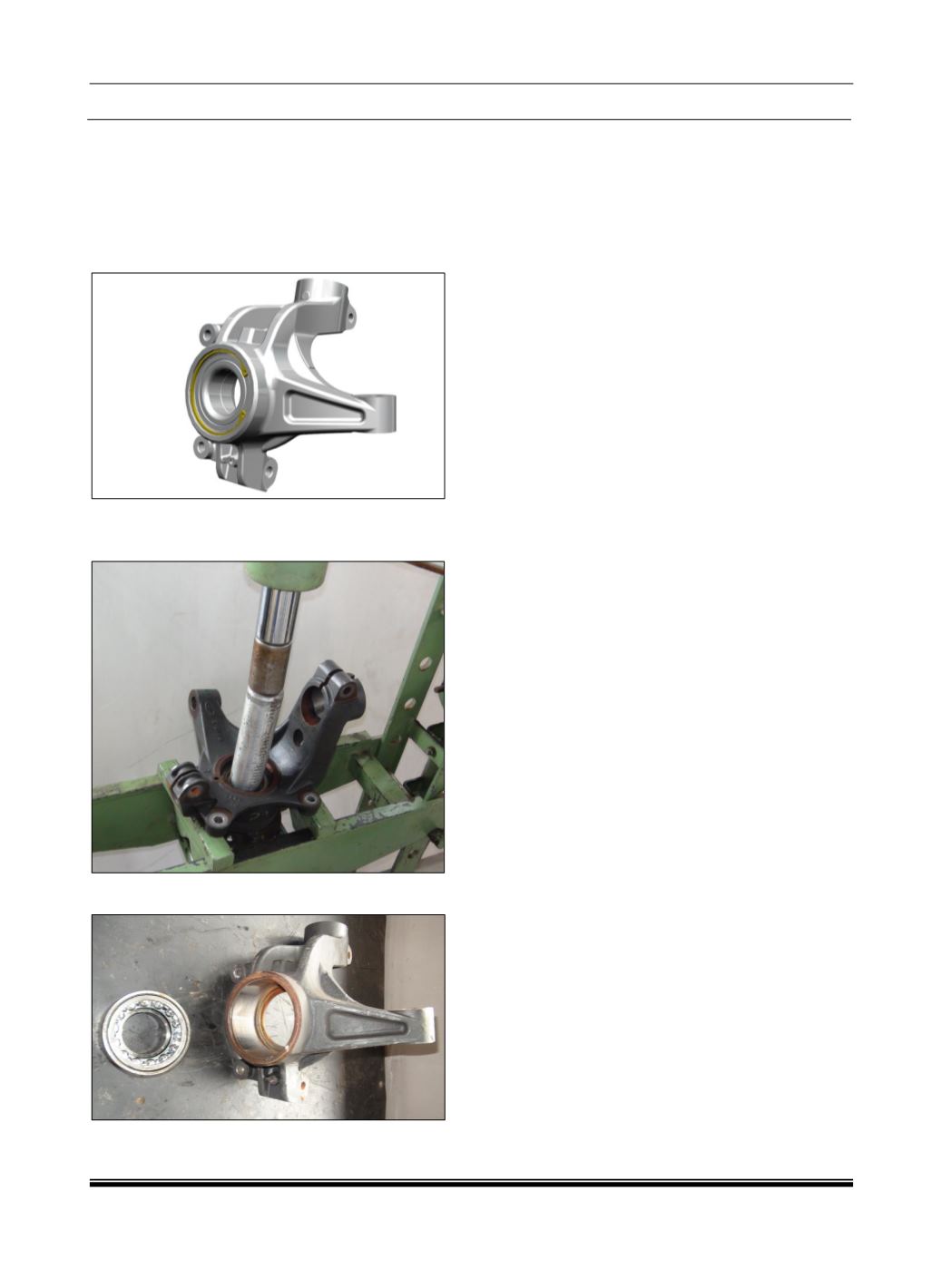

13. ON BENCH REMOVAL AND ASSEMBLY
OF WHEEL HUB
1. Remove the knuckle Assembly from
vehicle.(Refer Front suspension removal
Procedure)
2. Remove circlip from knuckle.
3. Remove Hub Assembly using press & Tool
Required.
4. Remove inner race of bearing from the hub.
ASSEMBLY:
1. Follow the above steps in reverse order in
appropriate sequence for its assembly.
2. Tighten the heat shield screw to 0.9 kg-m.
3. Tighten drive shaft nut 30 ± 1.5 kg-m torque
and lock by staking.
4. Ensure that oil seal in transaxle is not
damaged while fitting drive shaft.
PRECAUTION:
Use a new hub bearing and new circlip.
SUB ASSEMBLY - KNUCKLE / HUB:
Clean all the parts thoroughly and replace
damage / worn out parts.
1. Fit bearing in the knuckle
2. Fit circlip.
3. Place the knuckle assembly over the hub.
Press the knuckle assembly on the hub.
