CLUTCH RELEASE SYSTEM
4

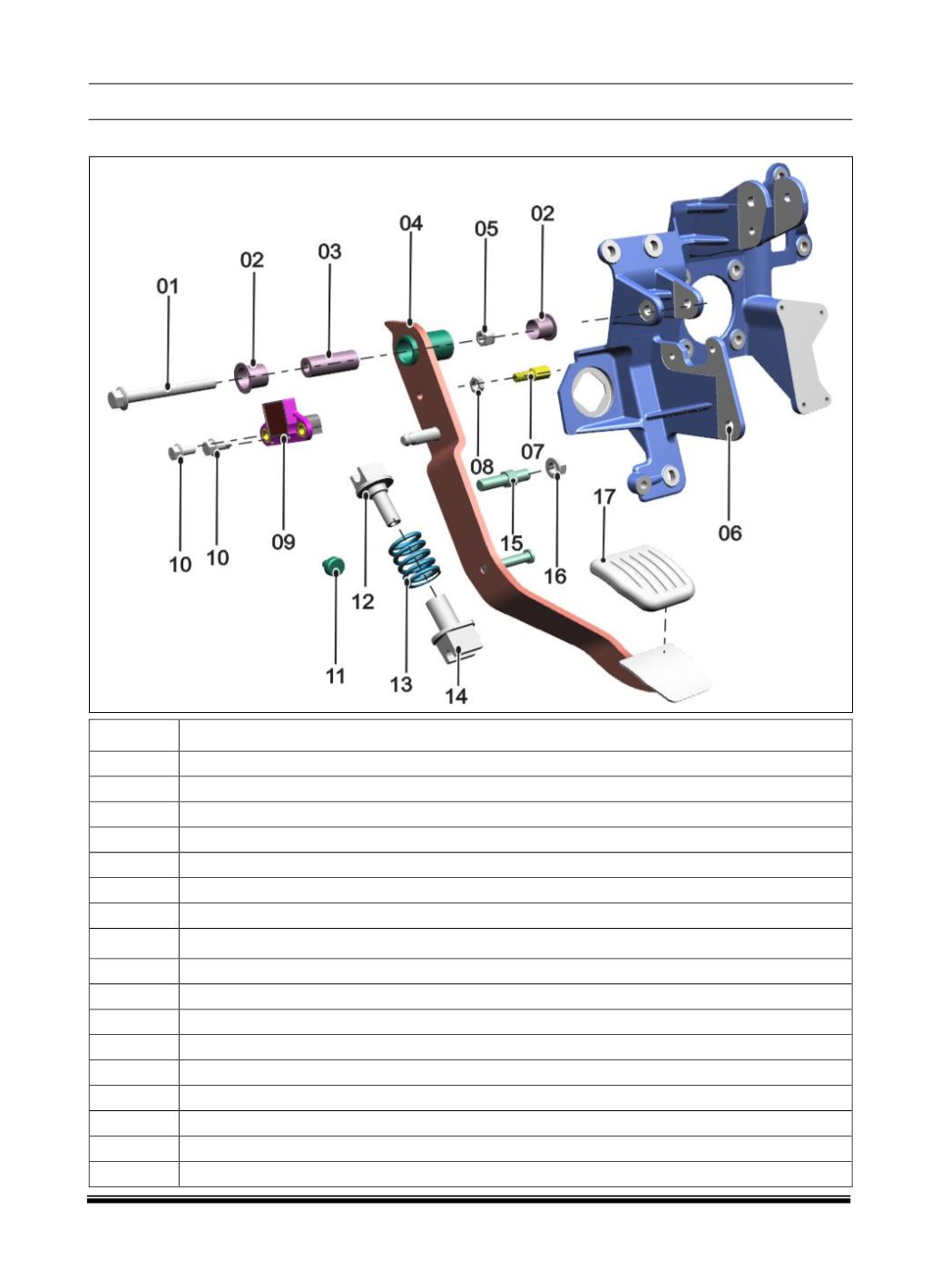

4. CLUTCH PEDAL ASSEMBLY
ITEM
DESCRIPTION
1
HEX FL BOLT M8X70
2
BUSH
3
SPACER
4
CLUTCH PEDAL LEVER
5
NYLOC NUT M8
6
BRACKET CONTROL MTG
7
CONTACTLESS CLUTCH SENSOR
8
HEX THIN NUT M8
9
CLUTCH SENSOR
10
HEX FL SCREW
11
RUBBER STOPPER CLUTCH PEDAL
12
ASSITANCE GUIDE SEAT TOP
13
COMPRESSION SPRING CLUTCH PEDAL
14
ASSISTANCE SPRING SEAT BOTTOM
15
PIN CLUTCH ASSISTANCE SPRING (TOP)
16
HEX FL NUT
17
RUBBER COVER
