DRIVESHAFT
1
1.1. GENERAL INFORMATION
Driveshaft assemblies transmit engine power to independently suspended wheels. They consist of an inner
and outer constant velocity joint connected by an axle shaft.
CV joint allows the driveshaft to transmit torque
at constant speed and at wide variety of angles.
Outer joint
connects to wheel end side and Inner joint fits at differential side.
Outer joint
allows the wheels to steer while axle is rotating. (Fixed type joint).
Inner joint
allows for suspension movement while axle is rotating. (Plunging type Joint).

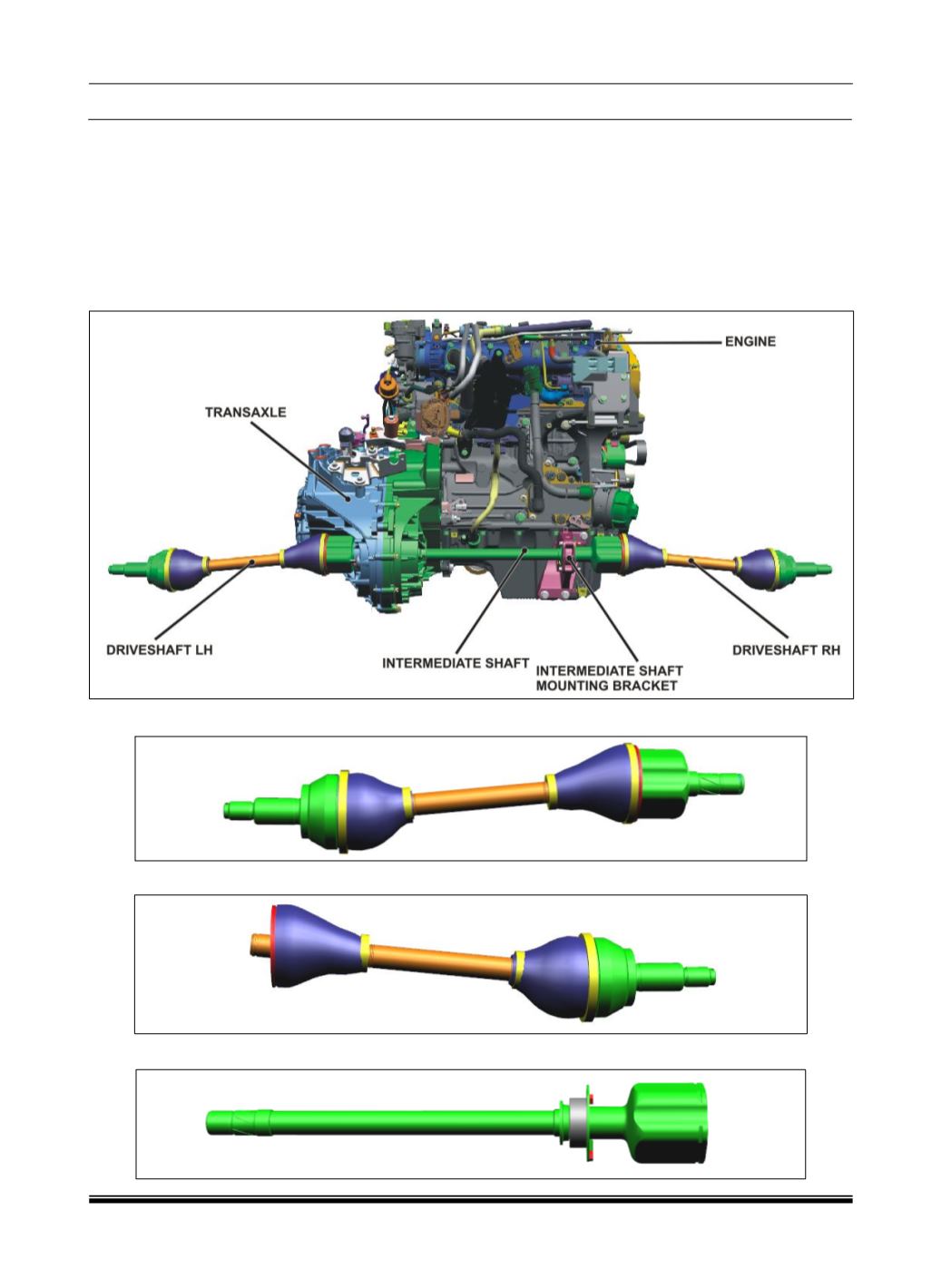

DRIVESHAFT LAYOUT
DRIVESHAFT LH
DRIVESHAFT LH
INTERMEDIATE SHAFT
