235 / 745
C635 TRANSAXLE
48
DRIFT 2654 5890 2605

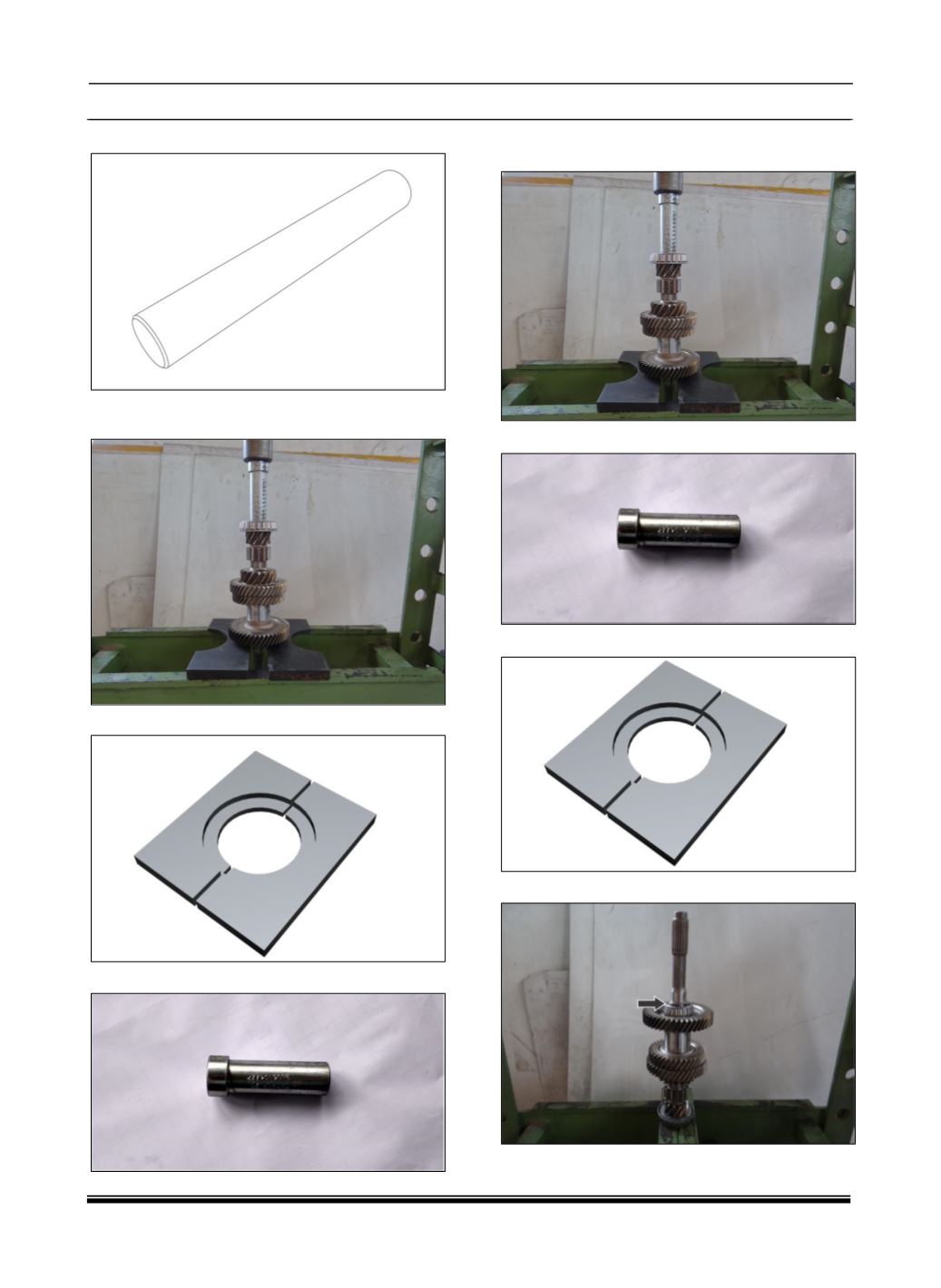

5. Install the forth-sixth gear using press mounting
plate
SUPPORT PLATE - 5412 5890 2606
Drift Part No.2779 5890 3504
6. Install the front bearing using press mounting
plate
Drift Part No.2779 5890 3504
Press mounting plate 5412 5890 2606
7. Install the snap ring.
8. Install a NEW
rear bearing retention bolt, tighten
to 56 Nm (41 ft. lbs.)
