LV ELECTRICAL SYSTEM
12

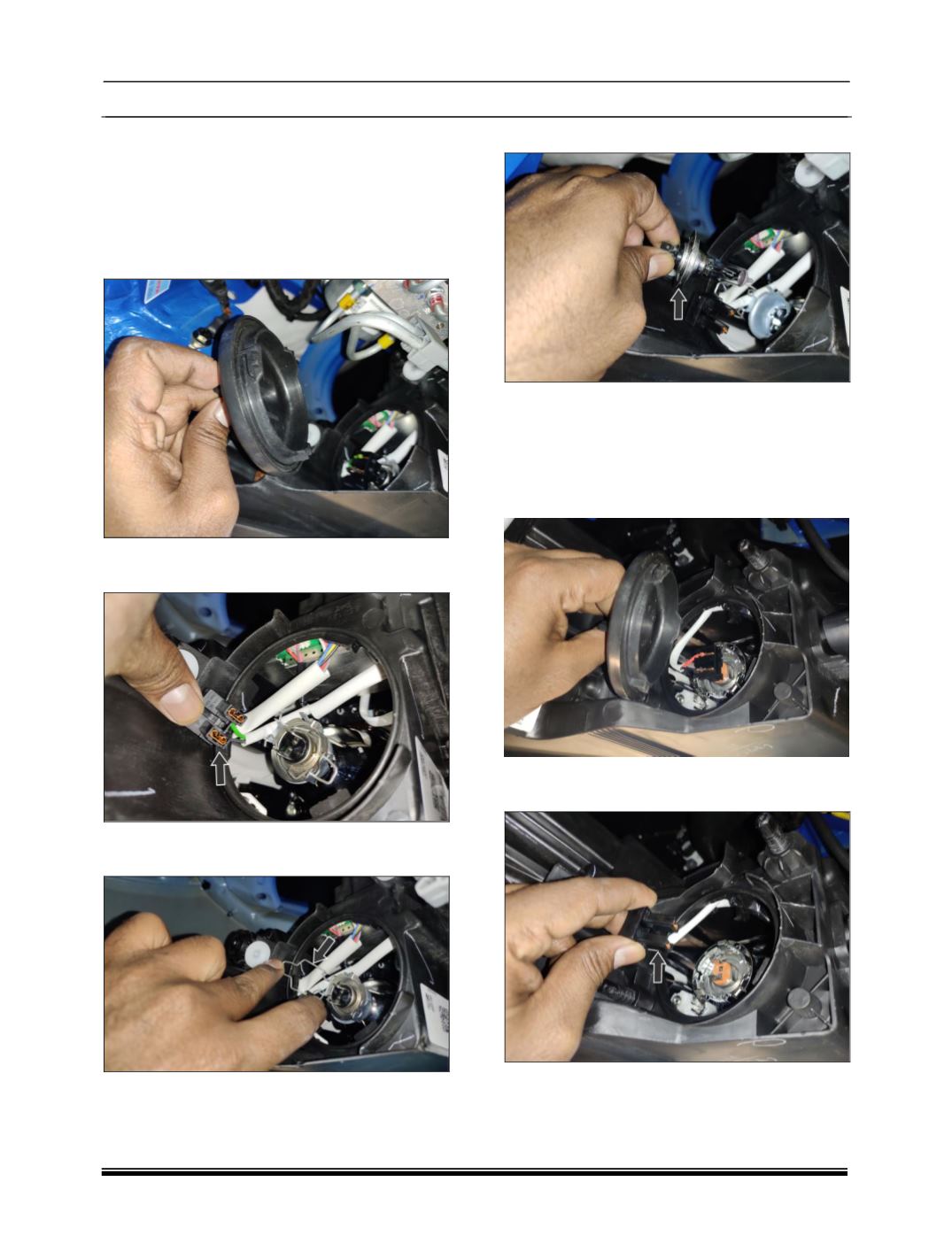

B. HEAD LAMP BULBS REPLACEMENT
FOR PROJECTOR BEAM BULB REMOVAL
1. Remove Battery –Ve terminal.
2. Open engine hood.
3. Rotate the position lamp cover in clockwise
direction and take it out.
4. Disconnect electrical connection on Projector
lamp.
5. Unlock beam bulb holder clip, by pushing it
backward.
6. Take out bulb.
REFITMENT
Follow the reverse procedure of Removal.
FOR HIGH BEAM BULB REMOVAL
1. Rotate the High Beam lamp cover in
clockwise direction and take it out.
2. Disconnect electrical connection on High
beam lamp.
3. Press down the bulb to Unlock High beam
bulb.
4. Take out High beam bulb.
