LV ELECTRICAL SYSTEM
10

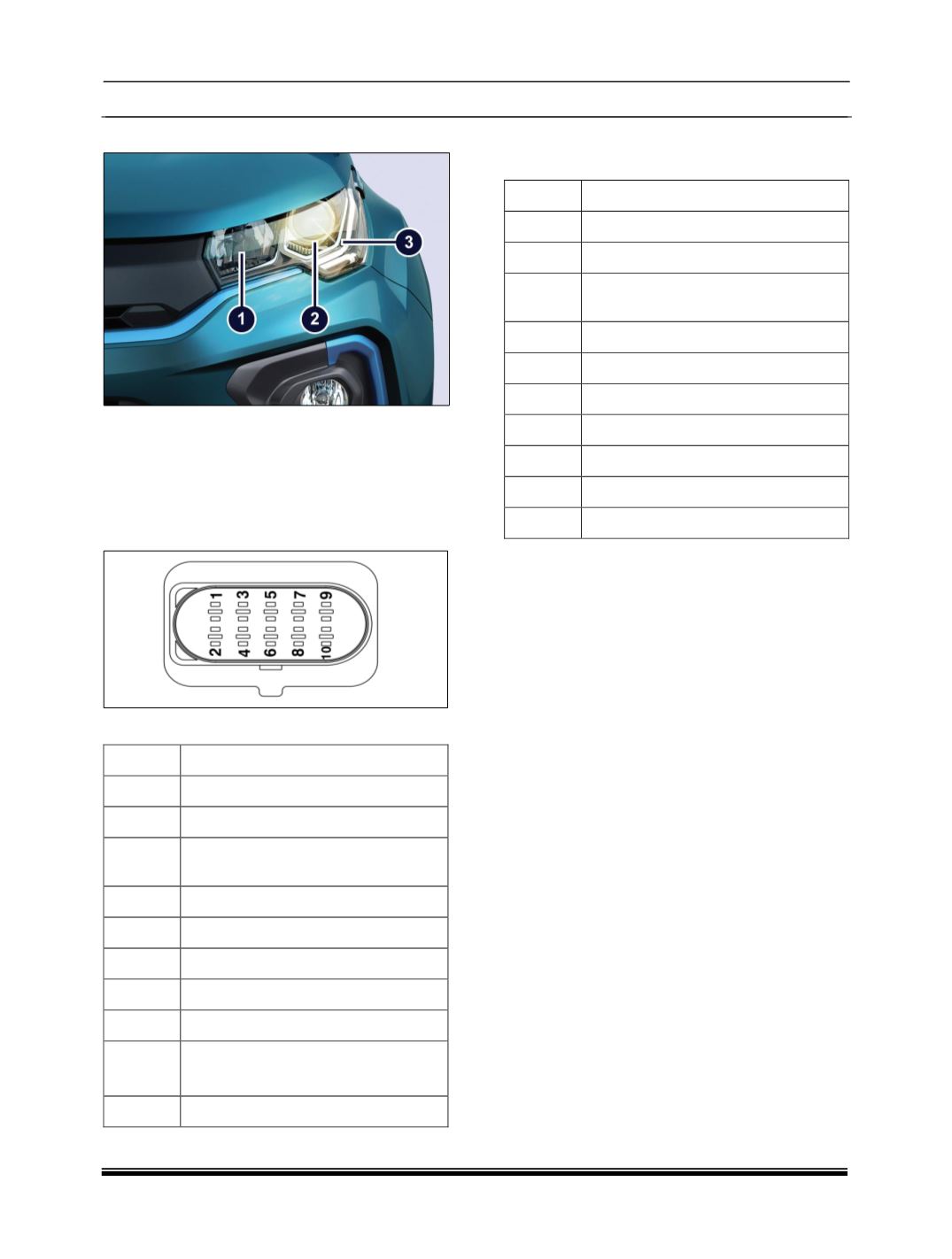

3.4 HEAD LAMP
1. High beam headlamp
2. Low beam projector headlamp
3. Parking lamp/DRL/Turn Indicator lamp
PINOUT DETAILS
Head lamp connector
i. For Low version
PIN
DESCRIPTION
1
Low Beam +VE (H7)
2
High Beam +VE (H7)
3
Ground (Low Beam + High Beam +
Internal VAC)
4
Internal VAC +VE
5
Internal VAC Signal
6
DRL +VE
7
Position +VE
8
Dummy
9
Ground (DRL / POSITION / FTI)
(IF APPLICABLE)
10
Dummy
ii. For High version
PIN
DESCRIPTION
1
Low Beam +VE (H7)
2
High Beam +VE (H7)
3
Ground (Low Beam + High Beam +
Internal VAC)
4
Internal VAC +VE
5
Internal VAC Signal
6
DRL +VE
7
Position +VE
8
FTI +VE
9
Ground (DRL / POSITION / FTI))
10
Dummy
