NEXON EV
X114H
DTC Troubleshooting Data
Version: 3.0
Date: 27-May-2020
`
87
Author: K Tejaswini Manasa/ Navya Krishnan/Gaurav Jha
Copyright © TATA MOTORS Ltd.
This document must not be used in anyway, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
After rectification, ensure the following points by referring DCDC parameters using TML diagnostic tool before handing over to
customer.
a) DCDC converter charging LV battery in the range of 8V to 16V
Schematic Block Diagram:-

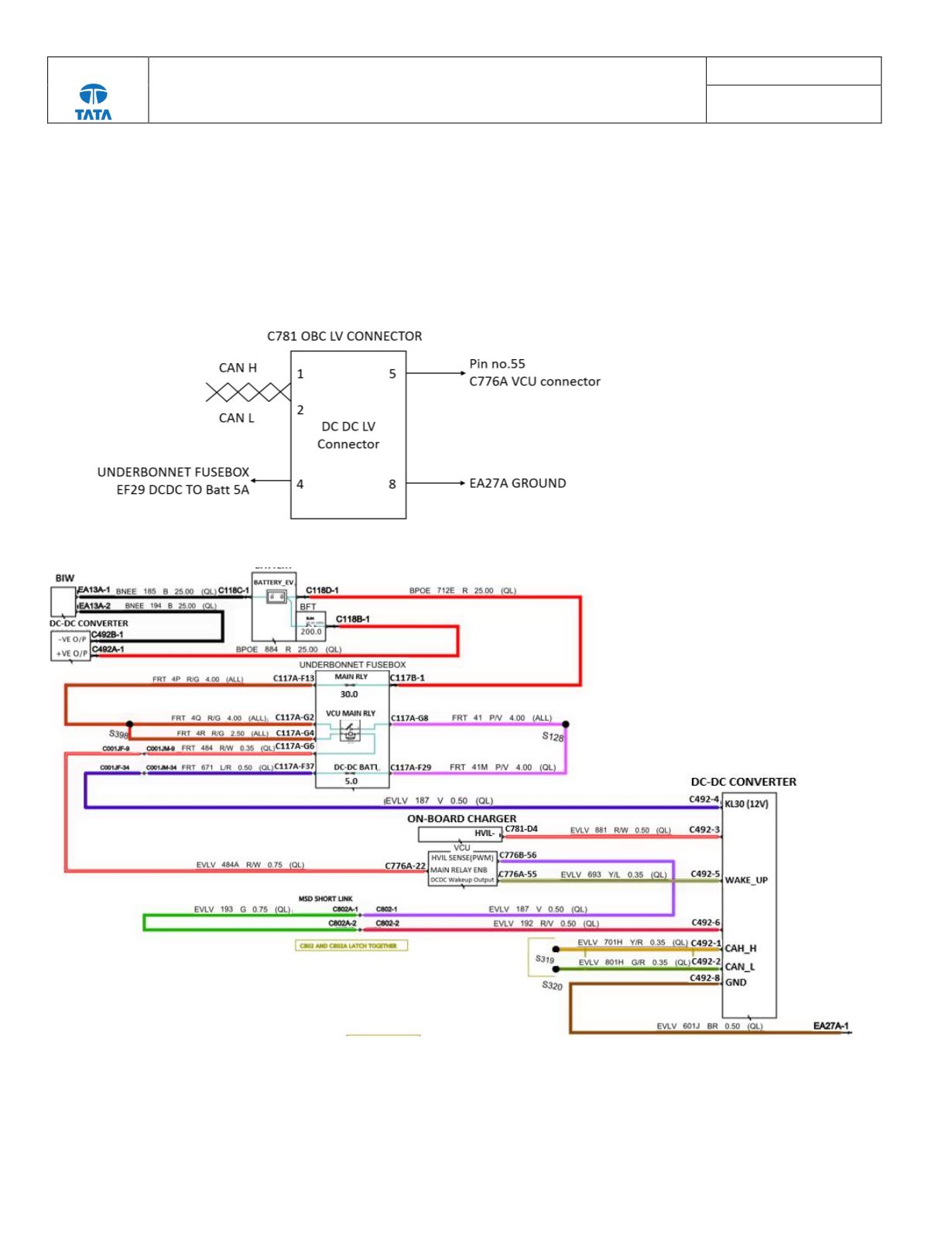

LV Service Schematic:-
