NEXON EV
X114H
DTC Troubleshooting Data
Version: 3.0
Date: 27-May-2020
`
95
Author: K Tejaswini Manasa/ Navya Krishnan/Gaurav Jha
Copyright © TATA MOTORS Ltd.
This document must not be used in anyway, such as copying and redistributing to third parties, without the consent of author.
DTC
’
s
confirmation:-
After rectification, ensure the following points by referring OBC parameters using TML diagnostic tool before
handing over to customer.
a) Check whether the OBC can respond to the vehicle charging command by observing the Charge ON
indicator lamp on the cluster.

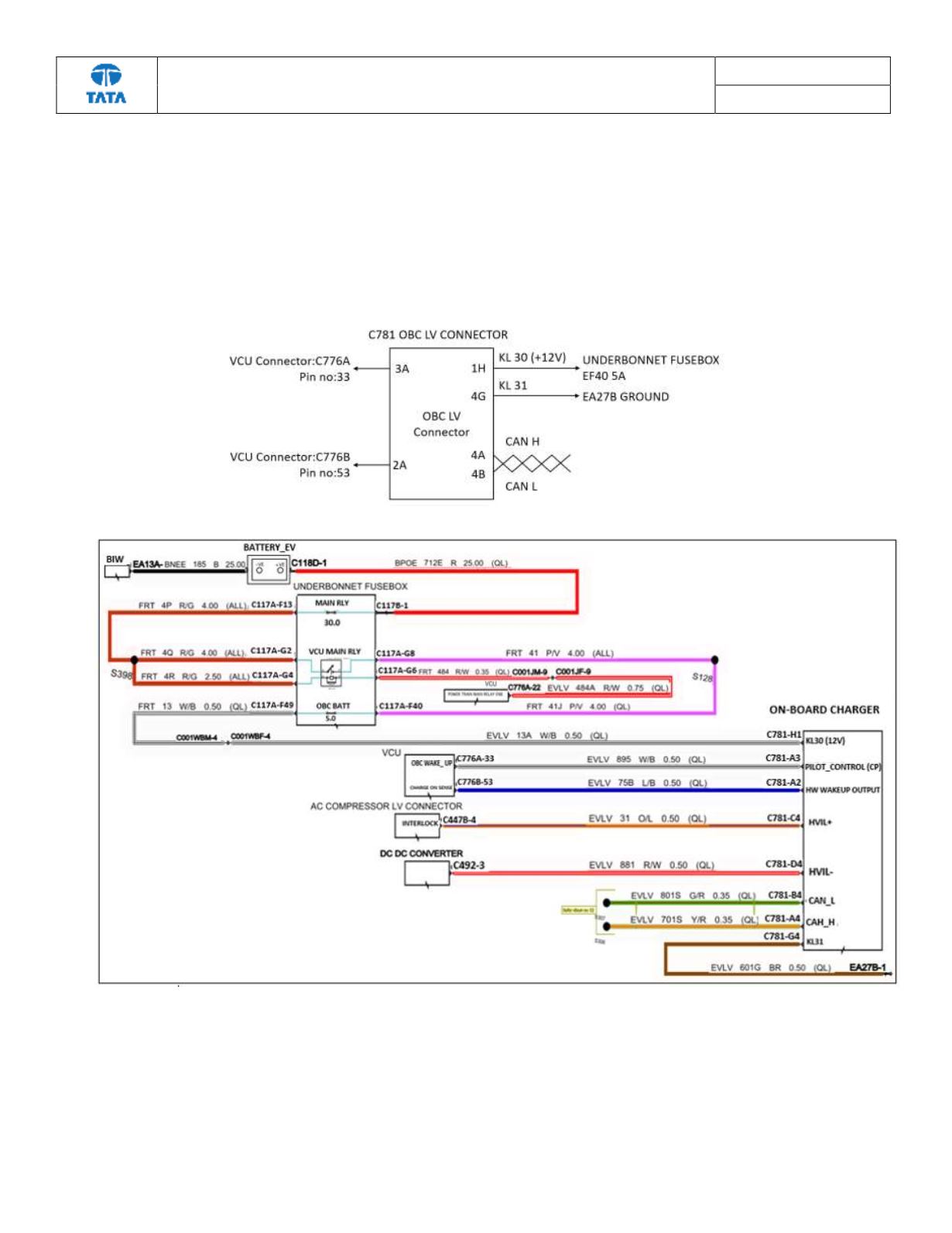

LV Schematic & Block Diagram:-
LV schematic:-
