a) Check whether the OBC can respond to the vehicle charging command by observing the Charge ON
indicator lamp on the cluster.

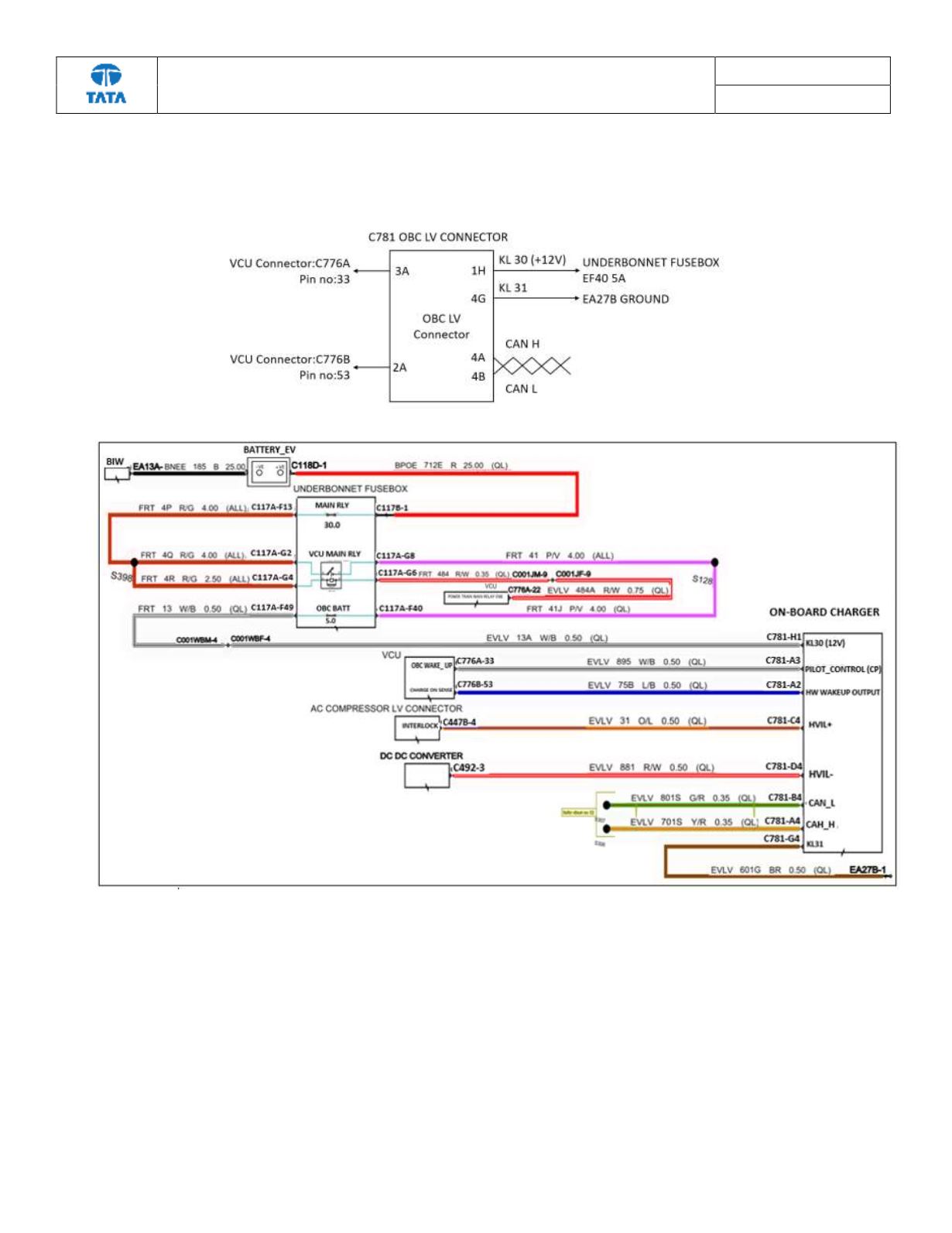

LV Schematic & Block Diagram:-
LV schematic:-
