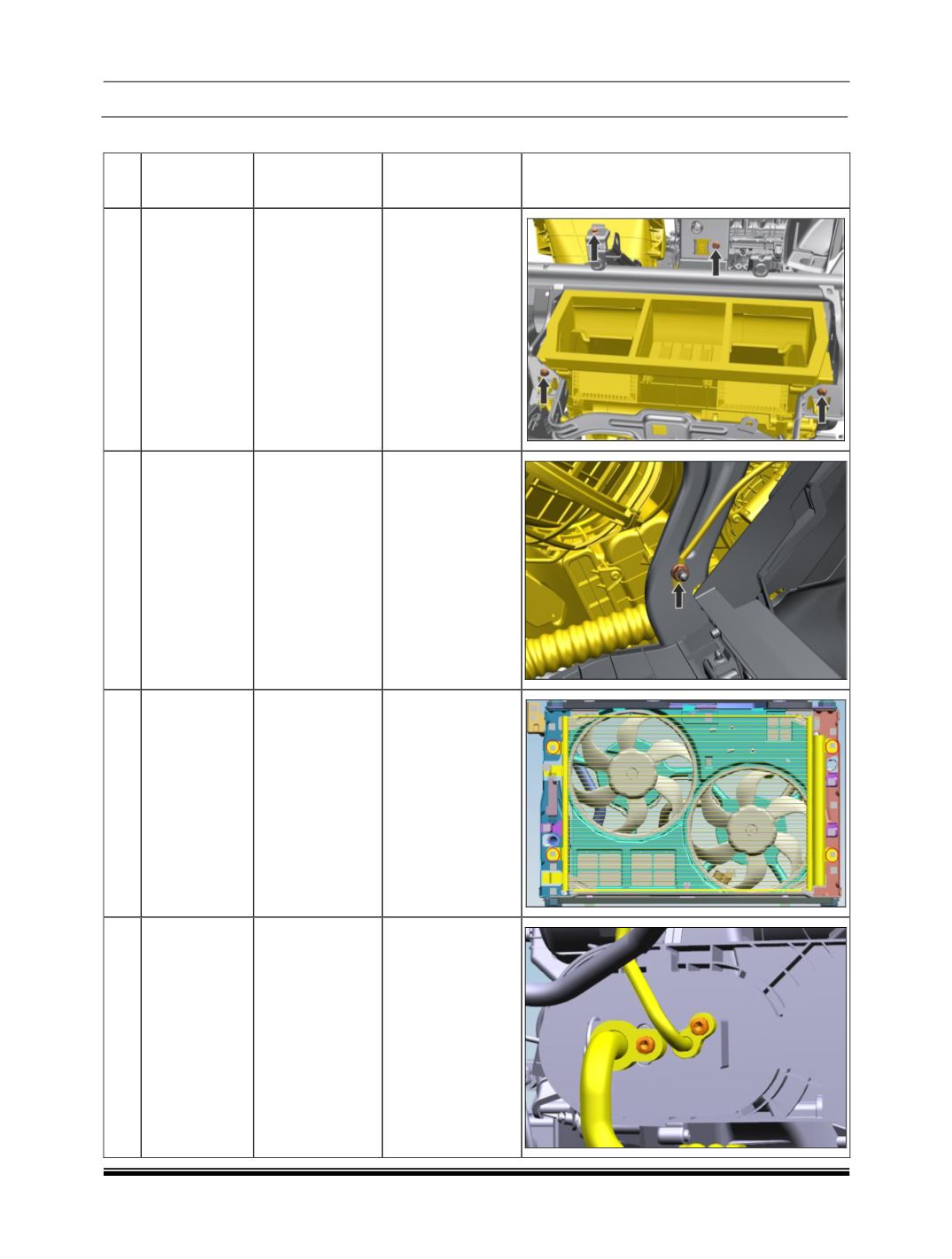

2. TIGHTENING TORQUES
SR
NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
1
Front
HVAC
mounting
Hex FL SCR
M5X20 TS17130-
8.8-SS8451S2-Y
4 – 6
2
Front
HVAC
Ground Cable
Mounting
HEX FL NUT
AM6 TS17430-8-
SS8451S2-Y
2.3 ± 0.2
3
Condenser
mounting on
Frame
M6X16 TS17130-
8. 8-SS845162-B
6 – 8
4
Refrigerant
lines to HVAC
unit
M6 X 20
6 – 8
