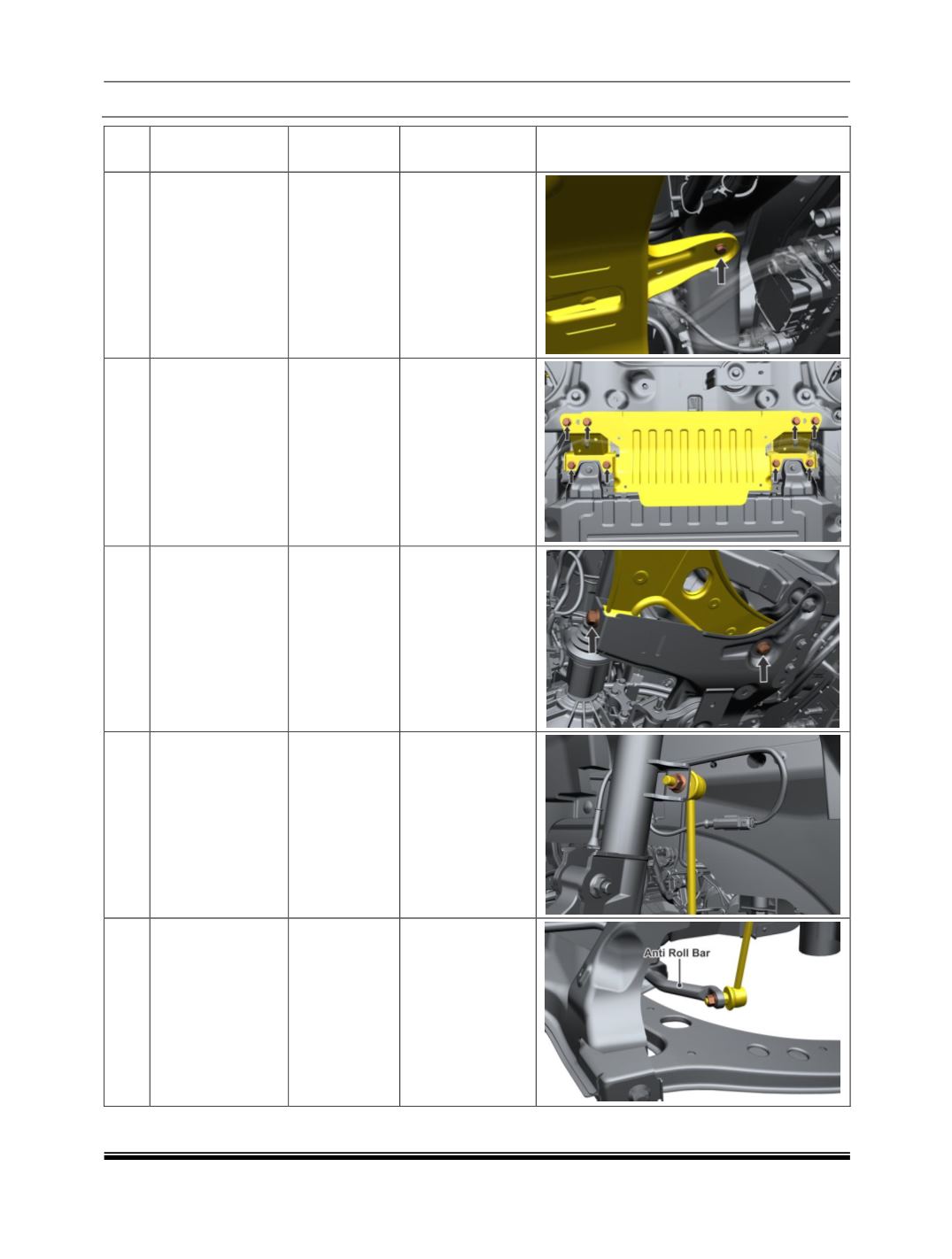

234 / 801
SUSPENSION
7
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE
VALUE (Kg-m)
LOCATION
5
Sub frame
mounting bolts(at
center)
HEX FL
SCREW
M8X20
3
6
Sub frame Crash
mtg.
Bolt – RH/LH
FL SCR
M12X40
TS17130-
10.9
SS8457S1-
BL-C
8
7
Lower link to sub
frame mounting
M14X1.25
18
8
Stab link
mounting on strut
S/LOCK H/FL
NUT M10
6
9
Stab link on anti-
roll bar
S/LOCK H/FL
NUT M10
6
