LV ELECTRICAL SYSTEM
119

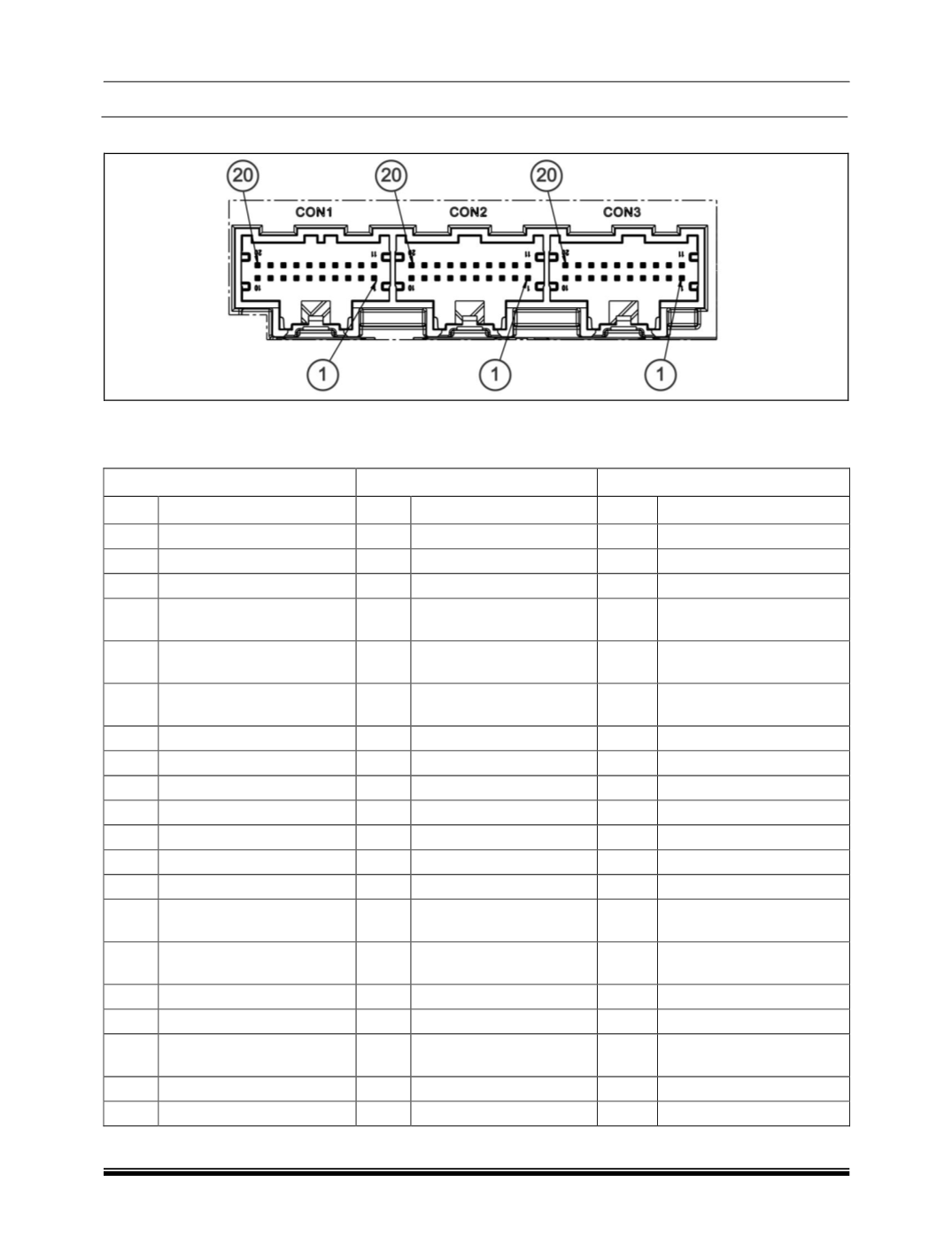

B. PINOUT DETAILS
C. CONNECTOR DETAILS
NOTE:
Some features may not applicable for NEXON EV mention in pin details).
CONNECTOR 1
CONNECTOR 2
CONNECTOR 3
PIN
DESCRIPTION
PIN
DESCRIPTION
PIN
DESCRIPTION
1
Trunk Sw Gnd
1
Clutch10PercSwSig
1
PEPS_ ECU_ Gnd
2
NC
2
Brake Sw Sig
2
NC
3
NC
3
Clutch 90 Perc Sw Sig
3
NC
4
Co-Driver Door Handle
Sw Gnd
4
NC
4
NC
5
Driver Door Handle Sw
Gnd
5
StartStopSwGnd2
5
CAN_H
6
Front _Antenna _Low
6
Start Stop Sw_ ACC
LED
6
NC
7
NC
7
Start Stop Sw_ IGN LED
7
NC
8
Back _Antenna _Low
8
Start Stop Sw Gnd1
8
NC
9
Right_ Antenna_ Low
9
Start Stop Sw Sig1
9
PEPS_ ECU_ Supply
10
NC
10
Start Stop Sw Sig2
10
PEPS_ ECU_ Supply
11
Trunk Sw Sig
11
HW_ Wake Up_ Output
11
NC
12
NC
12
HW_ Wake Up_ Input
12
NC
13
NC
13
NC
13
CAN_L
14
Co-Driver Door Handle
Sw Sig
14
NC
14
NC
15
Driver Door Handle Sw
Sig
15
ACC_ Relay_ Feedback
15
Immo_ Tell Tale
16
Front _Antenna _High
16
ACC_ Relay_ Output
16
NC
17
NC
17
NC
17
Crank_ Relay_ Output
18
Back_ Antenna_ High
18
NC
18
Crank_ Relay_ Feed
Back
19
Right_ Antenna_ High
19
IGN_Relay_ Feedback
19
NC
20
NC
20
IGN_ Relay_ Output
20
NC
