200 / 801
LV ELECTRICAL SYSTEM
114
22.3 REVERSE PARK ASSIST WITH CAMERA (IF EQUIPPED)
The rear-view camera is only an aid. It is not a replacement for your attention to your immediate
surroundings. Driver is always responsible for safe maneuvering and parking. When maneuvering or parking,
make sure that there are no persons, animals or objects in the area in which you are maneuvering."

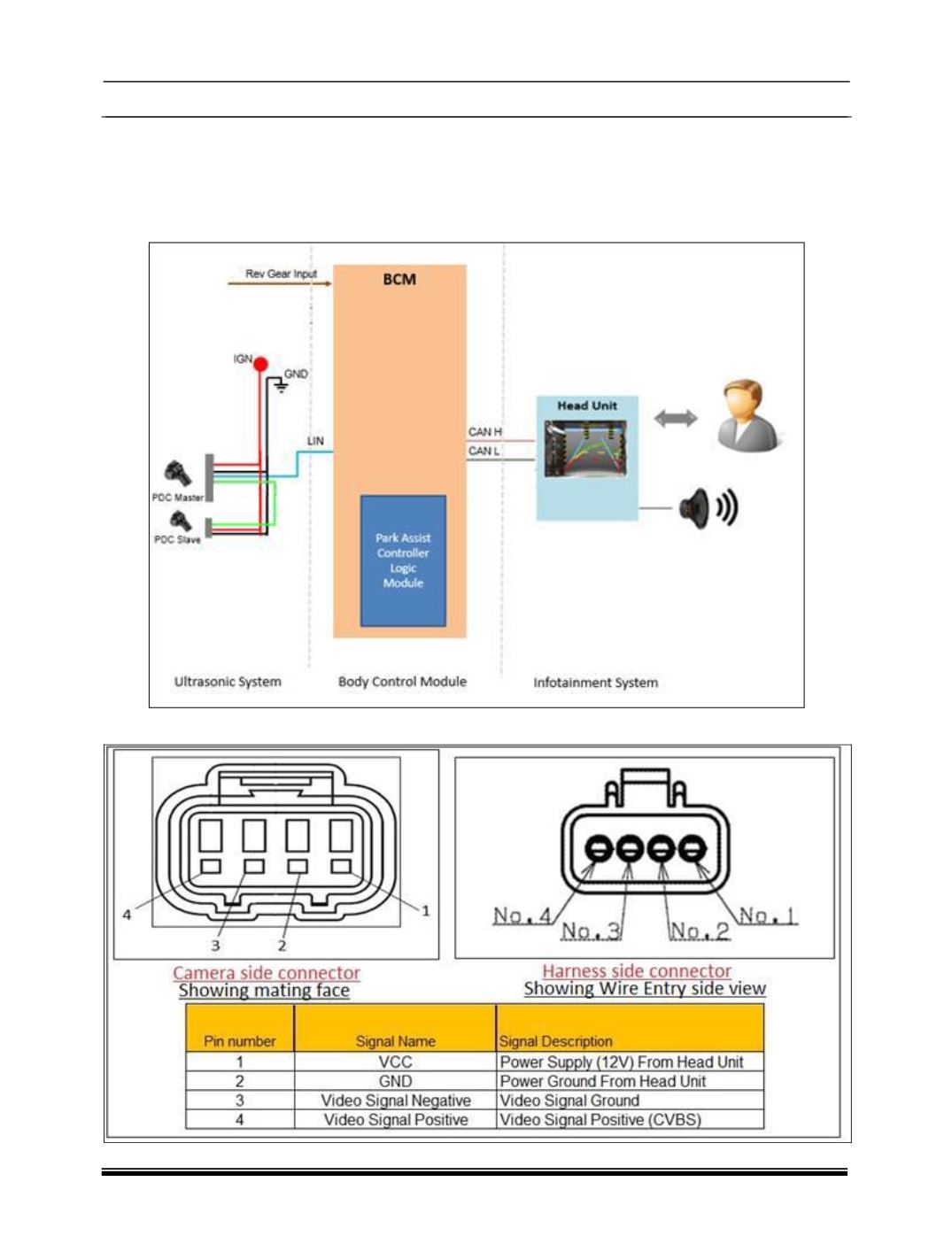

A. "Rear Park Assist System Architecture Without Controller (Through BCM)
B. Connector Details of Rear View Camera
