172 / 801
LV ELECTRICAL SYSTEM
86

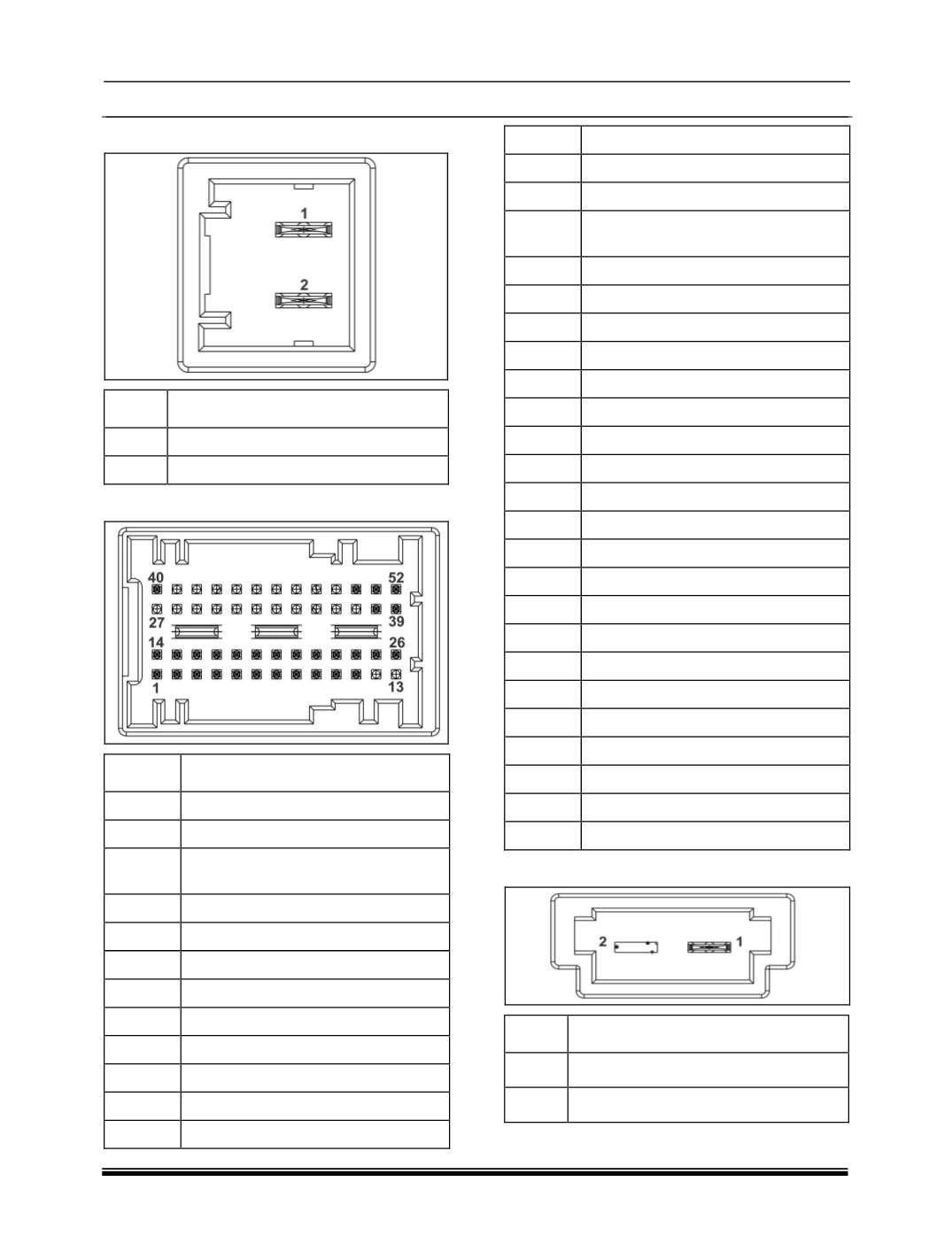

CONNECTOR C
PIN
DETAILS
1
Power Supply 2
2
Power Supply 1
CONNECTOR D
PIN
DETAILS
1
Wiper Front Low High Relay Control
2
Global Closing Signal
3
Cent Lock Internal Switch Signal /
Internal Lock Unlock Switch Signal
4
Bonnet State
5
Rear RH Door State
6
Low Beam Switch Signal
7
Wiper Front Low Speed Signal
8
Mirror Fold Unfold Switch
9
Smart Entry Wake Up Signal
10
Spare3
11
Auto Light ON Signal
12
CAN_BODY_H
13
CAN_BODY_L
14
Key Hole LED Control
15
Tailgate State
16
Central UnLock Internal Switch
Signal
17
Rear LH Door State
18
Main Beam Switch Signal
19
Wiper Front High Speed Sig
20
Cockpit dimming Signal
21
Crash Signal PWM
22
Wiper Rear Fixed Int Signal
23
ML Fail safe Switch Signal
24
Spare4
25
LIN 2
26
Batt GND 3
27 – 37 -
38
Roof Lamp LED Out
39
DRL Position Lamp control RH
40
Head Lamp High Beam Relay
41 - 46 -
47
Mirror Fold (if Applicable)
48
Mirror UnFold (if Applicable)
49
-
50
Cockpit Illumination (if Applicable)
51
Spot LED Out
52
DRL Position Lamp Control LH
CONNECTOR E
PIN
DETAILS
1
Power Supply 3
2
-
