171 / 801
LV ELECTRICAL SYSTEM
85
17
Tailgate switch Input (If Applicable)
18
Wiper Front Park Signal
19
Turn LH Switch Signal
20
Driver Door Lock Signal
21
Ignition Key State CRANK
22
Brake Light Switch Signal
23
Ignition Key State ACC
24
Wash Front Switch Signal
25
Wiper Front Switch Signal lnterm
26
Crash Signal_HW
27
Door Unlock Control Driver / Door
unlock control Tailgate
28
Hazard Switch LED Signal / Driver
window output
29
Door Lock Control All
30
Horn Signal
31
Head Lamp Low Beam Relay / Follow
me home Relay
32
Internal 5V
33
Internal GND1
34
Battery GND1
35
LIN 1
36
Wiper Front Speed Switch Signal
37
Fog Lamp Front Switch Signal
38
Ambient Light Switch Signal
39
Reverse Gear Signal
40
Wiper Front On Off Relay Control
41
Wiper Rear Relay Control
42
Door UnLock Control Others
43
Wake Up lnput
44
Front Fog Relay / Front Fog Fascia
switch telltale
45
Rear Defogger Relay Control
46
lnternal_12V
47
Battery GND 2
48
CAN_Chassis_H
49
CAN_Chassis_L
50
Fog Lamp Rear Switch Signal
51
Rear Defogger Switch Signal
52
Hazard Switch Signal

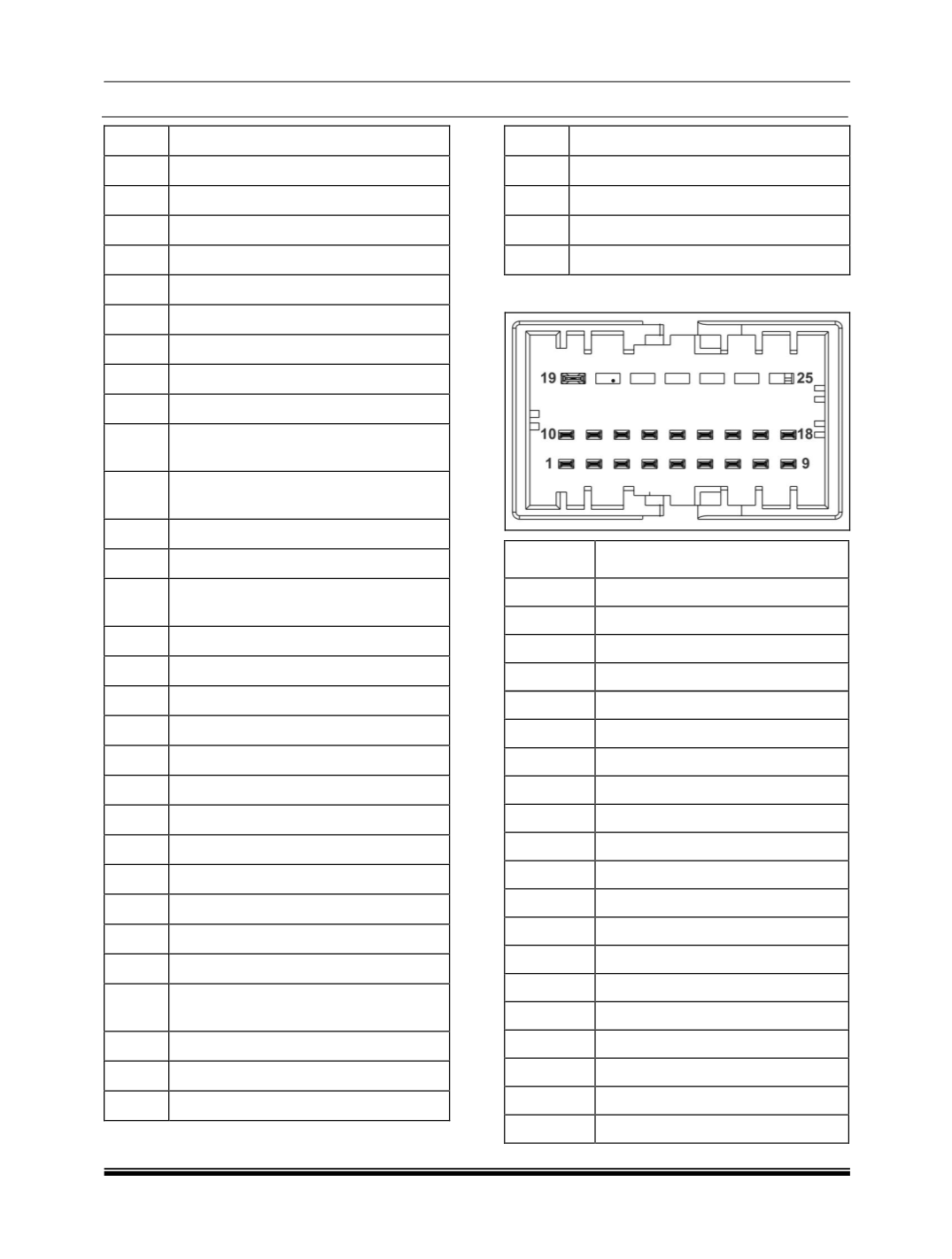

CONNECTOR B
PIN
DETAILS
1
Reverse Lamp Signal RH
2
Rear Fog Lamp Control LH
3
Front Roof Lamp Control
4
Acc Delay Control
5
Rear Fog Lamp Control RH
6
Position Lamp Control LH
7
Wash Front Pump Control
8
Turn LH lndicator
9
Brake Lamp Signal LH
10
Fog Lamp Control Front LH
11
Reverse Lamp Signal LH
12
Door Pocket LED Out
13
Footwell LED Out
14
Brake Lamp Signal RH
15
Turn RH Indicator
16
Wash Rear Pump Control
17
Position Lamp Control RH
18
Battery Saver Control
19
Fog Lamp Control Front RH
20 - 25
-
