NEXON EV SERVICE MANUAL

LV ELECTRICAL SYSTEM

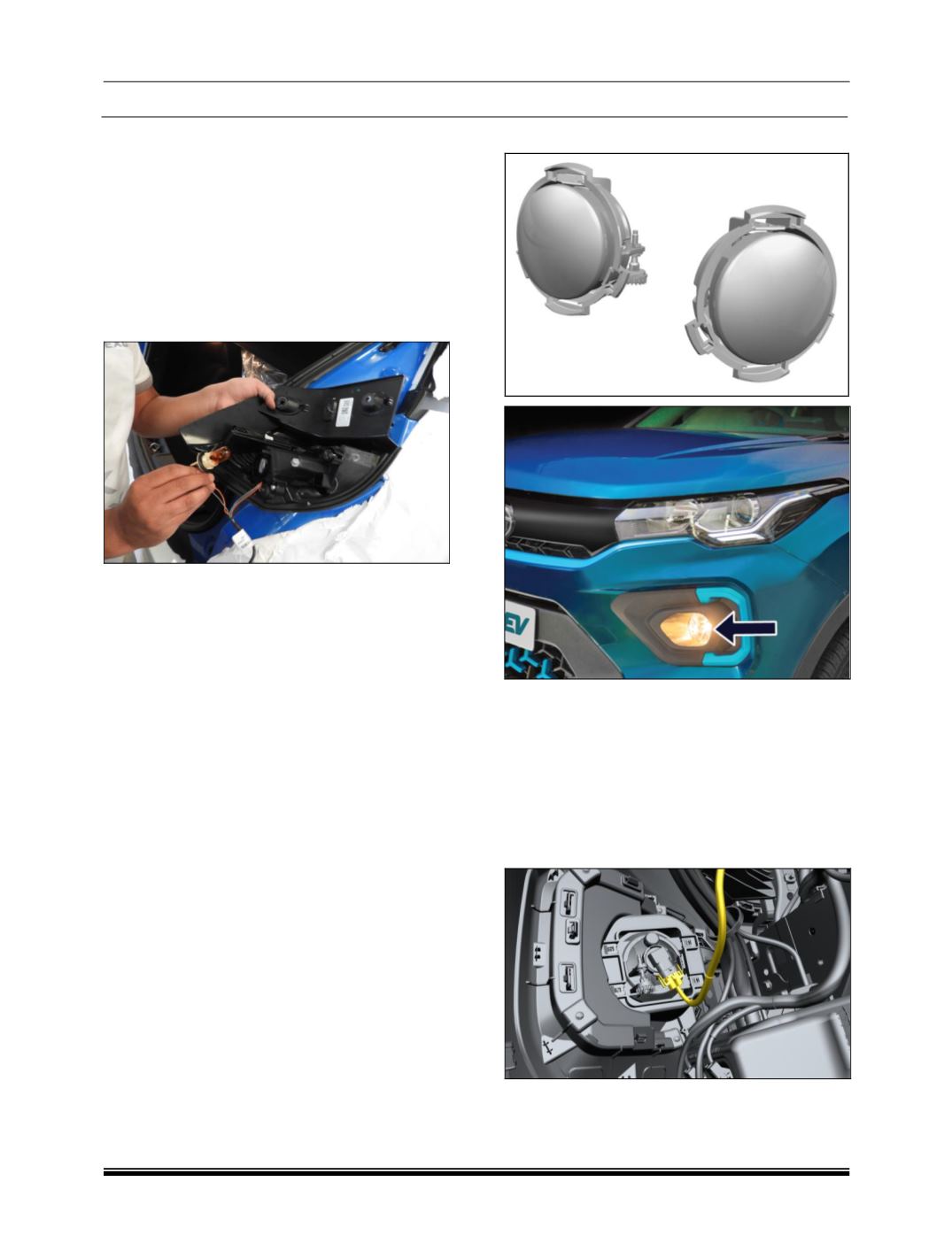

C. REMOVAL & REFITMENT OF TAILLAMP

BULBS

TURN INDICATION LAMP REMOVAL

1. Take out Body mounted tail Lamp.(For

Procedure refer Body side Tail Lamp Removal)

2. Rotate the turn signal bulb holder in anti-clock

wise direction to unlock the bulb holder.

3. Remove the bulb holder from lamp.

4. Replace the turn indication lamp.

REVERSE LAMP REMOVAL

1. Take out Tail Lamp on Tail Gate side.(For

Procedure refer Tailgate side Tail Lamp

Removal)

2. Rotate the reverse bulb holder in anti-clock

wise direction to unlock the bulb holder.

3. Remove the bulb holder from lamp.

4. Replace the reverse lamp.

3.9 FRONT FOG LAMP

The fog lamps are located in the lower part of the

front bumper. The bulb used for the fog lamp

function is a halogen H16 bulb, 12V - 19W.

Fog lamp on/off is done by using master light

switch.

REMOVAL:

1. Disconnect the electrical connection of fog

lamp.

2. Pull out for fitting the lamp housing on the

bumper.
