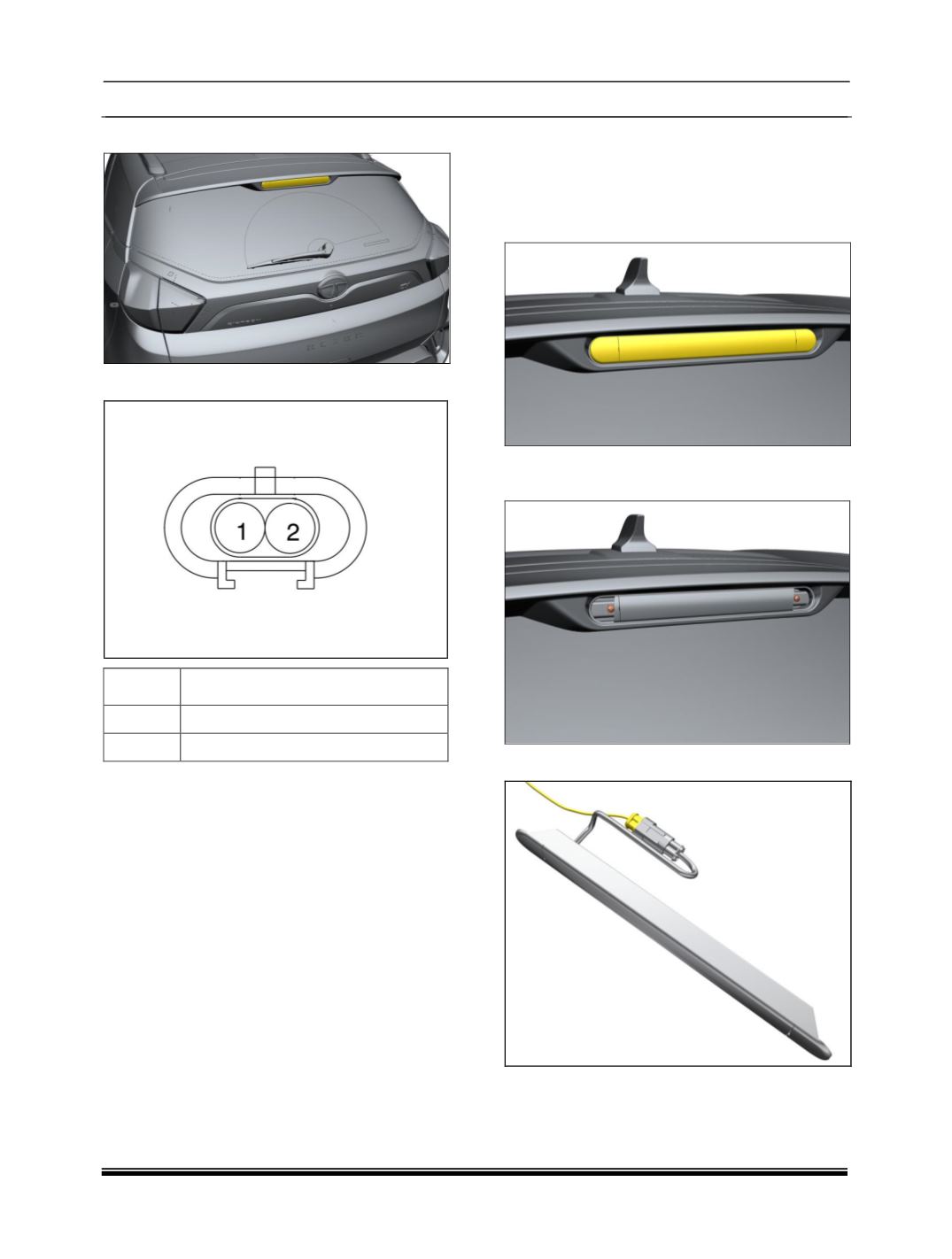

3.7 HIGH MOUNTED STOP LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
+ ve
2
Vgnd
A. REMOVAL AND REFITMENT OF HIGH
MOUNTED STOP LAMP
REMOVAL
1. Remove the cap of the high mounted stop
lamp as shown.
2. Remove the mounting screw and take out the
stop lamp.
3. Disconnect the electrical connection.
REFITMENT
Follow the removal procedure in reverse.
