25 IMMOBILIZER SYSTEM (IF APPLICABLE)
IMMOBILIZER SYSTEM DESCRIPTION (XE
VARIENT)
Immobilizer system is designed to prevent vehicle
theft by electronically disabling the engine starting
system. The engine can be started only with
vehicle’s original immobilizer ignition key which
has an electronic identification programmed
code. The electronic key communicates the
identification code to Immobilizer control unit (ICU)
when the key is turned to the “Ignition ON” position.
Immobilizer comes with two Electronic keys (E-
key), (maximum 6 E-keys are possible). The
immobilizer used is based on CAN system.
CAUTION
As CAN communication protocol doesn’t work
beyond 18V, vehicle will not start under “Jump
Start with voltage > 18 V” conditions.
SPECIFICATIONS
Operating voltage range: 8 V to 16 Vdc
Operating temperature range: -40°C to +85°C
Storage Temperature range: -40°C to +85°C
Diagnostics: KWP2000 protocol over k-line
Unlock Mechanism: CAN 2.0B based

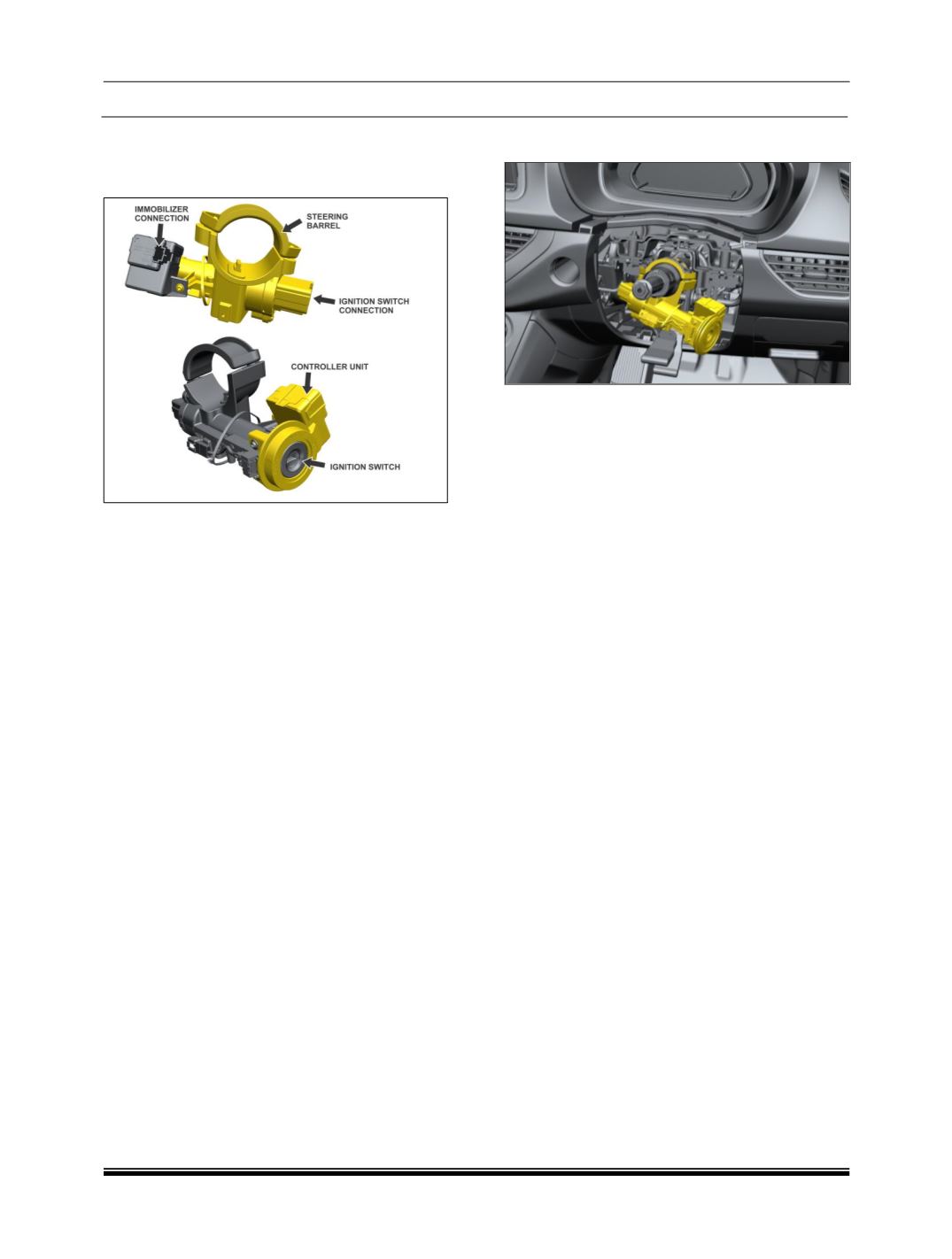

LOCATION
NOTE
As the Immobilizer PCB (located in dash board) &
Antenna PCB (located in ignition lock) are
connected without any connector, so please take
necessary precautions while removing the
immobilizer/ dashboard.
