ELECTRICAL
48
B. DIESEL VARIANT

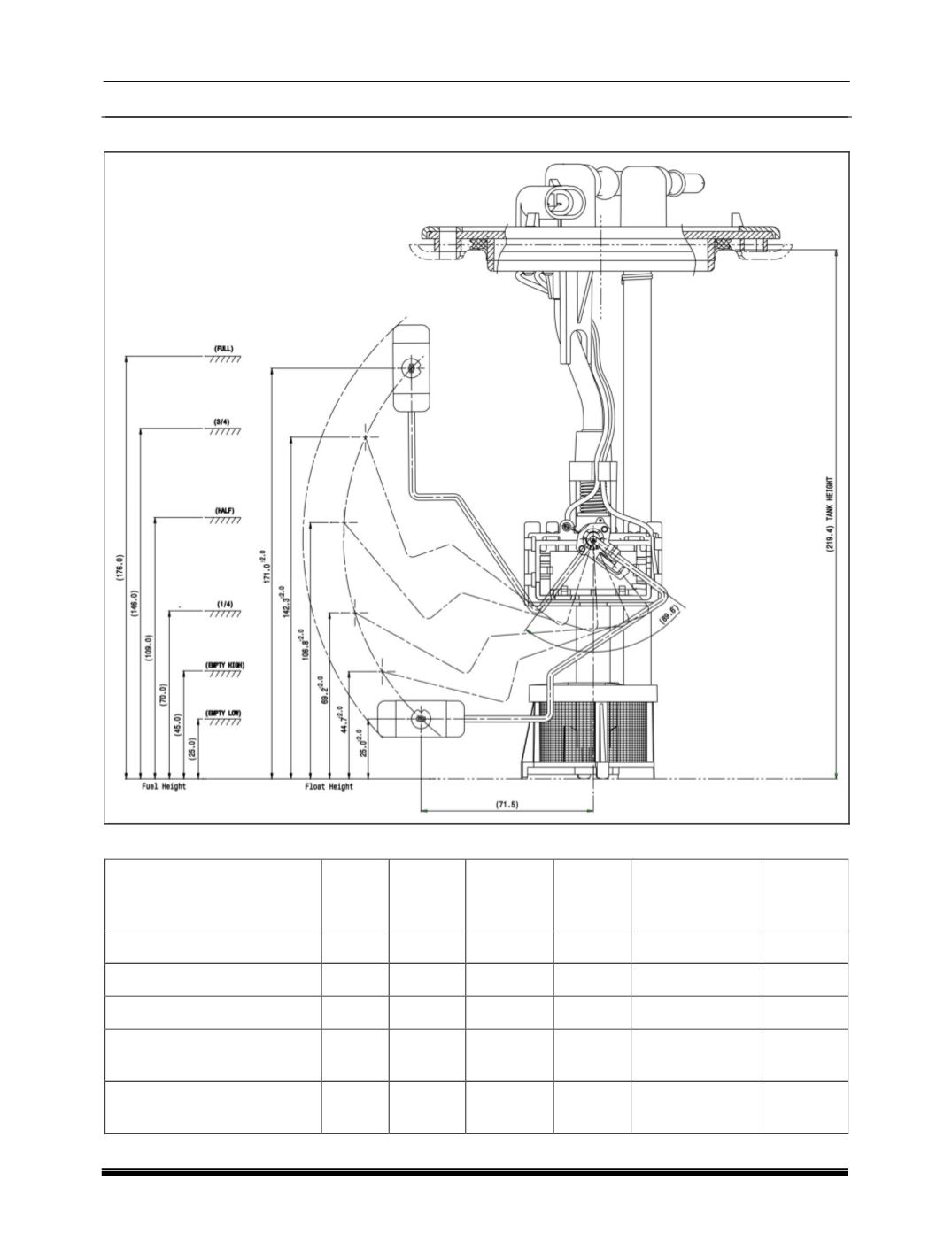

The specified resistance values and calibration details of the tank unit fuel gauge are given below:
Float Position
Full
3/4
Half
1/4
Empty High/
Low Fuel
Warning
Empty
Low
Resistance Value in Ohms
8
34
58
89
100
120
Tolerance in Ohms
± 2
± 2
± 2
± 2
± 2
± 2
Float height in mm
171.0
142.3
106.8
69.2
44.7
25
Fuel Height from tank
bottom surface in mm
176
146
109
70
45
25
Total Fuel Volume in LTRS
(Including Dead Volume)
42.6
34.24
23.68
13.56
7.4
3.0
