ELECTRICAL
8
2. Remove +VE terminal clamp.
REFITMENT
1. Refit Intelligent Battery sensor.
2. Refit Battery negative terminal.
3. Refit fuse box terminal clamp.
4. Refit terminal connection to alternator.

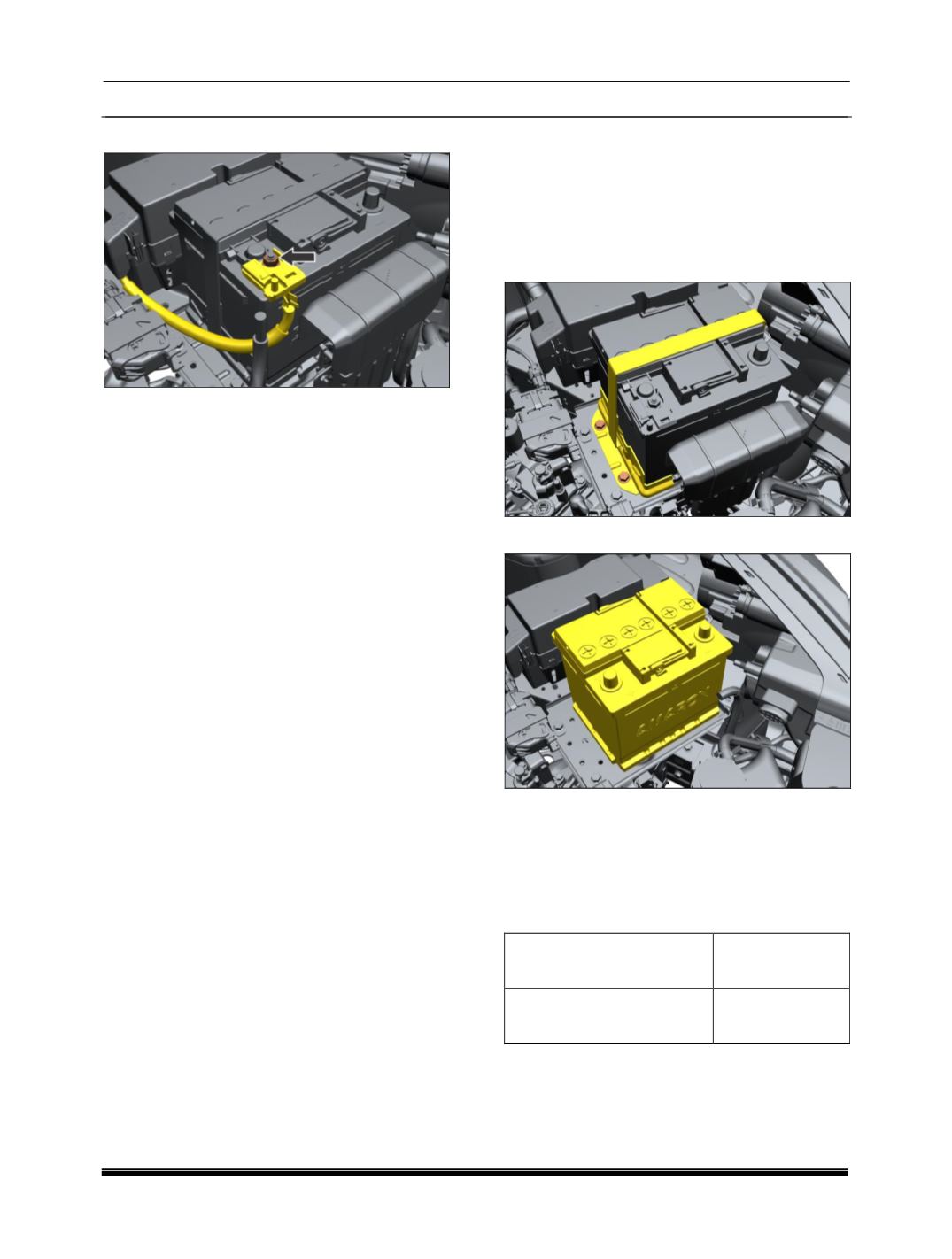

REMOVAL AND REFITMENT OF BATTERY:
REMOVAL
1. Remove Battery cable Terminals.
2. Remove Battery supporting clamp.
3. Remove battery’s bottom clamp with removal
of bolts near battery.
4. Remove Battery from battery tray.
REFITMENT
1. Put Battery on Battery tray.
2. Tighten Battery holding clamps.
3. Refit Battery cable Terminals.
BATTERY CLAMP TORQUE TABLE
APPLICATION
TORQUE
VALUE
Mounting Screw for Battery
on Clamp (M8x18)
1.2 – 1.3 Kgfm
